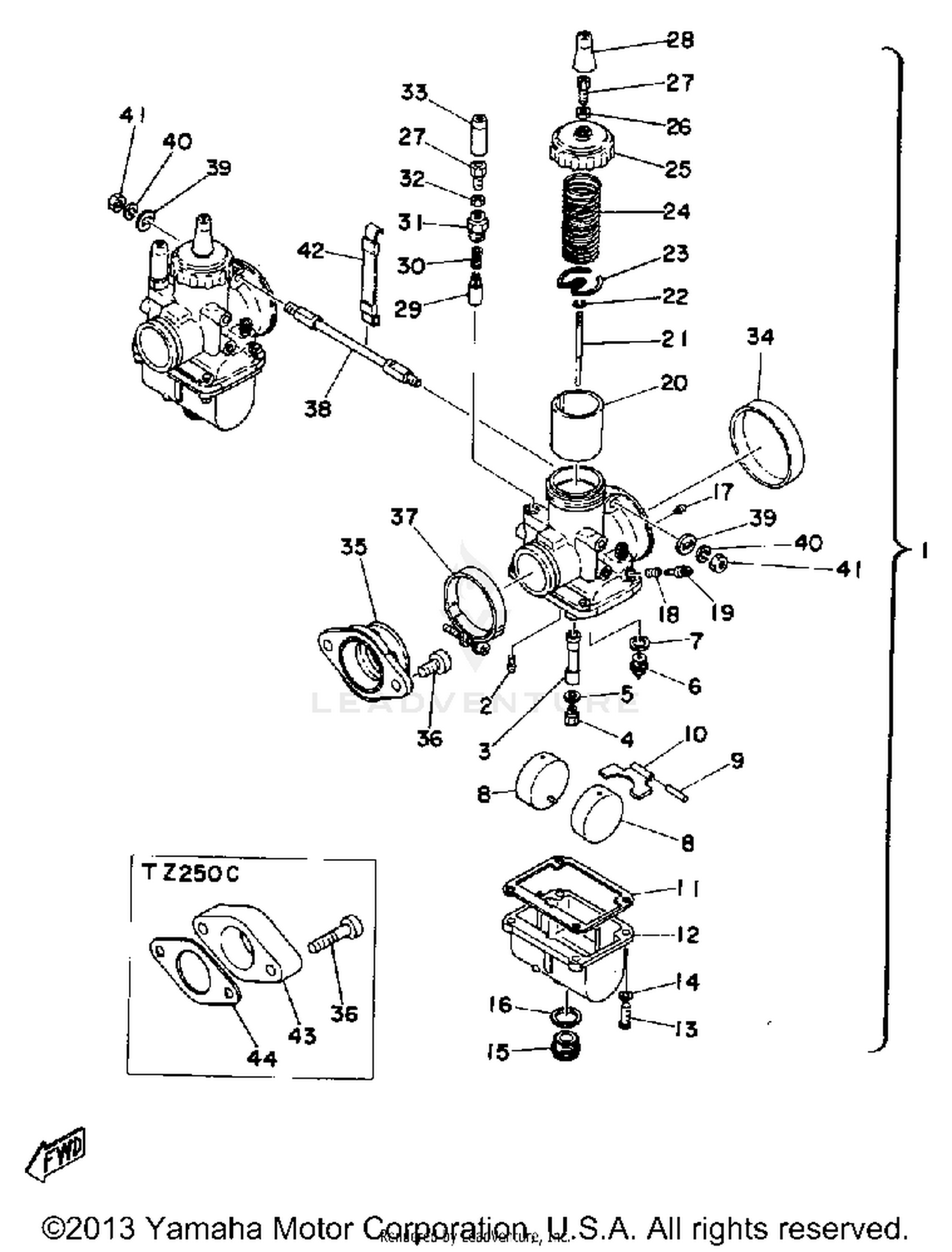

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
1H3-14101-01-00
|
$126.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
1H4-14101-00-00
|
|||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
1H4-14101-01-00
|
|||
|
Unavailable |
|||
|
#2
JET, PILOT (#70)
193-14142-70-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE, MAIN (0-2)
239-14141-32-00
|
$29.99 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#320)
137-14143-64-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#300)
137-14143-60-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#310)
137-14143-62-A1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#340)
137-14143-68-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (350)
137-14143-70-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#330)
137-14143-66-A1
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEEDLE VALVE SET (#3.3)
239-14190-33-00
Superseded by 24X-14107-33-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLOAT
310-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#
FLOAT
239-14185-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#9
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, FLOAT
239-14187-00-00
|
$1.10 | ||
|
Unavailable |
|||
|
#11
GASKET, FLOAT CHMBR
239-14184-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#
GASKET, FLOAT CHAMBER
483-14184-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY, FLOAT CHMBR 1
239-14181-00-00
|
$11.68 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, SCREW
239-14115-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLUG SCREW
239-14117-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#17
PILOT JET, AIR (2.0)
239-14172-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
AIR SCREW SET
23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE, THROTTLE 1
328-14112-25-00
|
$52.67 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
328-14112-30-00
|
$47.71 | ||
|
Unavailable |
|||
|
#21
NEEDLE
239-14116-09-00
|
$7.68 | ||
|
Unavailable |
|||
|
#22
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, SPRING
239-14136-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#24
SPRING, THRTL VALVE
239-14131-00-00
|
$6.90 | ||
|
Unavailable |
|||
|
#25
TOP, MIXING CHAMBER
239-14158-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#26
NUT,CABLE ADJ
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CABLE ADJUST SCREW SET
12G-14106-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP
802-14169-00-00
Superseded by 8A7-14169-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUNGER, STARTER
1G8-14171-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#
PLUNGER, STARTER
58E-14171-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
COIL, SPRING
127-14135-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP, PLUNGER
127-14174-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, PLUNGER
353-14138-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, PLUNGER CAP
637-14173-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
CAP
174-14169-01-00
|
$4.42 | ||
|
Unavailable |
|||
|
#34
COVER, MIXING
240-14157-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#35
MANIFOLD, INTAKE
328-13555-01-00
|
$51.99 | ||
|
Unavailable |
|||
|
#36
BOLT
91316-08016-00
Superseded by 91317-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
91316-08035-00
Superseded by 91317-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP, HOSE
90460-49058-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, ROD
240-14486-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#39
WASHER, SPEC''L SHAP
90209-10033-00
|
$2.65 | ||
|
Unavailable |
|||
|
#40
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOLDER
294-14491-00-00
|
$15.04 | ||
|
Unavailable |
|||
|
#43
JOINT, CARBURETOR
329-13565-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#44
GASKET,MANIFOLD
329-13556-00-00
Superseded by 329-13556-01-00
|
$2.30 | ||
|
Unavailable |
|||
