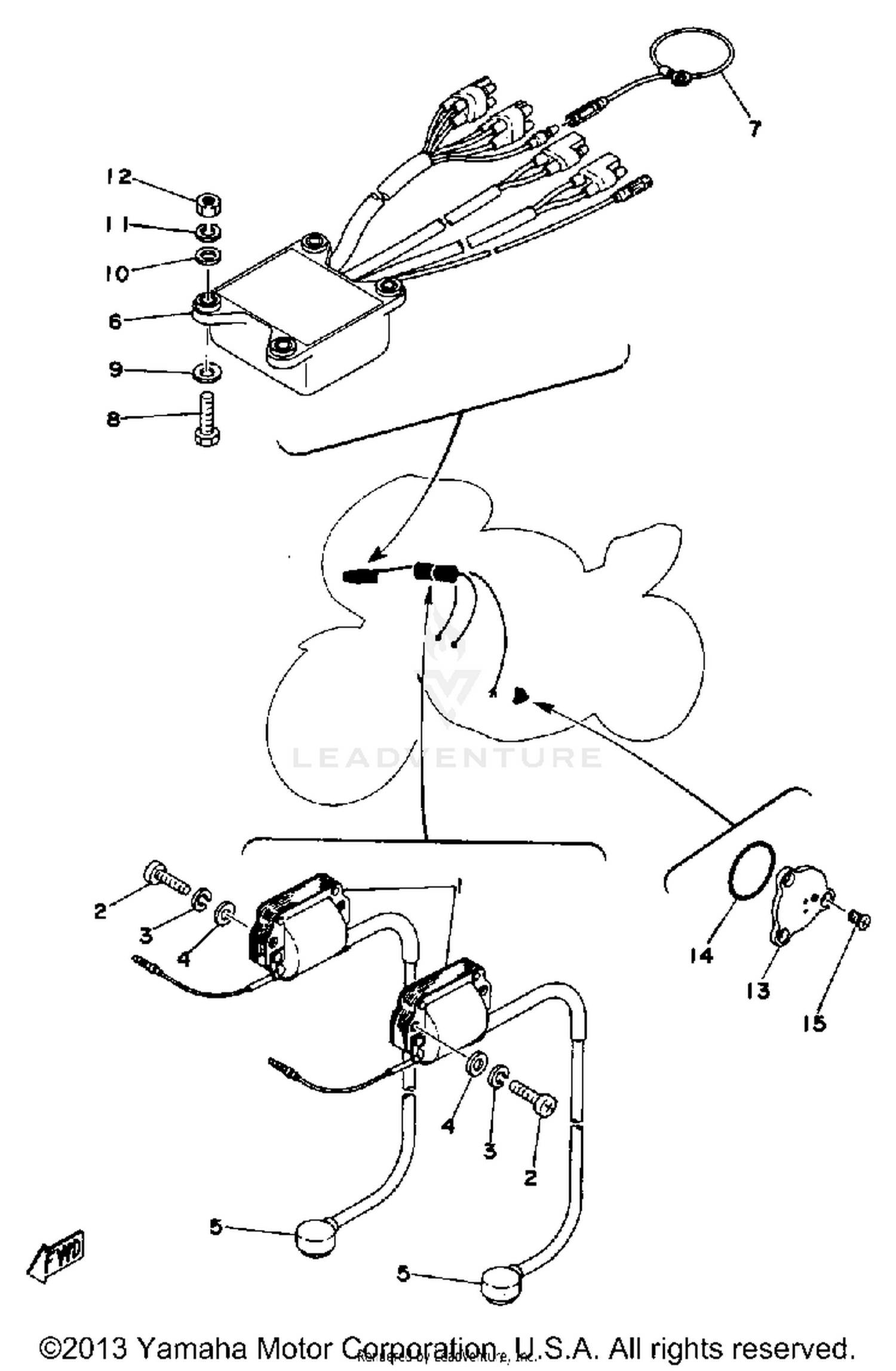

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
400-82310-30-00
|
$50.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSEMBLY
294-82370-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#
PLUG CAP ASY
512-82370-10-00
Superseded by 7KA-82370-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CDI UNIT ASSEMBLY
328-85540-10-00
|
$460.99 | ||
|
Unavailable |
|||
|
#7
WIRE, MINUS LEAD
558-82116-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEUTRAL SWITCH ASSEMBLY
1L9-82540-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-29147-00
Superseded by 93210-29196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
