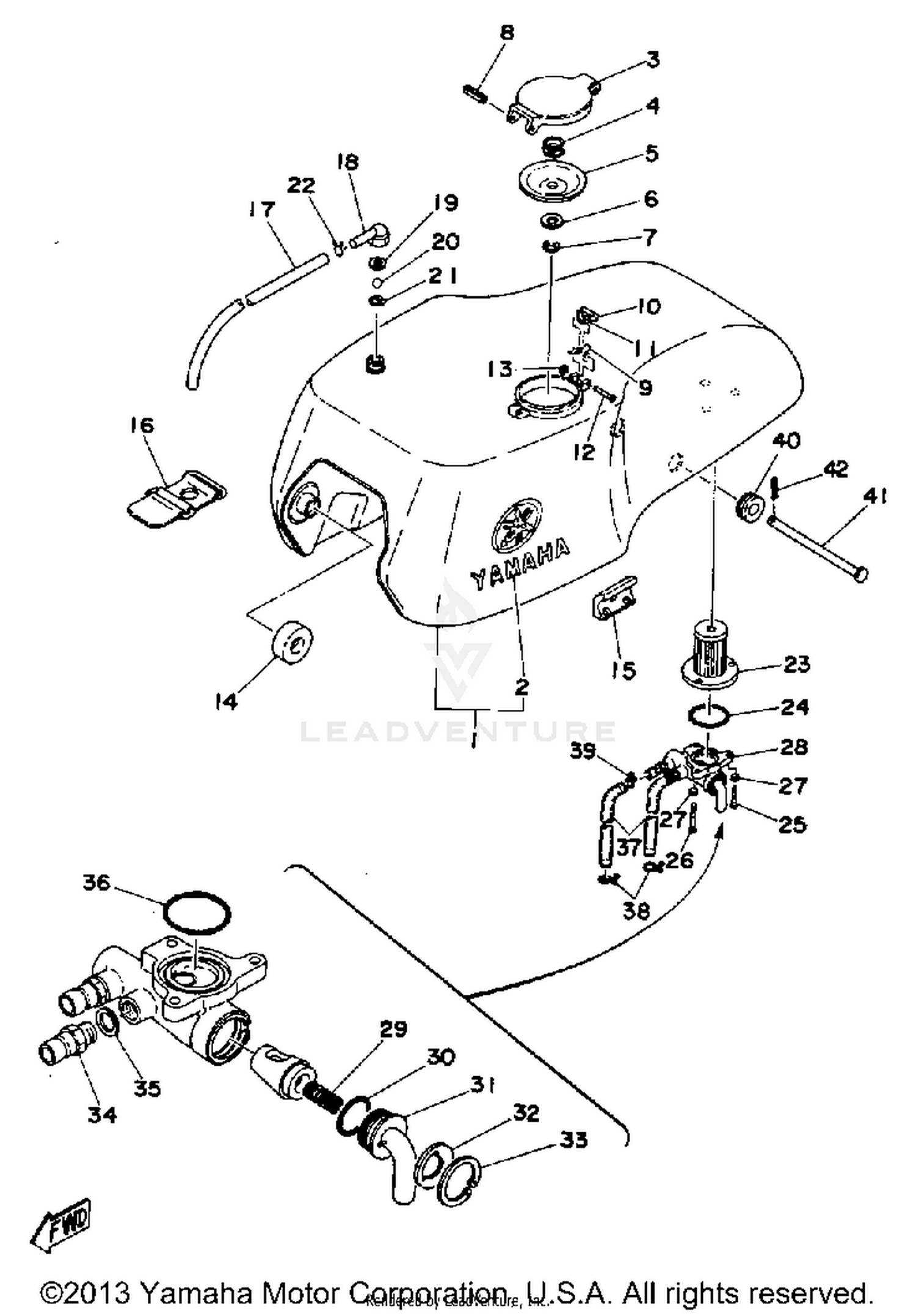

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1H3-24110-02-01
|
$570.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 1
240-24161-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#3
BODY, CAP
294-24611-00-00
|
$67.50 | ||
|
Unavailable |
|||
|
#4
SPRING, COMPRESSION
90501-20130-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CAP
294-24612-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN,SPRING
91609-30020-00
Superseded by 91690-30020-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TORSION (256-24637-00)
90508-08223-00
|
$3.80 | ||
|
Unavailable |
|||
|
#10
HOOK
256-24628-00-00
|
$10.20 | ||
|
Unavailable |
|||
|
#11
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SPEC''L SHAPE
90249-03016-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 1
240-24181-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, TNK FITTING 1
240-24173-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE
90446-06007-00
|
$2.10 | ||
|
Unavailable |
|||
|
#18
NUT, CAP
143-24681-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#19
GASKET
90430-10028-00
|
$1.25 | ||
|
Unavailable |
|||
|
#20
BALL
143-24684-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#21
CLIP, BALL HOLDER
143-24685-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#22
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
STRAINER
294-24167-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#24
O-RING
93210-38146-00
|
$1.54 | ||
|
Unavailable |
|||
|
#25
SCRW, FLTHD
98701-04020-00
Superseded by 98780-04520-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT HEAD
98701-04035-00
|
$0.94 | ||
|
Unavailable |
|||
|
#27
WASHER, EX.TOOTH
92901-04500-00
|
$0.75 | ||
|
Unavailable |
|||
|
#28
FUEL COCK ASSEMBLY 1
240-24500-01-00
|
$74.99 | ||
|
Unavailable |
|||
|
#29
SPRING
145-24529-00-00
|
$0.15 | ||
|
Unavailable |
|||
|
#30
SEAL, COCK
240-24534-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#31
LEVER, COCK
240-24524-00-00
|
$10.64 | ||
|
Unavailable |
|||
|
#32
PLATE, LVR FITTING
240-24525-00-00
|
$0.87 | ||
|
Unavailable |
|||
|
#33
BRACKET, FUEL COCK
240-24544-00-00
|
$1.44 | ||
|
Unavailable |
|||
|
#34
NIPPLE
240-24537-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#35
GASKET
240-24528-00-00
|
$1.38 | ||
|
Unavailable |
|||
|
#36
GASKET
145-24512-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#37
HOSE
90445-11313-00
|
$1.83 | ||
|
Unavailable |
|||
|
#38
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
GROMMET
90480-20131-00
Superseded by 90480-20527-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
UNAVAILABLE IN PRICE BOOK
91701-05138-00
|
|||
|
Unavailable |
|||
|
#42
CLIP
90468-10050-00
|
$2.85 | ||
|
Unavailable |
|||
