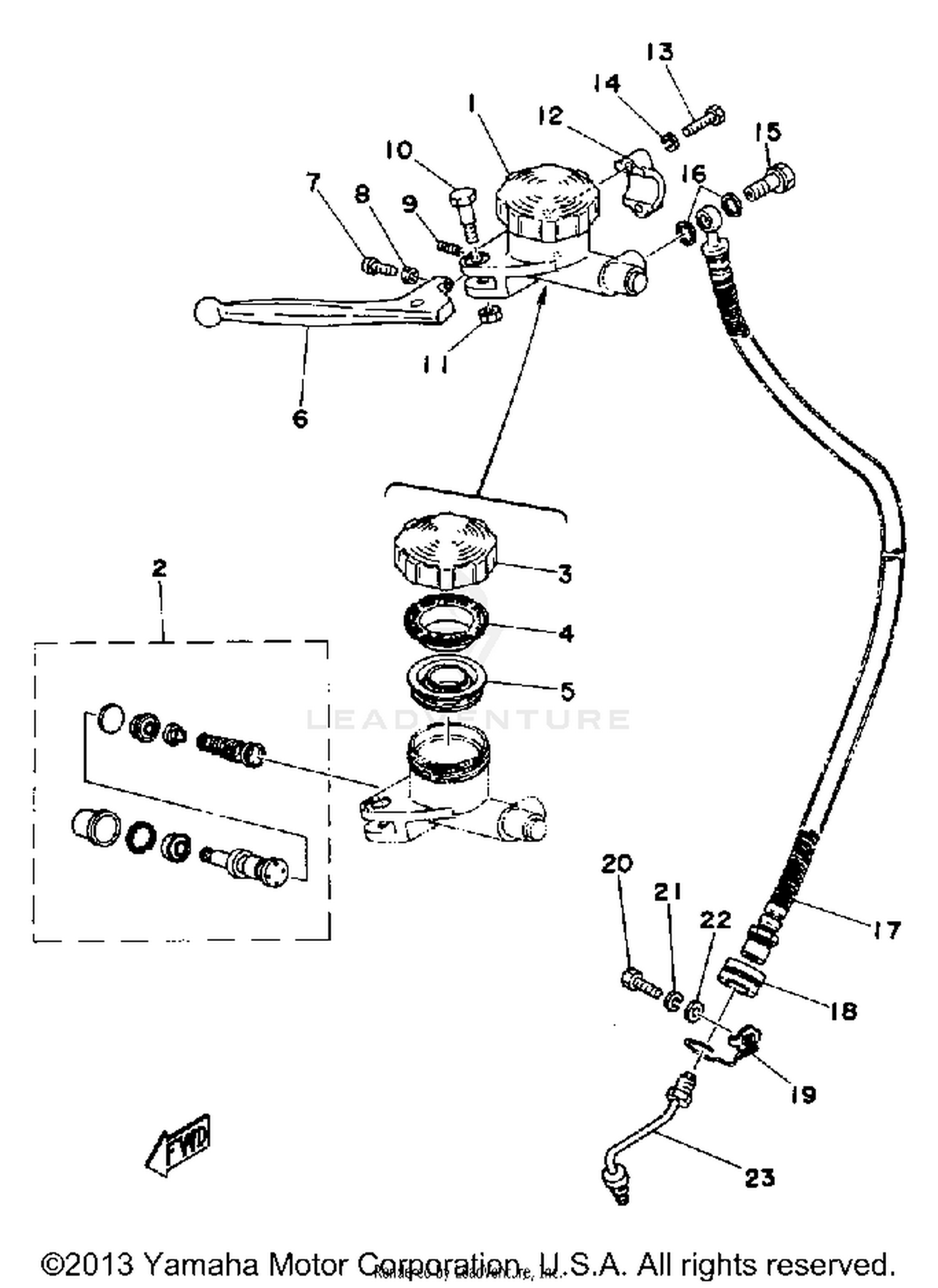

Master Cylinder - Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
1H3-25850-00-00
|
$422.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER (REF. N
535-W0041-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#3
CAP, RESERVOIR
409-25852-00-00
|
$74.21 | ||
|
Unavailable |
|||
|
#4
BUSH, DIAPHRAGM
409-25855-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#5
DIAPHRAGM RESERVOR
409-25854-00-00
|
$22.32 | ||
|
Unavailable |
|||
|
#6
LEVER R
341-83922-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#7
SCREW
90146-06005-00
|
$3.00 | ||
|
Unavailable |
|||
|
#8
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-06465-00
Superseded by 90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, MASTER
1J3-25867-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#13
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
UNAVAILABLE IN PRICE BOOK
409-25873-04-00
|
|||
|
Unavailable |
|||
|
#18
PROTECTOR, BRAKE HOSE
341-25881-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRKE HOSE 1
1H3-25875-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#20
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, BRAKE
1H3-25871-00-00
|
$4.84 | ||
|
Unavailable |
|||
