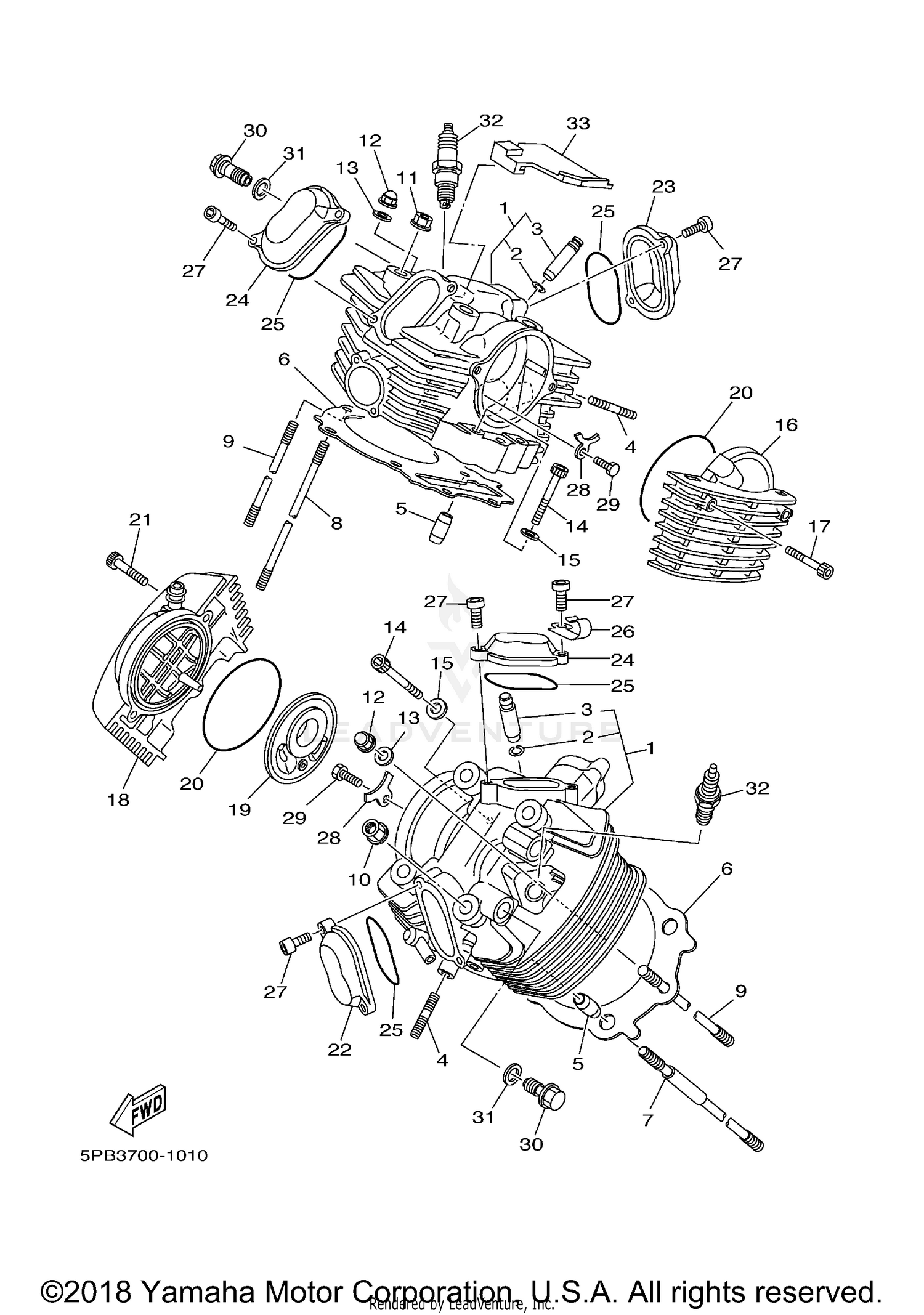

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5YS-11101-00-00
Superseded by 5YS-11101-01-00
|
$464.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CIRCLIP
93440-14086-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, IN./EX. VALVE
4X7-11133-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
95617-08625-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91817-30011-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD 1
5EL-11181-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CYLINDER HOLDING 3
4X7-11363-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-12469-00
Superseded by 90116-12350-00
|
$11.49 | ||
|
Unavailable |
|||
|
#9
BOLT, STUD
90116-10344-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-12326-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-12325-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, CROWN
90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-101A4-00
Superseded by 90201-102G9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91314-08050-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, CYLINDER HEAD SIDE 4
5YS-1111H-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD SIDE 1
5YS-11185-00-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, BREATHER
42X-11165-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-92448-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
COVER, CYLINDER HEAD SIDE 2
42H-11186-02-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, CYLINDER HEAD SIDE 3
5EL-11187-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, CYLINDER HEAD SIDE 3
4X7-11187-02-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-62446-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90465-10029-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE
4X7-1111F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97017-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, UNION
90401-16002-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET
90430-17168-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BPR7ES NGK - 4/PACK
NGK-BPR7E-S0-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#33
COVER
5EL-1112M-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
