2009 Yamaha V STAR 1100 CLASSIC Fuel Tank OEM Parts

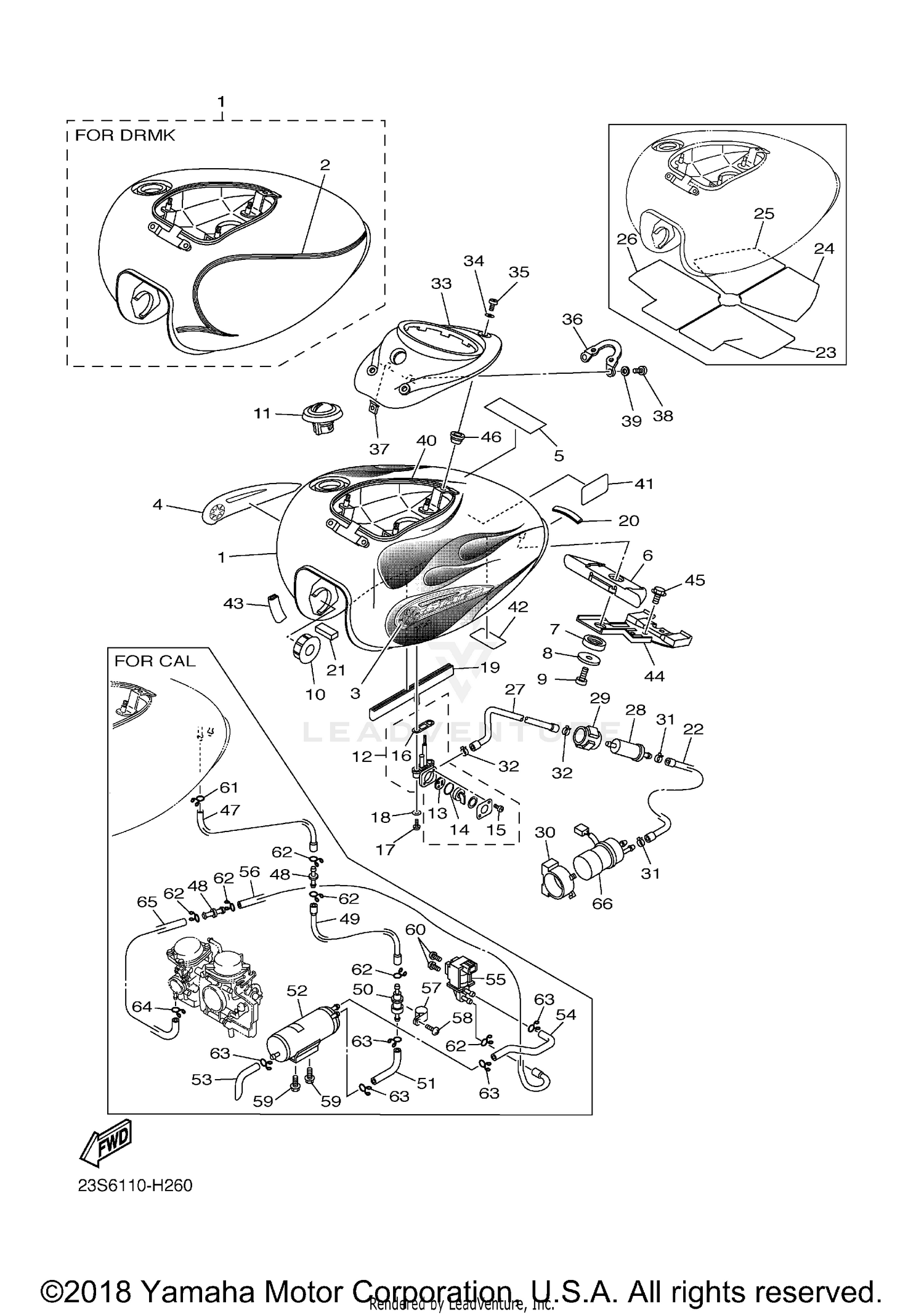

Fuel Tank Diagram

Item	MSRP	Qty
#1 FUEL TANK COMP. 5EL-Y2410-A2-X3	$719.99
Available to order. Add to View Price
#1 FUEL TANK COMP. 5EL-Y2410-A2-X6	$719.99
Available to order. Add to View Price
#1 FUEL TANK COMP. 5EL-Y2410-V2-W7	$726.99
Available to order. Add to View Price
#1 FUEL TANK COMP. 5EL-Y2410-V2-W8	$719.99
Available to order. Add to View Price
#2 GRAPHIC SET 5YS-24240-A0-00	$214.99
Available to order. Add to View Price
#3 EMBLEM 23S-2416B-00-00 Superseded by 23S-2416B-01-00	$76.99
Available to order. Add to View Price
#4 EMBLEM 23S-2417B-00-00 Superseded by 23S-2417B-01-00	$76.99
Available to order. Add to View Price
#5 LABEL, CAUTION 5GK-2118K-00-00	$6.49
Available to order. Add to View Price
#6 DAMPER, LOCATING 2 5EL-24182-00-00	$24.99
Available to order. Add to View Price
#7 DAMPER, LOCATING 3 4TR-24183-00-00	$6.49
Available to order. Add to View Price
#8 WASHER, PLATE 90201-060S9-00 Superseded by 90201-06110-00	$7.49
Available to order. Add to View Price
#9 BOLT, BUTTON HEAD 92017-06012-00	$6.49
Available to order. Add to View Price
#10 DAMPER, LOCATING 1 2YK-24181-10-00 Superseded by 4H7-24181-00-00	$6.49
Available to order. Add to View Price
#11 CAP ASSY 5BN-24602-02-00 Superseded by 5BN-24602-10-00	$198.99
Available to order. Add to View Price
#11 CAP ASSY 4NK-24602-12-00 Superseded by 4NK-24602-20-00	$124.99
Available to order. Add to View Price
#12 FUEL COCK ASSY 1 4WM-24500-02-00 Superseded by 4WM-24500-10-00	$156.99
Available to order. Add to View Price
#13 VALVE PACKING 3AC-24523-00-00	$12.49
Available to order. Add to View Price
#14 SEAL, COCK 3AJ-24534-01-00	$10.49
Available to order. Add to View Price
#15 SCREW, PAN HEAD 97801-03008-00 Superseded by 98580-03008-00	$3.35
Available to order. Add to View Price
#16 O-RING 4X8-24512-00-00	$8.49
Available to order. Add to View Price
#17 SCREW 90149-06011-00	$5.49
Available to order. Add to View Price
#18 WASHER, PLATE 90202-05193-00 Superseded by 90202-05187-00	$1.30
Available to order. Add to View Price
#19 MOLE, SIDE COVER 1 1FK-2171L-00-00	$22.99
Available to order. Add to View Price
#20 MOLD, FUEL TANK 5EL-24188-00-00	$9.49
Available to order. Add to View Price
#21 DAMPER 3XV-21717-00-00	$3.15
Available to order. Add to View Price
#22 PIPE, FUEL 1 5EL-24311-10-00	$50.99
Available to order. Add to View Price
#23 DAMPER, PLATE 1 5YS-2414H-00-00	$27.99
Available to order. Add to View Price
#24 DAMPER, PLATE 2 5YS-2414J-00-00	$27.99
Available to order. Add to View Price
#25 DAMPER, PLATE 3 5YS-2414K-00-00	$27.99
Available to order. Add to View Price
#26 DAMPER, PLATE 4 5YS-2414N-00-00	$27.99
Available to order. Add to View Price
#27 PIPE 3 5EL-24313-10-00	$58.99
Available to order. Add to View Price
#28 FILTER ASSY 1FK-24560-10-00	$30.99
Available to order. Add to View Price
#29 UNAVAILABLE IN PRICE BOOK 1FK-24566-00-00	$25.99
Available to order. Add to View Price
#30 BAND 1 4EB-24398-00-00	$27.99
Available to order. Add to View Price
#31 CLIP 90467-12053-00 Superseded by 90467-11044-00	$7.49
Available to order. Add to View Price
#32 CLIP, SCISSOR 90467-11028-00	$5.65
Available to order. Add to View Price
#33 COVER, TOP 5EL-2171A-00-00	$161.99
Available to order. Add to View Price
#34 WASHER, PLATE 90202-05180-00	$9.49
Available to order. Add to View Price
#35 BOLT,HEX. SOCKET BUT 90110-05201-00 Superseded by 90111-05059-00	$2.00
Available to order. Add to View Price
#36 BRACKET, SEAT 5EL-2412F-00-00	$7.49
Available to order. Add to View Price
#37 NUT, SPRING 90183-05061-00	$5.49
Available to order. Add to View Price
#38 SCREW, PAN HEAD 98507-05012-00 Superseded by 98517-05012-00	$4.45
Available to order. Add to View Price
#39 WASHER, PLATE 92907-05600-00	$3.55
Available to order. Add to View Price
#40 SEAL 5EL-2414G-00-00	$7.49
Available to order. Add to View Price
#41 SEAL 4DN-21268-00-00	$7.49
Available to order. Add to View Price
#42 SEAL 1 3SP-21732-00-00	$16.99
Available to order. Add to View Price
#43 MOLD, FUEL TANK 5EL-24188-00-00	$9.49
Unavailable
#44 PLATE, FITTING 5EL-2411F-00-00	$46.99
Available to order. Add to View Price
#45 BOLT, FLANGE 95807-08012-00 Superseded by 95817-08012-00	$5.49
Available to order. Add to View Price
#46 NUT 90179-05009-00	$5.49
Available to order. Add to View Price
#47 PIPE 10 5EL-24321-10-00	$76.99
Available to order. Add to View Price
#48 JOINT 4XY-14568-00-00	$6.49
Available to order. Add to View Price
#49 PIPE 2 5EL-24312-20-00	$115.99
Available to order. Add to View Price
#50 ROLL OVER VALVE ASSY 5RB-24180-00-00	$114.99
Available to order. Add to View Price
#51 HOSE 90445-11056-00	$7.49
Available to order. Add to View Price
#52 CANISTER ASSY 5EL-24170-00-00	$346.99
Available to order. Add to View Price
#53 PIPE 6 5EL-24316-10-00	$26.99
Available to order. Add to View Price
#54 PIPE 7 5EL-24317-10-00	$66.99
Available to order. Add to View Price
#55 VALVE, OUTER VENT CONTROL 2 4WM-14896-00-00	$98.03
Available to order. Add to View Price
#56 PIPE 5 5EL-24315-10-00	$152.99
Available to order. Add to View Price
#57 CLAMP 90461-15139-00 Superseded by 90464-15014-00	$3.10
Available to order. Add to View Price
#58 SCREW, TRUSS HEAD TAPPING 97707-50016-00	$2.05
Available to order. Add to View Price
#59 BOLT, FLANGE 90105-06446-00 Superseded by 95817-06012-00	$1.35
Available to order. Add to View Price
#60 SCREW, PAN HEAD 90150-05040-00 Superseded by 98507-05008-00	$3.35
Available to order. Add to View Price
#61 CLIP 90467-08075-00 Superseded by 90467-08021-00	$7.49
Available to order. Add to View Price
#62 CLIP 90467-09103-00 Superseded by 90467-090A2-00	$4.15
Available to order. Add to View Price
#63 CLIP 90467-10041-00 Superseded by 90467-100A1-00	$6.49
Available to order. Add to View Price
#64 CLIP 90467-08017-00	$9.49
Available to order. Add to View Price
#65 PIPE 11 5EL-24322-10-00	$55.99
Available to order. Add to View Price
#66 FUEL PUMP COMP. 5KS-13907-00-00 Superseded by 5KS-13907-01-00	$163.99
Available to order. Add to View Price
