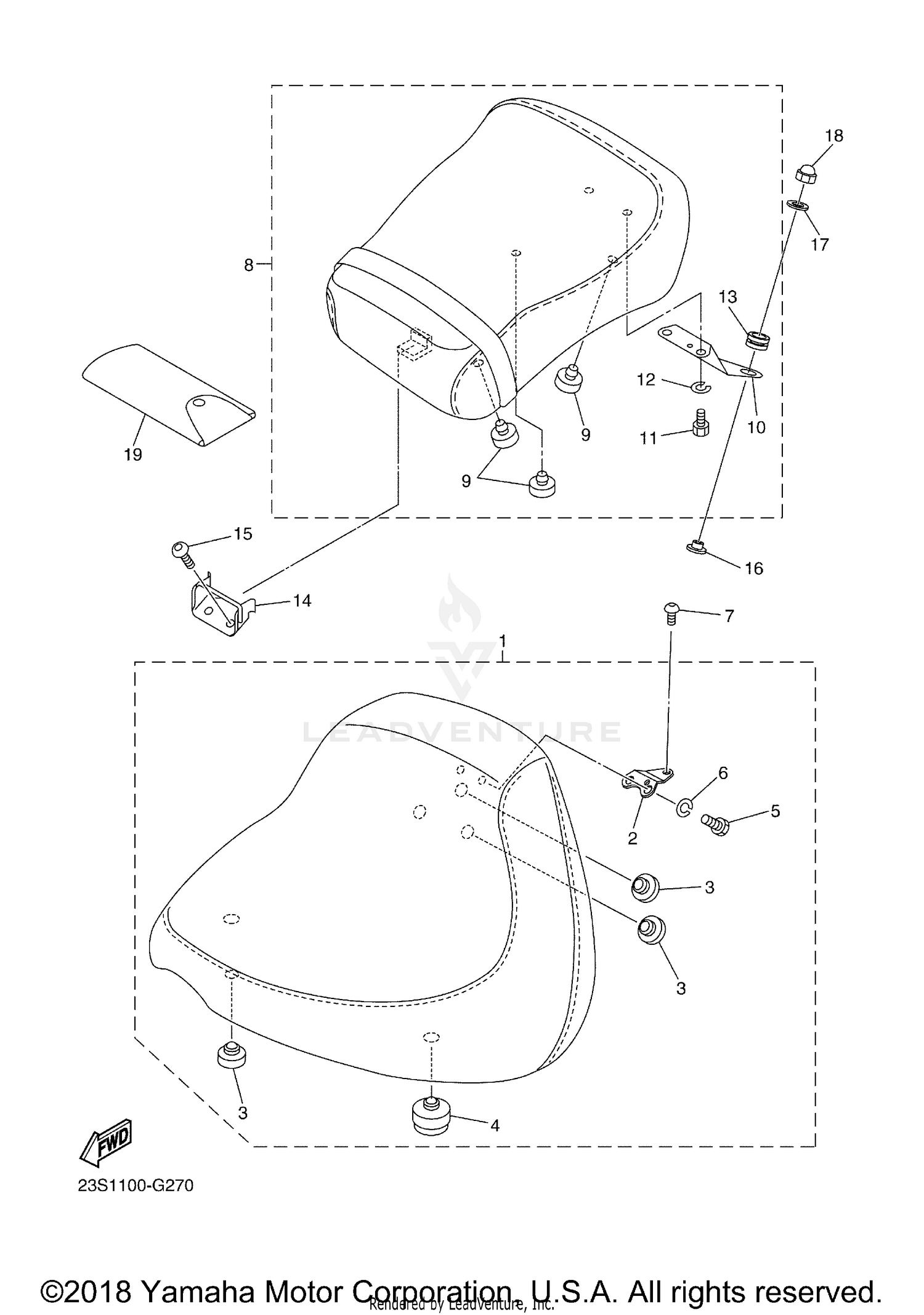

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5KS-24710-00-00
|
$396.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SEAT LEVER 1
5KS-2475H-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD, SEAT
1T4-24741-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, BUTTON HEAD
92014-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANDEM SEAT ASSY
5KS-24750-31-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
BRACKET, SEAT LEVER 2
5YS-2475J-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#13
GROMMET
5YS-24742-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET
5KS-2475N-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR 1
5YS-2471N-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-08042-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CROWN
90176-08002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
TOOL KIT
5EL-28100-10-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
