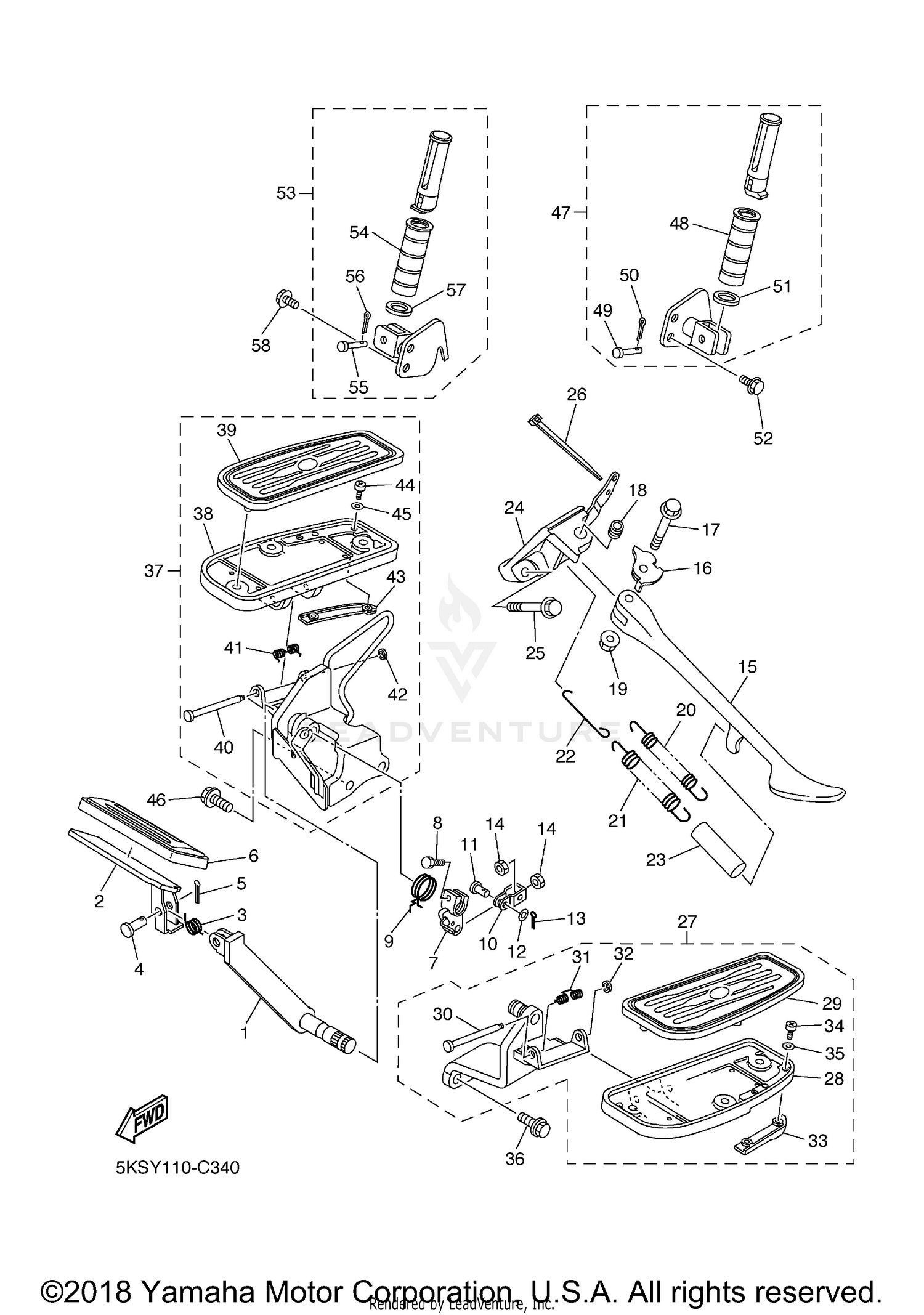

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5KS-27211-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, BRAKE
4NK-27242-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-18023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
91702-06022-00
Superseded by 91701-06022-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
4NK-27285-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
5EL-27262-00-00
Superseded by 5EL-27262-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97004-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, RETURN
5EL-27216-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
4BP-27222-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Unavailable |
|||
|
#14
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAND, SIDE
4KU-27311-13-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
5EL-27322-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-1003G-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, TENSION
90506-23490-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TENSION
90506-29507-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LINK, SIDE STAND
5EL-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE (L60)
90445-16641-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, SIDE STAND
5EL-27321-00-00
|
$268.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-10157-00
Superseded by 90105-10158-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
FRONT FOOTREST ASSY (LEFT)
5KS-27410-10-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
FOOTREST
4NK-27451-10-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, FOOTREST
4XY-27413-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHAFT
3D8-27427-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, RETURN
4NK-27426-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
MOLE 1
4WM-27496-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
90157-05095-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, WASHER BASED
90105-102A3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
FRONT FOOTREST ASSY (RIGHT)
5KS-27420-10-00
|
$287.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST
4NK-27461-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, FOOTREST
4XY-27423-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SHAFT
3D8-27427-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
SPRING, RETURN
4NK-27426-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#42
CIRCLIP
99001-06600-00
|
$0.95 | ||
|
Unavailable |
|||
|
#43
MOLE 2
4WM-27497-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, PAN HEAD
90157-05095-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Unavailable |
|||
|
#45
WASHER
92907-05200-00
|
$4.20 | ||
|
Unavailable |
|||
|
#46
BOLT, WASHER BASED
90105-102A3-00
|
$9.49 | ||
|
Unavailable |
|||
|
#47
REAR FOOTREST ASSY 1
5EL-27430-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
COVER, REAR FOOTREST
4WM-27433-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
PIN, CLEVIS
91701-06032-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Unavailable |
|||
|
#51
WASHER, PLATE
90201-210U0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, WASHER BASED
90105-082A5-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#53
REAR FOOTREST ASSY 2
5EL-27440-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
COVER, REAR FOOTREST
4WM-27433-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#55
PIN, CLEVIS
91701-06032-00
|
$8.49 | ||
|
Unavailable |
|||
|
#56
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Unavailable |
|||
|
#57
WASHER, PLATE
90201-210U0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#58
BOLT, WASHER BASED
90105-082A5-00
|
$3.30 | ||
|
Unavailable |
|||
