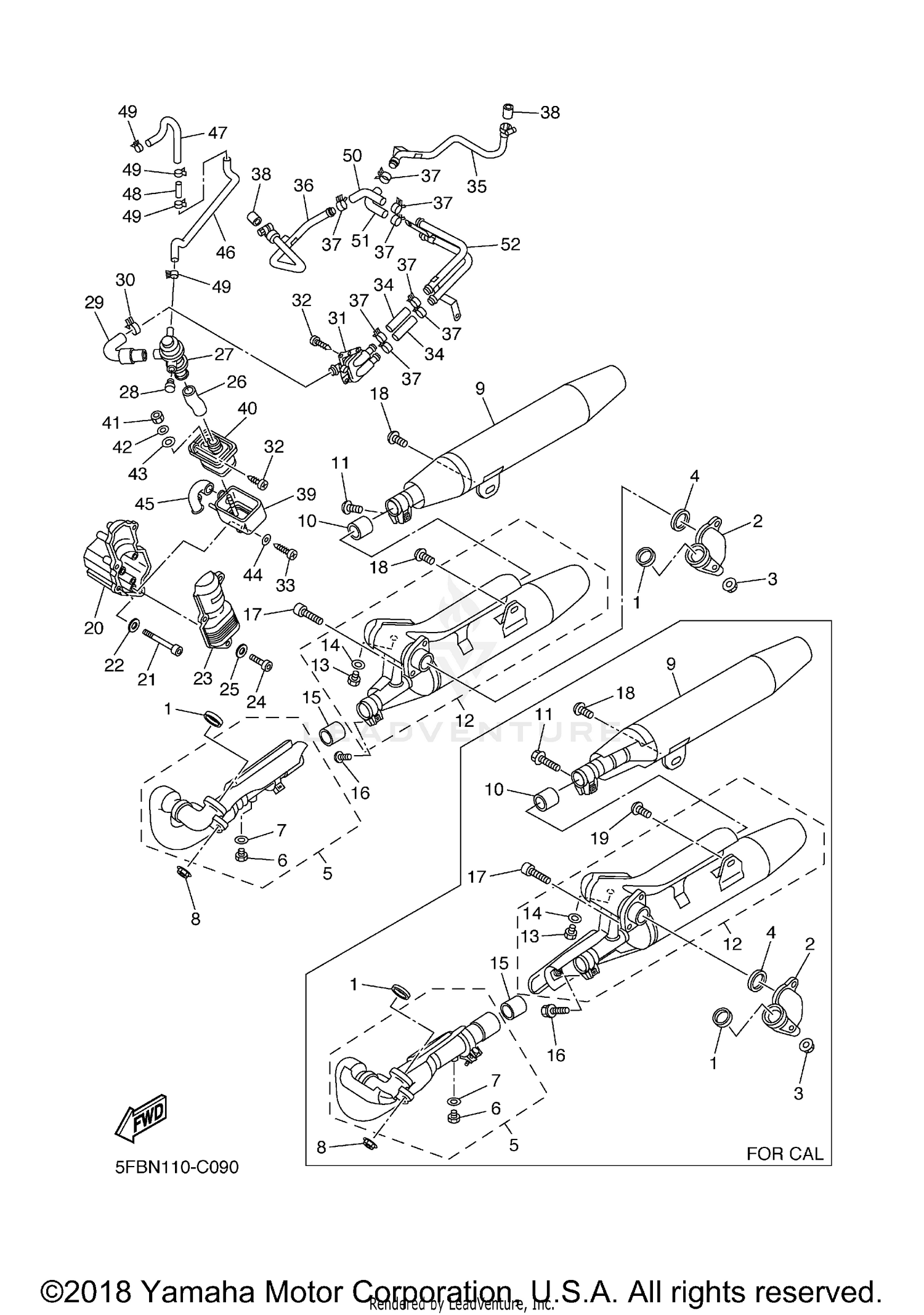

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EXHAUST PIPE
4TR-14613-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, EXHAUST 1
4TR-14615-02-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-08097-00
Superseded by 90185-08146-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, EXHAUST PIPE
4BR-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
EXHAUST PIPE ASSY 2
5BN-14620-01-00
Superseded by 5BN-14620-02-00
|
$424.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
EXHAUST PIPE ASSY 2
5SC-14620-00-00
Superseded by 5SC-14620-01-00
|
$502.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN (646)
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-08097-00
Superseded by 90185-08146-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
MUFFLER COMP. 1
5BN-14703-01-00
Superseded by 5BN-14703-02-00
|
$830.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MUFFLER COMP. 1
5SC-14703-10-00
Superseded by 5SC-14703-11-00
|
$928.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, MUFFLER
4BH-14714-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BUTTON HEAD
92017-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (SMALL HEAD)
95024-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
MUFFLER COMP. 2
5BN-14704-01-00
Superseded by 5BN-14704-03-00
|
$830.99 | ||
|
Unavailable |
|||
|
#12
MUFFLER COMP. 2
5SC-14704-10-00
Superseded by 5SC-14704-12-00
|
$1,380.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON
90101-06576-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
WASHER, PLAIN (646)
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#15
GASKET, MUFFLER
4BH-14714-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#16
BOLT, BUTTON HEAD
92017-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (SMALL HEAD)
95024-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-08036-00
Superseded by 91314-08035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-10020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
BOLT, BUTTON HEAD
92017-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, AIR 1
5BN-14604-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90110-06059-00
Superseded by 91317-06090-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER 1
5BN-14603-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, BEND 2
5BN-14882-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
AIR CUT VALVE ASSY
5BN-14840-00-00
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG
90338-10132-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, BEND 3
5BN-14883-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-19065-00
Superseded by 90467-19051-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
REED VALVE ASSY
5BN-14808-00-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING
97707-60114-00
Superseded by 97707-60514-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, TAPPING
97707-60120-00
Superseded by 97707-60520-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE, BEND 4
5BN-14884-00-00
Superseded by 42H-14884-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#35
PIPE 1
5BN-14871-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE 2
5BN-14872-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90468-08104-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
GASKET, MUFFLER
42H-14714-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CASE, AIR CLEANER
5BN-14857-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CAP, CASE
5BN-14858-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER
92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90202-05057-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90201-062P7-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE, BEND 5
5BN-14885-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE, VACUUM SENSING 1
5BN-13542-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE, VACUUM SENSING 2
5BN-13544-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIPE
4MM-13582-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
HOSE, BEND 1
5BN-14881-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
HOSE, BEND 1
5BN-14881-10-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIPE 5
5BN-14875-00-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
