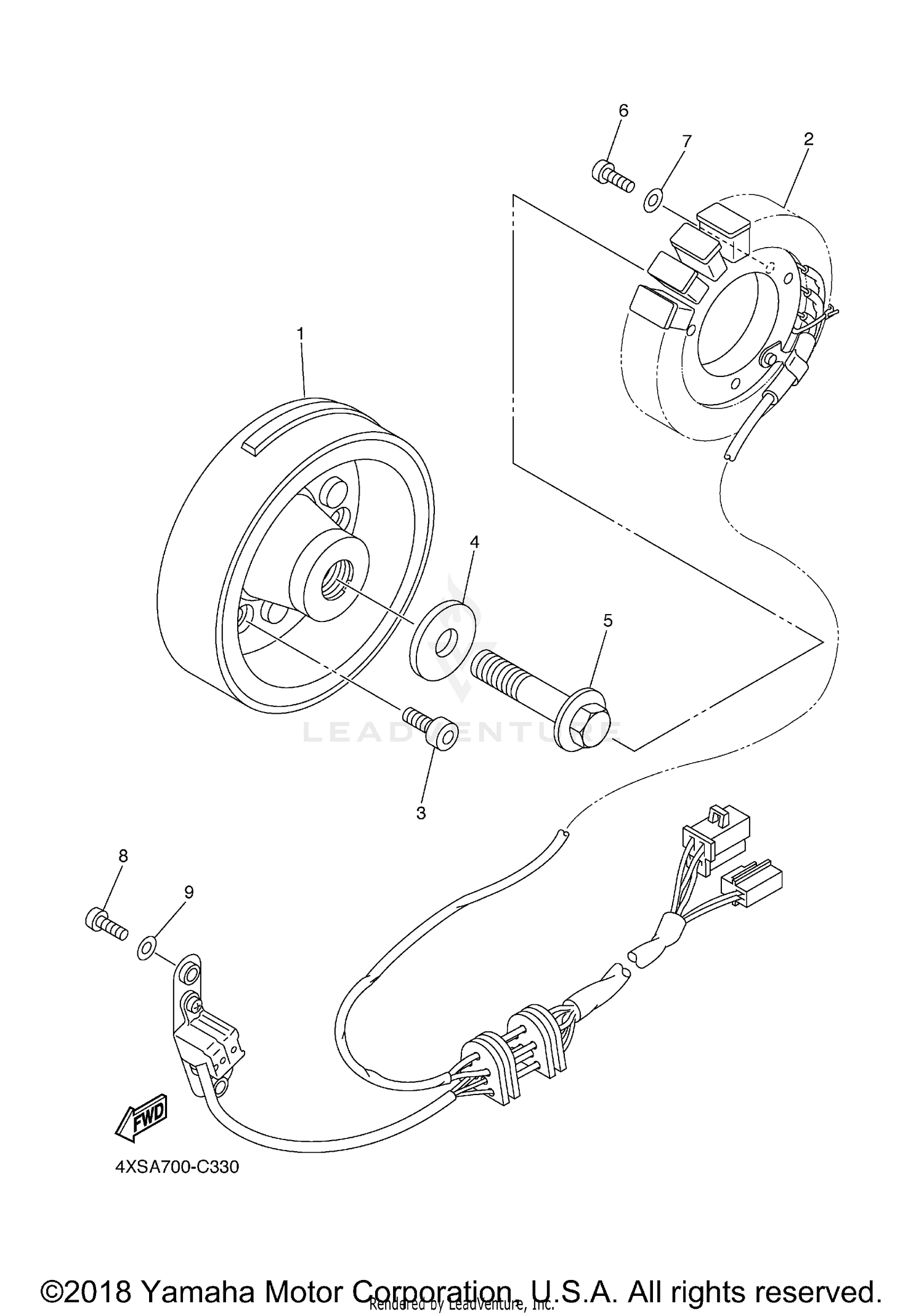

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSY
4VR-81450-00-00
Superseded by 4VR-81450-02-00
|
$311.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR ASSY
5SC-81410-00-00
Superseded by 5SC-81410-03-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90110-08212-00
Superseded by 91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-107E9-00
Superseded by 90201-107K6-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-10152-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98507-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
