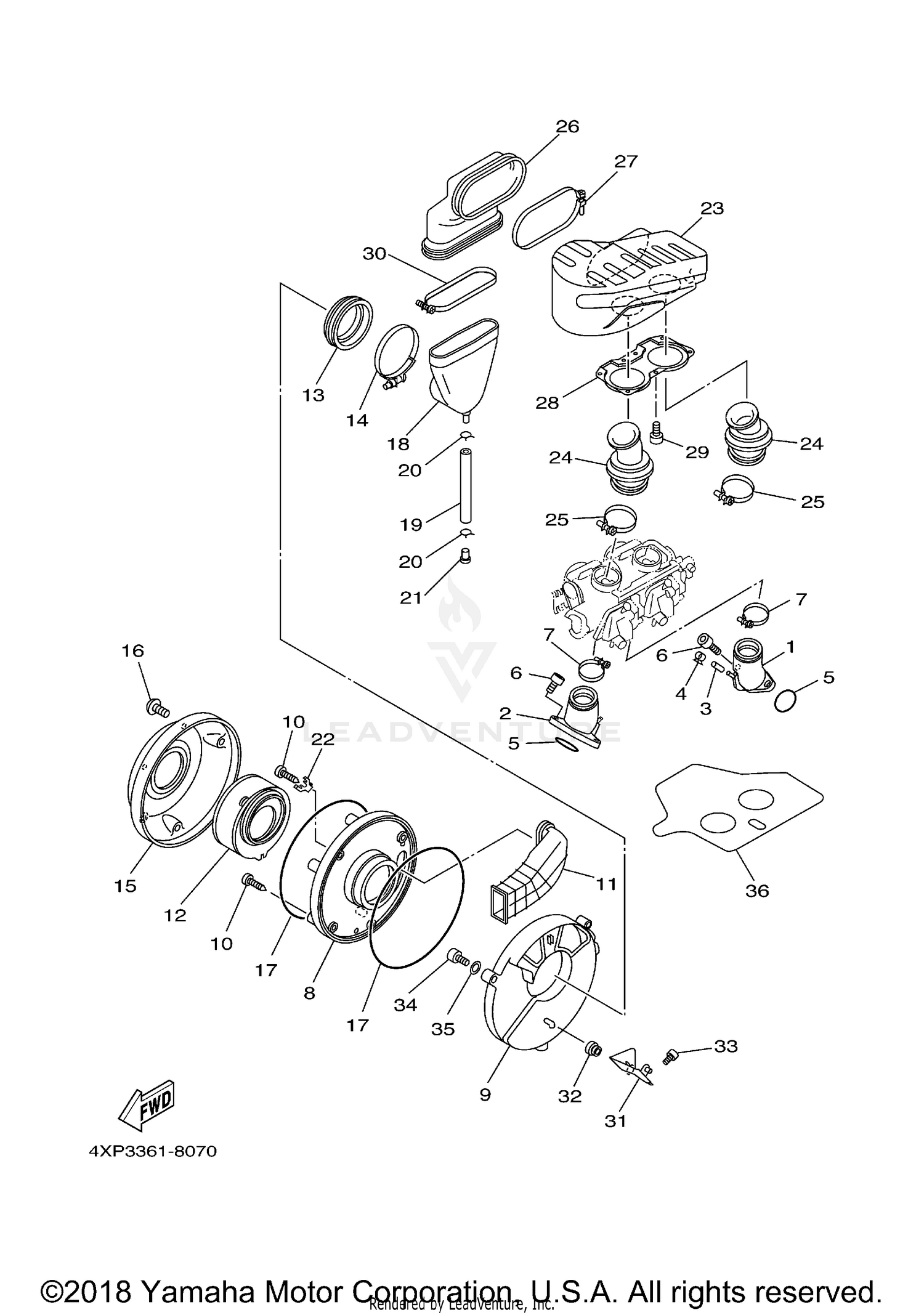

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
4TR-13586-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, CARBURETOR 2
4TR-13596-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, BLIND
16G-13569-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-36769-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND
4TR-13474-01-00
Superseded by 4TR-13474-02-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, AIR CLEANER 1
4TR-14411-00-00
Superseded by 4TR-14411-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER 1
4TR-14417-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97707-50125-00
Superseded by 97707-50525-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUCT
4TR-14437-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ELEMENT, AIR CLEANER
4TR-14451-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT, AIR CLEANER 2
4TR-14463-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE CLAMP ASSY
4TR-14456-00-00
Superseded by 90450-81001-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CASE, AIR CLEANER 2
4TR-14421-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92014-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL
4TR-14452-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, AIR FILTER 2
4TR-1440G-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE (L100)
90445-11587-00
Superseded by 90445-11293-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
90338-08174-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY
4TR-14413-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SILENCER, INTAKE 1
4VR-14431-01-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
JOINT, AIR CLEANER 1
4TR-14453-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE CLAMP ASSY
90460-53200-00
Superseded by 90450-53005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT, AIR FILTER 1
4TR-1440F-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAND
4TR-13575-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, MANIFOLD 2
4VR-13594-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING
97707-40106-00
Superseded by 97707-40506-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND
4TR-14455-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
STAY 2
4TR-14499-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#36
PROTECTOR, HEAT
4TR-12682-01-00
Superseded by 4TR-12682-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
