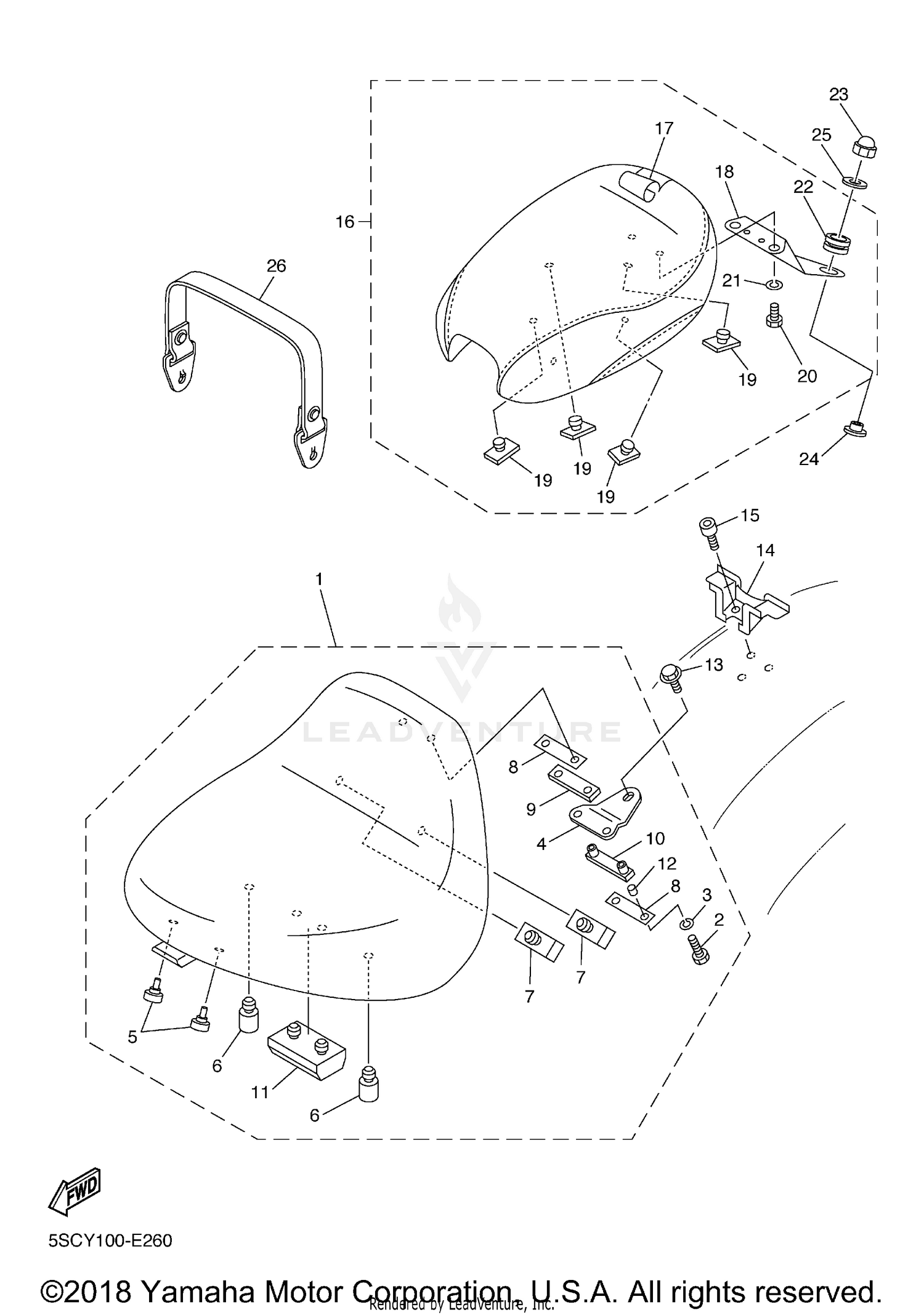

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5BN-24710-10-00
Superseded by 5BN-24710-11-00
|
$332.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, SEAT LEVER 1
5BN-2475H-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, SEAT
35T-24724-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, SEAT
5BN-24723-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAD, SEAT
5BN-24741-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
5BN-24736-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, SEAT
5BN-24737-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, SEAT
5BN-24747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, SEAT
5BN-24724-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
5BN-2475Y-00-00
Superseded by 90387-067V1-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET 3
5BN-2475K-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANDEM SEAT ASSY
5BN-24750-10-00
Superseded by 5BN-24750-11-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, TANDEM SEAT
5BN-24751-00-00
Superseded by 5BN-24751-01-00
|
$95.99 | ||
|
Unavailable |
|||
|
#18
BRACKET, SEAT LEVER 2
5YS-2475J-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, SEAT
509-24724-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#22
GROMMET
5YS-24742-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CROWN
90176-08001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR 1
5YS-2471N-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-08042-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAT BAND ASSY
5BN-24720-00-00
Superseded by 5BN-24720-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
