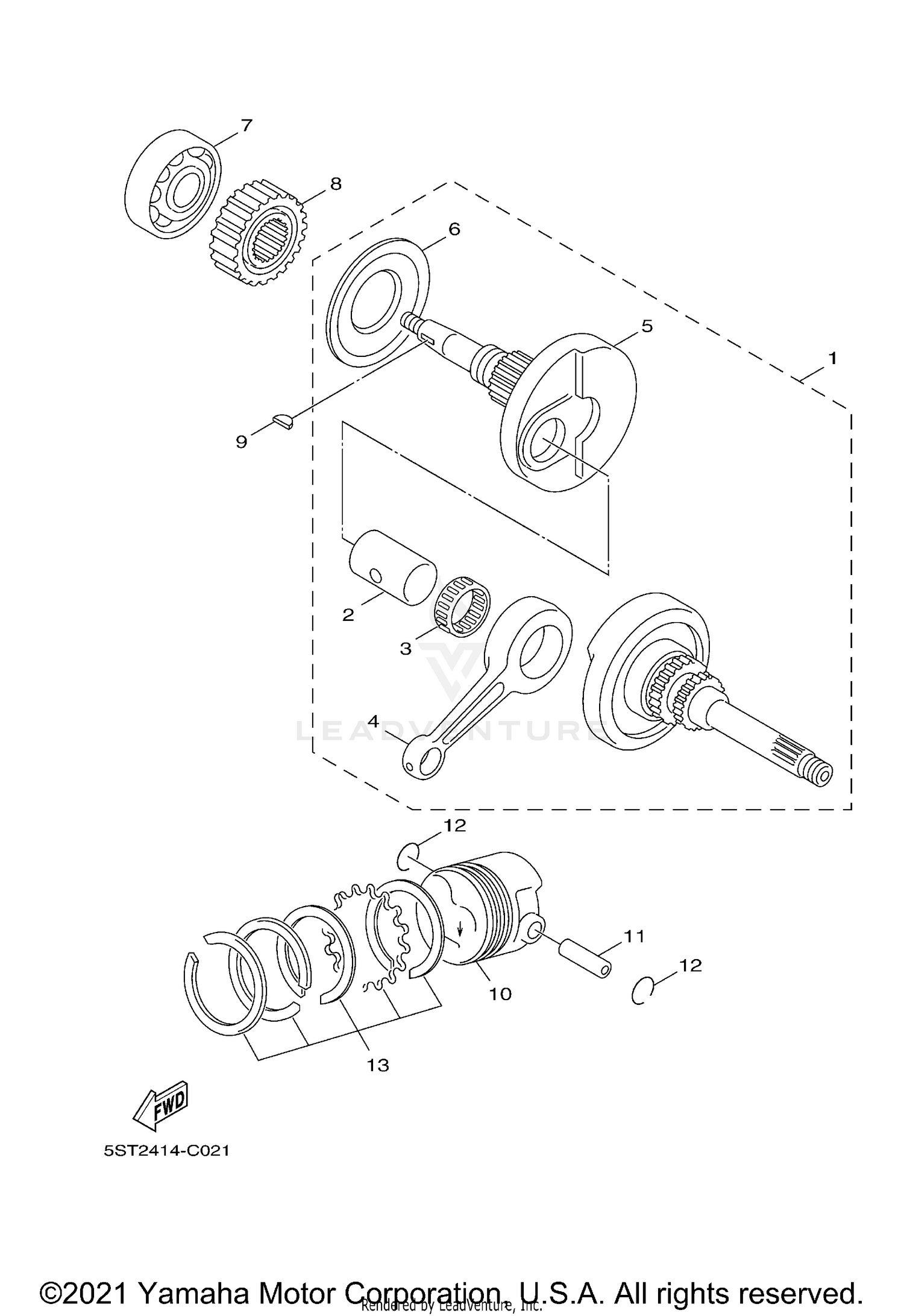

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
2WP-E1400-00-00
Superseded by 2WP-E1400-01-00
|
$176.99 | ||
|
Unavailable |
|||
|
#2
PIN, CRANK 1
2WP-E1681-00-00
Superseded by 2WP-E1681-00-0B
|
$11.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93310-420X0-00
Superseded by 93310-420YB-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
5ST-E1651-20-00
Superseded by 5ST-E1651-11-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANK 2
10B-E1422-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, ROTOR FILTER
5ST-E3452-00-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-205XP-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, PUMP DRIVE
5ST-E3324-00-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, WOODRUFF
90280-03045-00
Superseded by 90280-03017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON (STD)
3B3-E1631-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
5ST-E1633-00-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-10823-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON RING SET (STD)
10B-E1603-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
