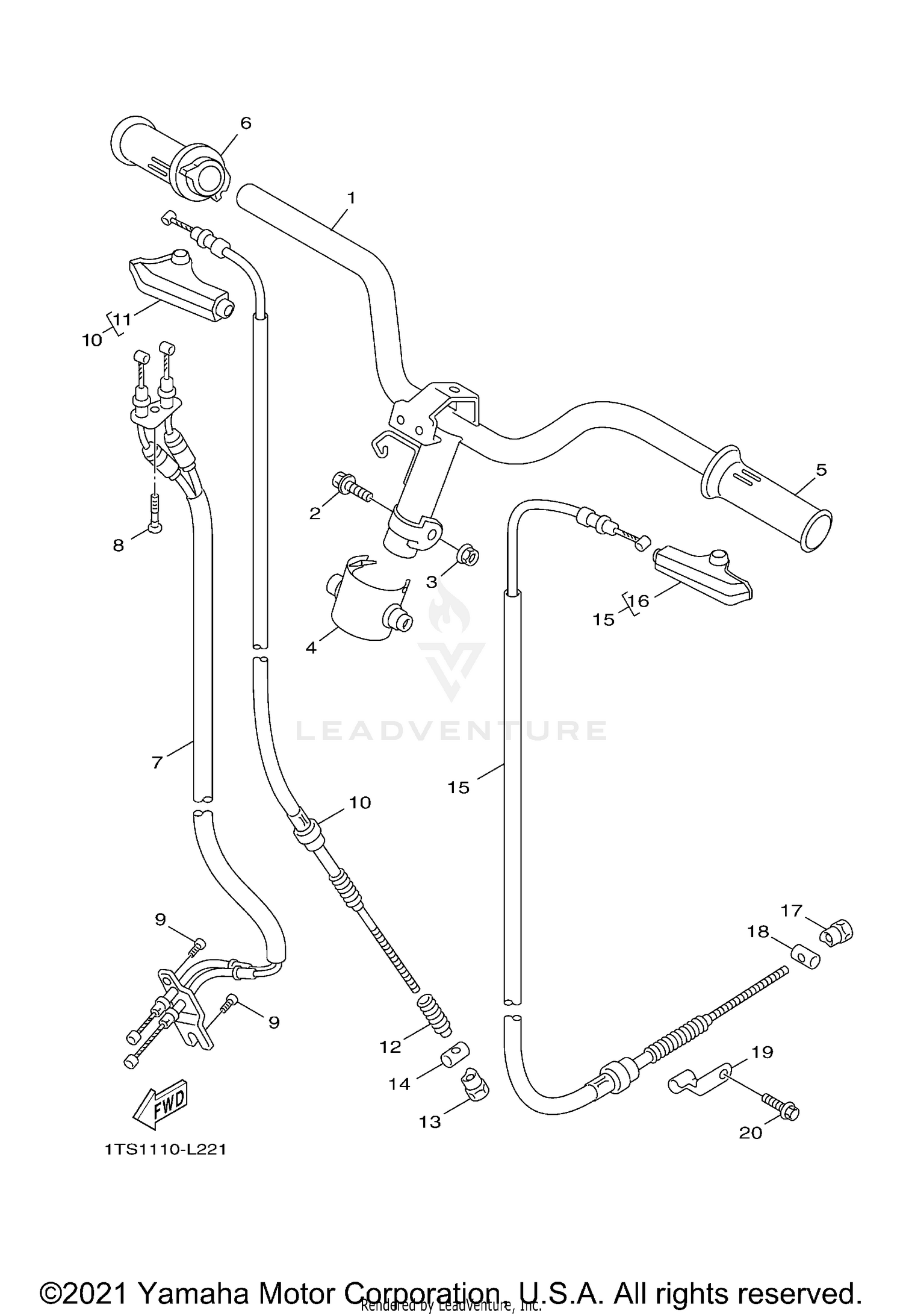

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLE COMP.
5ST-F6110-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90105-10036-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10801-00
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, HANDLEBAR
1TS-F6124-01-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP
37B-F6241-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP ASSY
37B-F6240-01-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
THROTTLE CABLE ASSY
1TS-F6301-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET HEAD
91317-05010-00
|
$2.50 | ||
|
Unavailable |
|||
|
#10
WIRE, BRAKE 1
13P-F6341-30-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, HANDLE LEVER 2
3YJ-2637A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, CABLE
10B-F6342-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPECIAL SHAPE
90179-06411-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPECIAL SHAPE
90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, BRAKE
13P-F6351-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, HANDLE LEVER 1
3YJ-26372-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPECIAL SHAPE
90179-06411-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
PIN, SPECIAL SHAPE
90249-12008-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
HOLDER 2
5ST-F639F-00-00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
