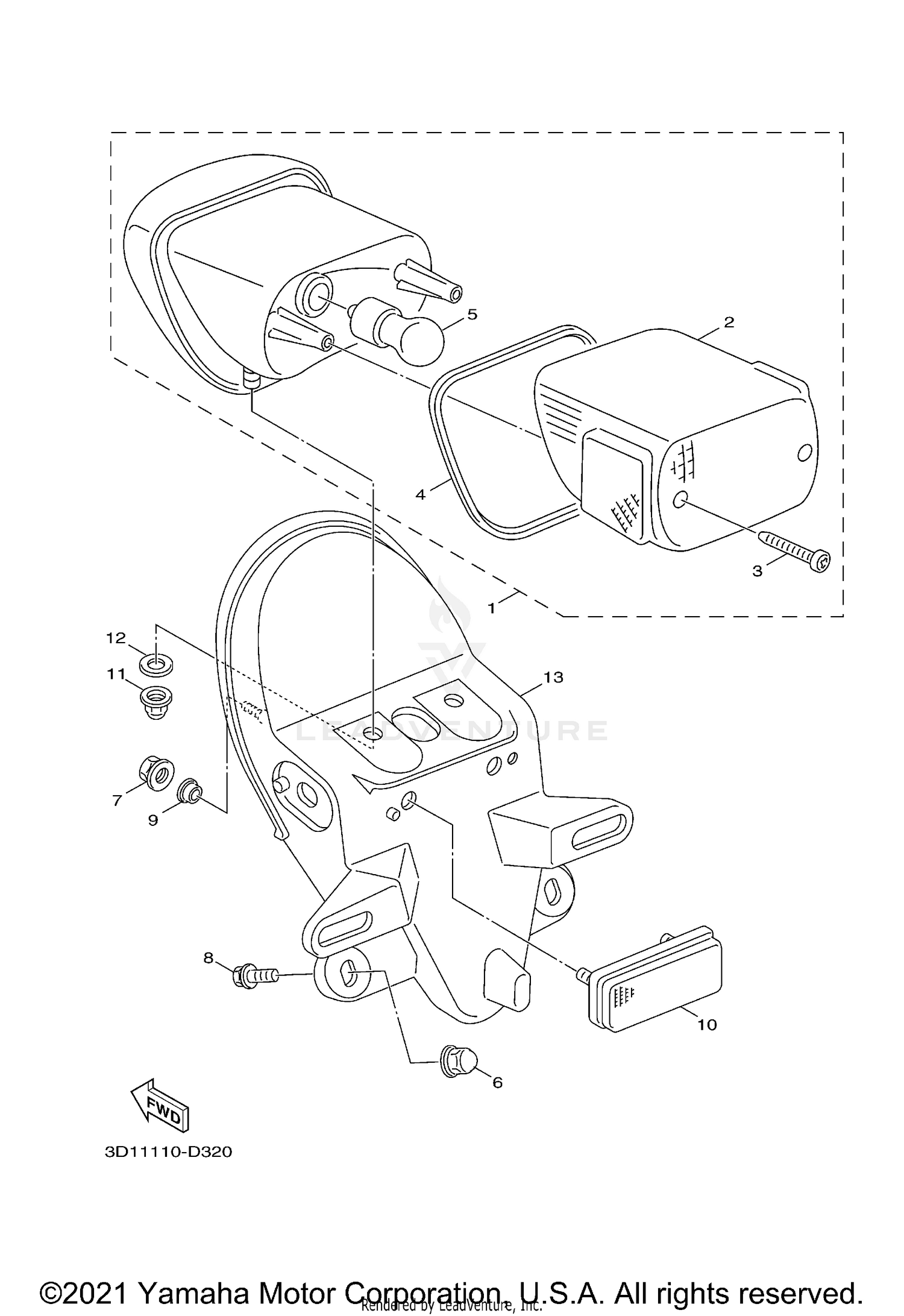

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY
3D1-H4700-20-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, TAILLIGHT
3D1-H472C-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TAPPING
97707-40625-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, TAIL LENS
3D1-H4723-00-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB (12V-P21/5W)
5ML-H4714-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE
95707-06500-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-06839-00
Superseded by 90109-06896-00
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-068S1-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
REAR REFLECTOR ASSY
5ST-H5130-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-06557-00
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
BASE, TAILLIGHT
3D1-H4511-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
