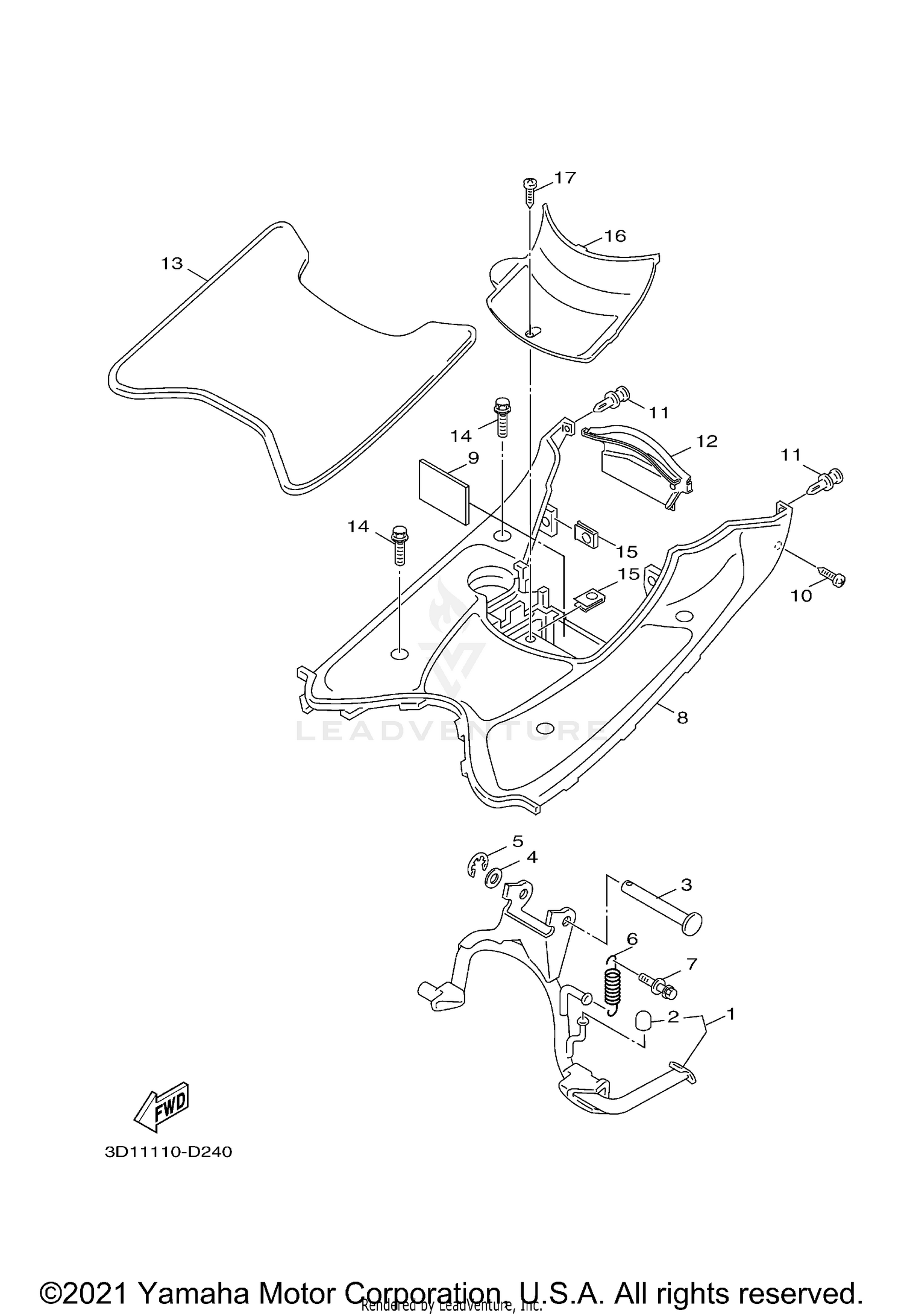

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
5ST-XF711-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER, MAIN STAND
5CA-F7114-00-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
90249-10800-00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-10119-00
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99001-08600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-32803-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK
5SU-F7254-01-00
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOARD, FOOTREST
5ST-F7481-44-00
Superseded by 5ST-F7481-45-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
3D1-H2176-00-00
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIVET
90269-06802-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER 2
13P-F7463-00-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
MAT 1
37B-F7483-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-068A9-00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, BATTERY
13P-H2129-21-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
TAPPING SCREW
90169-05001-00
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
