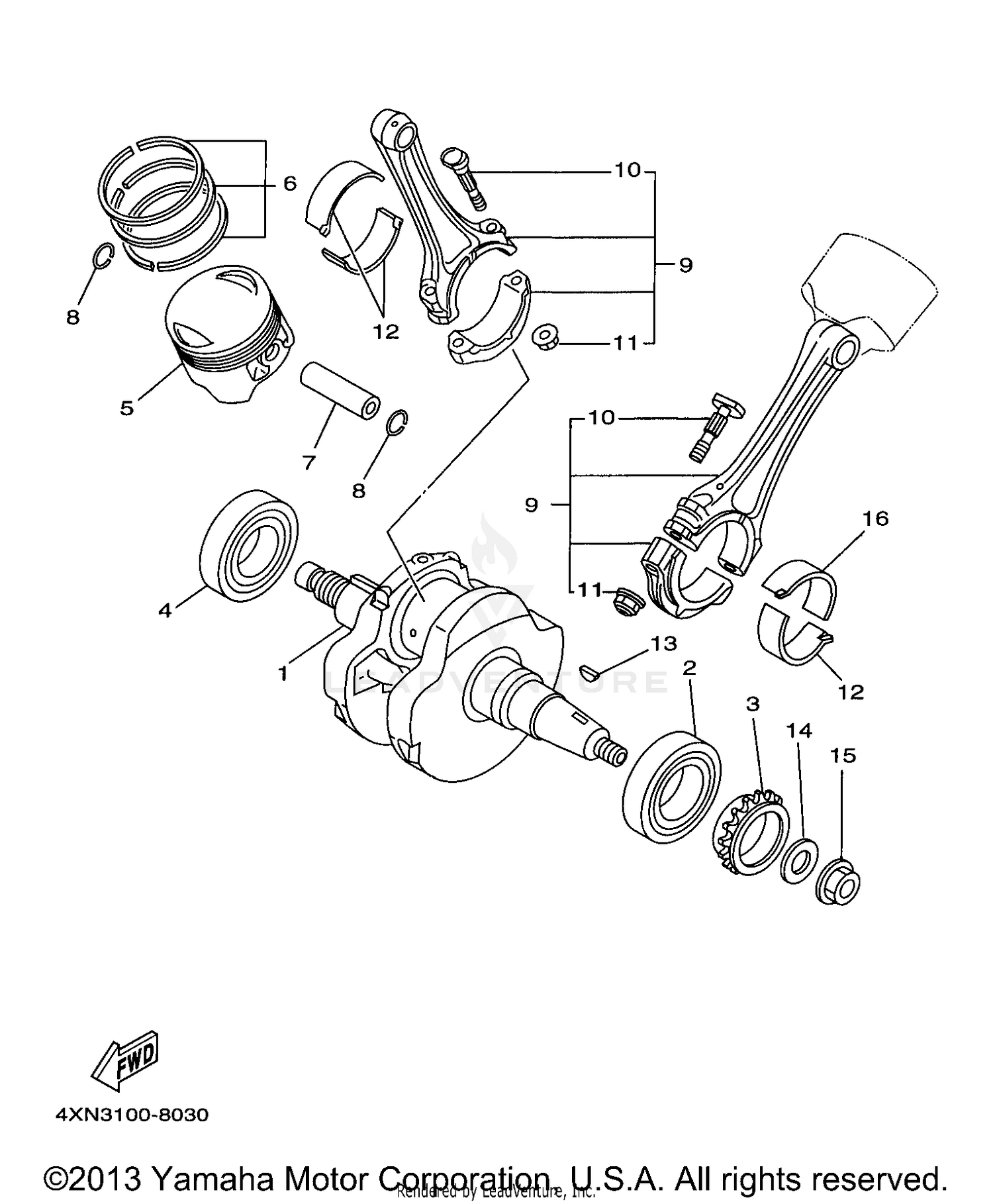

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
1TA-11411-00-00
|
$827.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30808-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, DRIVE
4X7-13354-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30808-00
|
$165.99 | ||
|
Unavailable |
|||
|
#5
PISTON (0.50MM O/S)
1TA-11636-00-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (1.00MM O/S)
1TA-11638-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
1TA-11631-00-A0
|
$171.99 | ||
|
Unavailable |
|||
|
#6
PISTON RING SET (0.50MM O/S)
1TA-11610-20-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (1.00MM O/S)
1TA-11610-40-00
|
$56.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (STD)
1TA-11610-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, PISTON
5A8-11633-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93450-24028-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTING ROD ASSEMBLY
5A8-11650-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#10
BOLT, CONNECTING ROD
4X7-11654-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-09379-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLANE BEARING, CONNECTING ROD
4X7-11656-40-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
4X7-11656-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
4X7-11656-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
4X7-11656-20-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
4X7-11656-30-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, WOODRUFF
90280-05048-00
Superseded by 90280-05001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-165H4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-16448-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLANE BEARING, CONNECTING ROD
5G5-11656-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
5G5-11656-20-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
5G5-11656-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
