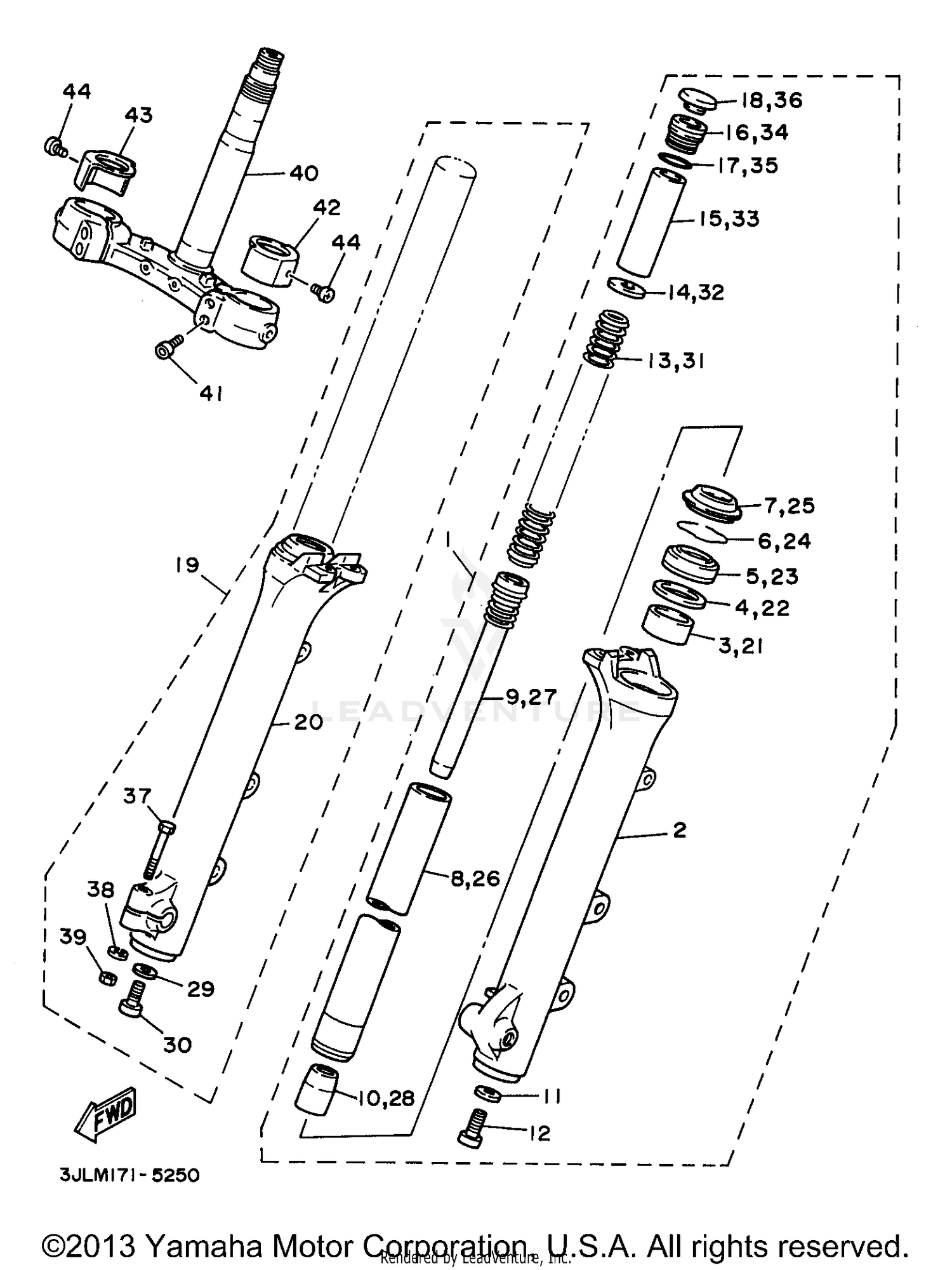

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
3JK-23102-13-00
|
$912.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
3JK-23126-10-00
|
$666.99 | ||
|
Unavailable |
|||
|
#3
METAL, SLIDE 1
2YK-23125-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
4V2-23146-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
4DN-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, DUST
4DN-23144-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE COMP.1
3JK-23110-12-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER COMP., FRONT FORK
42H-23170-00-00
Superseded by 33M-23170-00-00
|
$199.99 | ||
|
Unavailable |
|||
|
#10
SPINDLE, TAPER
3JK-23173-12-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
42H-23141-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING UPPER
4FY-23149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
42X-23118-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
BOLT, CAP
3KM-23111-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#17
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, FRONT FORK
42H-23168-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT FORK ASSEMBLY (R.H)
3JK-23103-13-00
|
$912.99 | ||
|
Unavailable |
|||
|
#20
TUBE, OUTER (RIGHT)
3JK-23136-10-00
|
$666.99 | ||
|
Unavailable |
|||
|
#21
METAL, SLIDE 1
2YK-23125-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#22
WASHER, OIL SEAL
4V2-23146-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#23
OIL SEAL
4DN-23145-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#24
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
SEAL, DUST
4DN-23144-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
INNER TUBE COMP.1
3JK-23110-12-00
|
$272.99 | ||
|
Unavailable |
|||
|
#27
CYLINDER COMP., FRONT FORK
42H-23170-00-00
Superseded by 33M-23170-00-00
|
$199.99 | ||
|
Unavailable |
|||
|
#28
SPINDLE, TAPER
3JK-23173-12-00
|
$32.99 | ||
|
Unavailable |
|||
|
#29
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
SPRING, FRONT FORK
42H-23141-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING UPPER
4FY-23149-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
SPACER
42X-23118-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
BOLT, CAP
3KM-23111-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#35
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
CAP, FRONT FORK
42H-23168-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
BOLT
4V4-23346-L0-00
Superseded by 97013-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPRING
92901-08100-00
Superseded by 92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
95311-08600-00
Superseded by 95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
UNDER BRACKET COMP.
42H-23340-00-00
Superseded by 2AE-23340-30-00
|
$498.99 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
91311-08030-00
Superseded by 91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER (L.H)
1RM-23132-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#43
COVER (R.H)
1RM-23132-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#44
SCREW, PAN HEAD
98580-05006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
