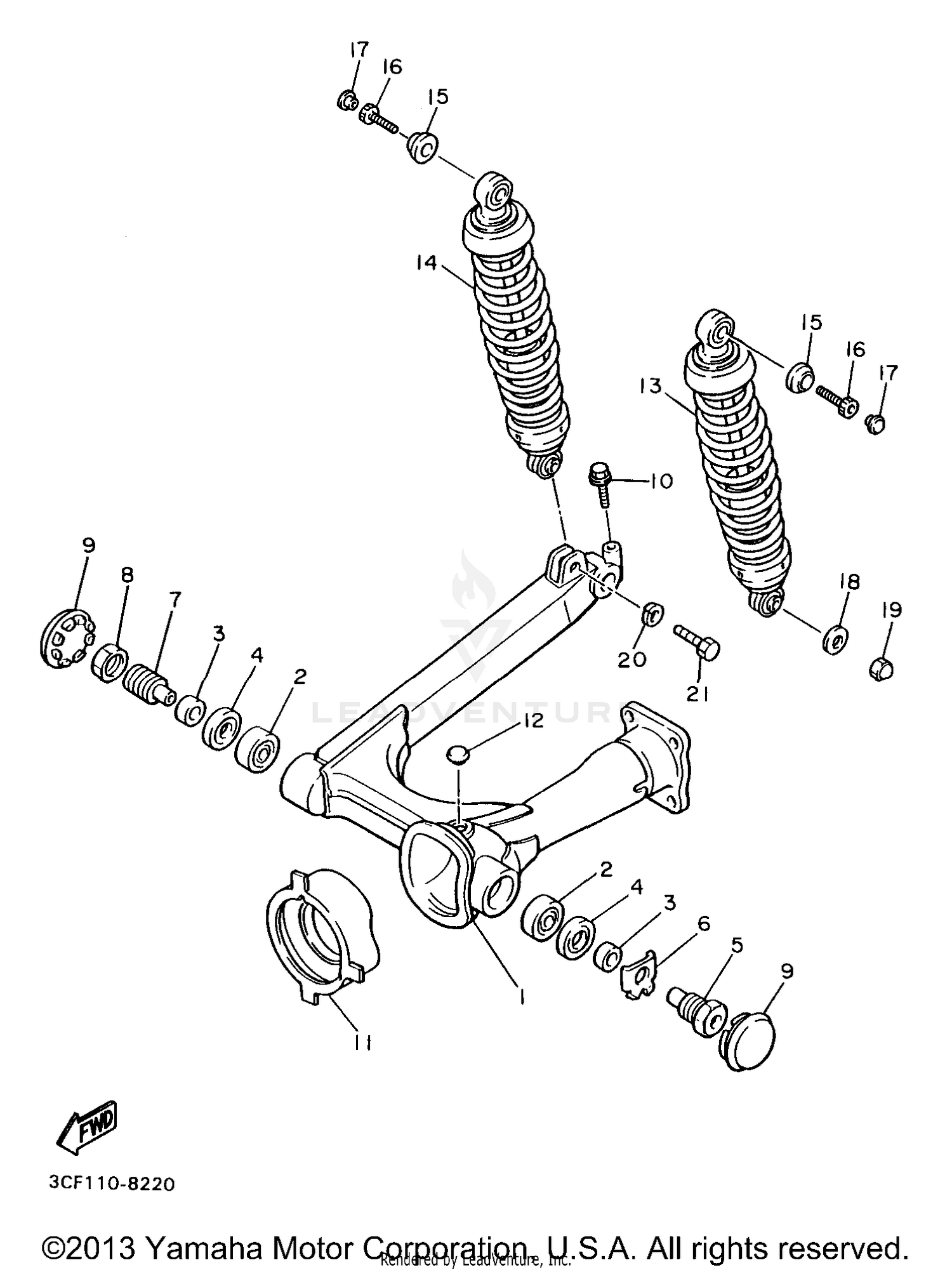

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
1RM-22110-01-35
|
$527.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93332-00010-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-17543-00
Superseded by 90387-17011-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-25017-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT
42X-22141-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, LOCK
90215-22238-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, PIVOT
1J7-22141-00-00
Superseded by 15B-22141-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
1J7-22143-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
2H7-2219X-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95024-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT, RUBBER
4X7-22189-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#12
PLUG
90338-20113-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK ABSORBER ASSEMBLY, REAR
3JK-22210-01-00
|
$576.99 | ||
|
Unavailable |
|||
|
#
SHOCK ABSORBER ASSEMBLY, REAR
3JK-22210-10-00
|
$576.99 | ||
|
Unavailable |
|||
|
#14
SHOCK ABSORBER ASSEMBLY, REAR
3JK-22220-10-00
|
$634.99 | ||
|
Unavailable |
|||
|
#
SHOCK ABSORBER ASSEMBLY, REAR
3JK-22220-01-00
|
$635.99 | ||
|
Unavailable |
|||
|
#15
WASHER 1
57A-22243-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#16
BOLT
91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG
90338-08163-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CROWN
90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92903-10100-00
Superseded by 92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90106-10052-00
|
$8.49 | ||
|
Unavailable |
|||
