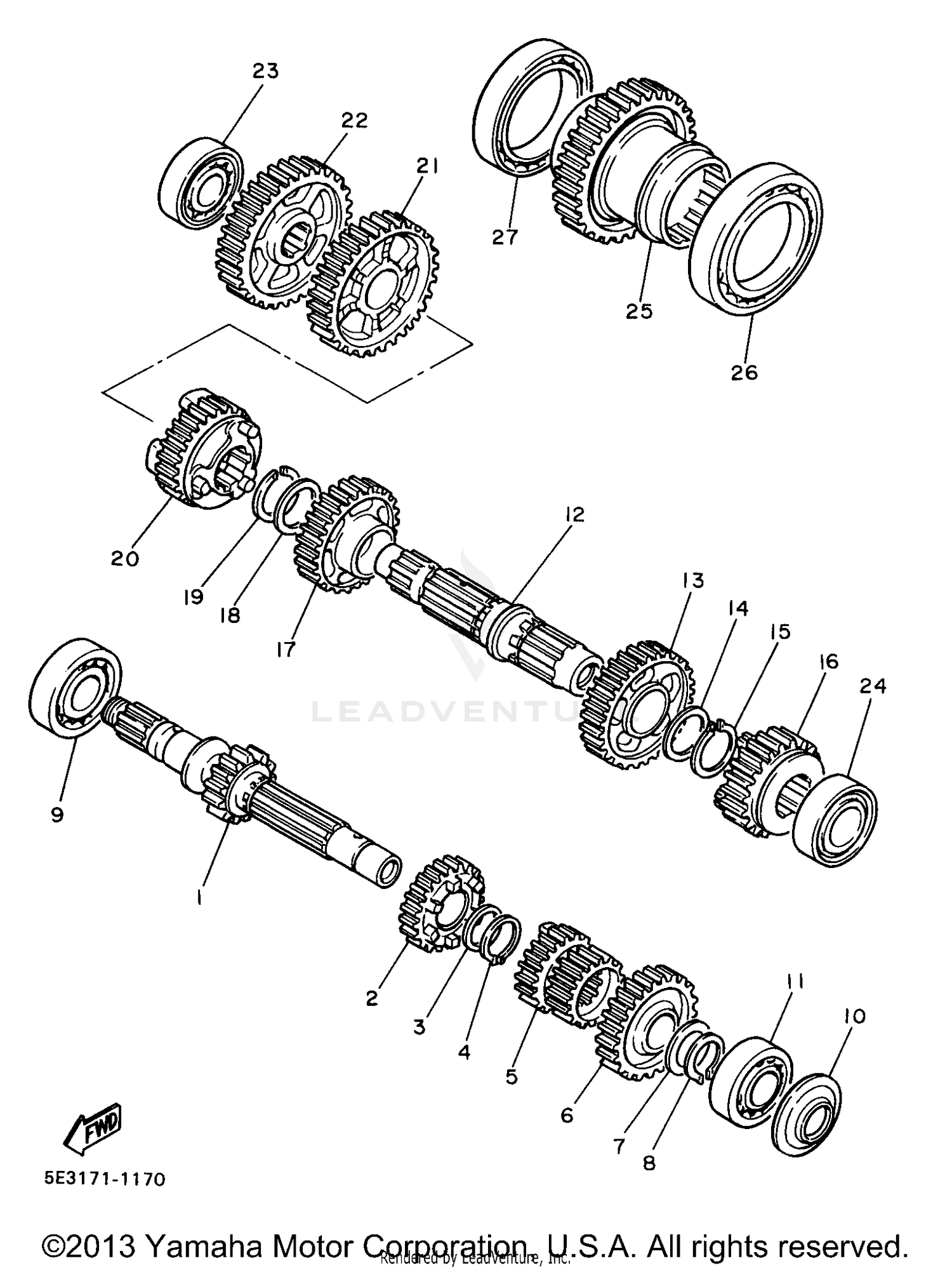

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
1TA-17411-00-00
|
$157.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION (31T)
4X7-17141-00-00
Superseded by 5EL-17141-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-22191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-25400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 2ND/3RD PINION (24/28T)
4X7-17121-00-00
|
$232.99 | ||
|
Unavailable |
|||
|
#6
GEAR, 5TH PINION (34T)
42X-17151-00-00
|
$109.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE (T=1.0)
90201-20276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30525-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93104-20068-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (B6304A3)
93306-30424-00
Superseded by 93306-30443-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRIVE AXLE ASSEMBLY
4X7-17402-00-00
|
$148.99 | ||
|
Unavailable |
|||
|
#13
GEAR, 2ND WHEEL (40T)
4X7-17221-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#14
WASHER
90209-27192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93440-30077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR , 5TH WHEEL (29T)
42X-17251-00-00
|
$152.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 3RD WHEEL (36T)
4X7-17231-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#18
WASHER
90209-27192-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93440-30077-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
GEAR, 4TH WHEEL (32T)
4X7-17241-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#21
GEAR, 1ST WHEEL (39T)
1TA-17211-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#22
GEAR, MIDDLE DRIVE (46T)
4PP-17582-00-00
|
$222.99 | ||
|
Unavailable |
|||
|
#23
BEARING (B6204)
93306-20401-00
Superseded by 93306-20461-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20550-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, MIDDLE DRIVEN (45T)
4PP-17583-00-00
|
$375.99 | ||
|
Unavailable |
|||
|
#26
BEARING
93316-01201-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93306-91201-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
