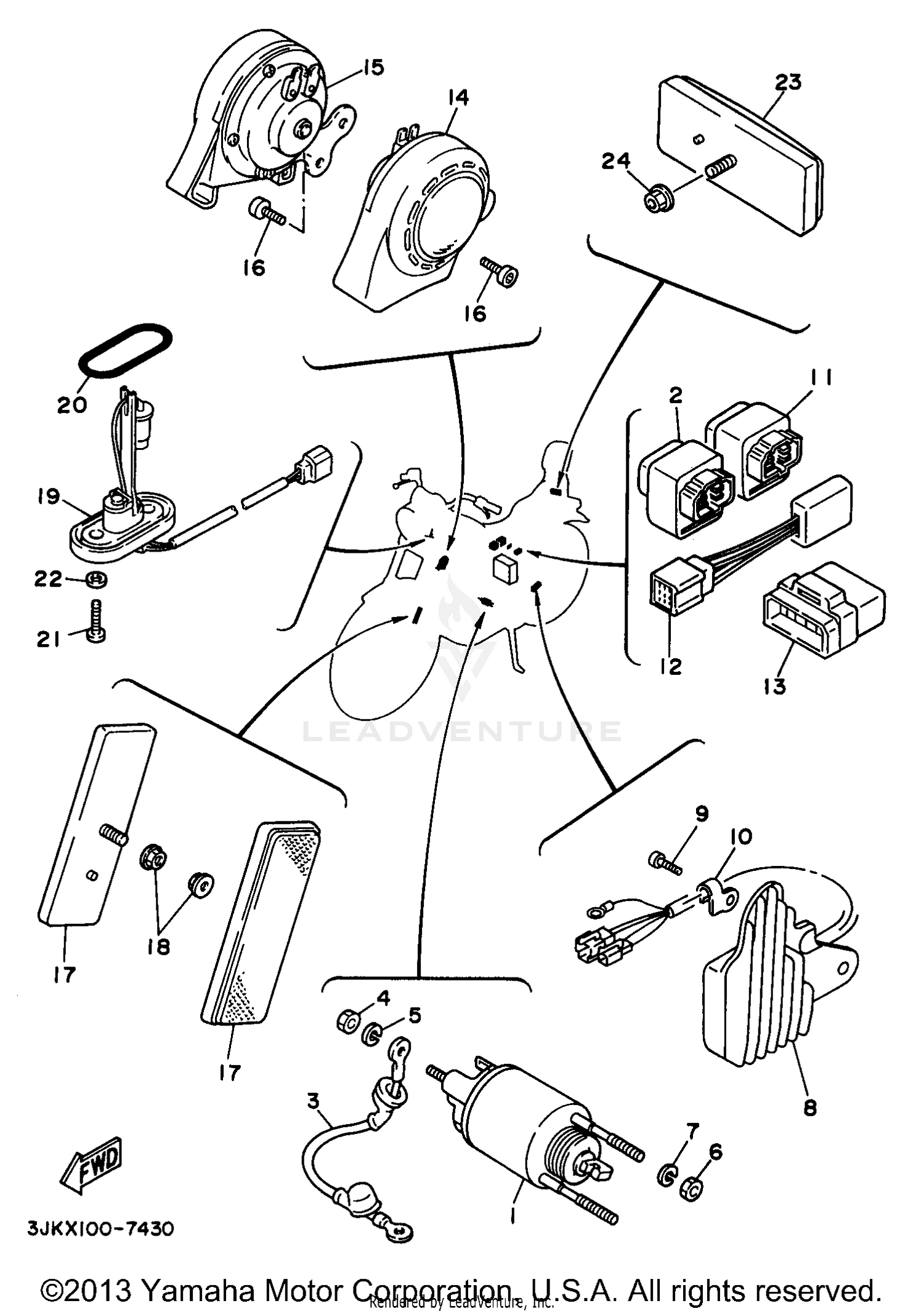

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SOLENOID
5A8-86110-50-00
|
$222.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY ASSY
25G-81950-01-00
Superseded by 25G-81950-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#3
CORD, STARTER MOTOR
3JK-81815-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#4
NUT
95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RECTIFIER & REGULATOR ASSEMBLY
3LP-81960-00-00
Superseded by 3LP-81960-01-00
|
$280.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97027-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90461-08113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
RELAY ASSY
25G-81950-01-00
Superseded by 25G-81950-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#12
DIODE ASSY
4U8-81980-M0-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLASHER RELAY ASSY
41R-83350-71-00
Superseded by 41R-83350-72-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HORN
1RM-83371-00-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HORN
1RM-83371-10-00
Superseded by 4NK-83371-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
REFLECTOR ASSEMBLY
42X-85110-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENDER UNIT ASSEMBLY, FUEL METE
42H-85752-01-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, SENDER UNIT
42X-85753-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
REAR REFLECTOR ASSEMBLY (42X-85
2EN-85130-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#24
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Unavailable |
|||
