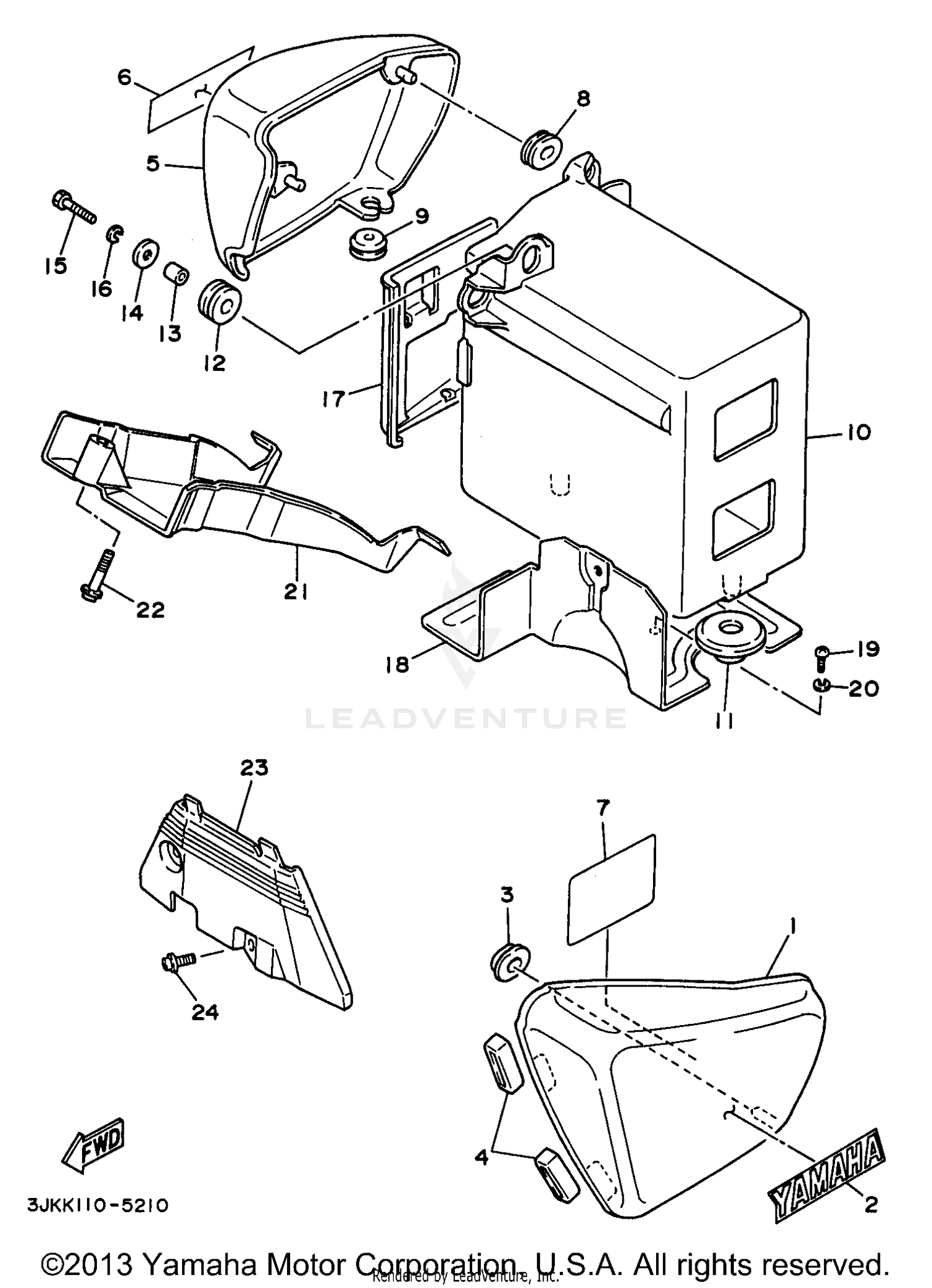

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
42X-21711-00-FE
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, SIDE 1
42X-21711-00-P5
|
$78.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
42X-21711-00-JW
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, YAMAHA
99236-00080-00
Superseded by 99246-00080-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99237-00080-00
Superseded by 99247-00080-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, SIDE COVER
3LP-21717-00-00
Superseded by 466-21717-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SIDE 2
42X-21721-00-P5
|
$90.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
42X-21721-00-FE
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, SIDE 2
42X-21721-00-JW
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM, YAMAHA
99237-00080-00
Superseded by 99247-00080-00
|
$14.99 | ||
|
Unavailable |
|||
|
#
EMBLEM, YAMAHA
99236-00080-00
Superseded by 99246-00080-00
|
$18.99 | ||
|
Unavailable |
|||
|
#7
PLATE, EPA 2
3JK-2179R-80-00
|
$17.49 | ||
|
Unavailable |
|||
|
#
PLATE, EPA 1
3JK-2179V-80-00
|
$18.99 | ||
|
Unavailable |
|||
|
#8
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOX, TOOL
42X-21171-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-20384-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-16233-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
LID
42X-28185-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#18
COVER
42X-2172W-02-00
|
$53.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#21
PLATE
42X-2176E-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#22
SCREW, WITH WASHER
90159-06110-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER
42X-2117F-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#24
SCREW, WITH WASHER
90159-06071-00
Superseded by 90159-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
