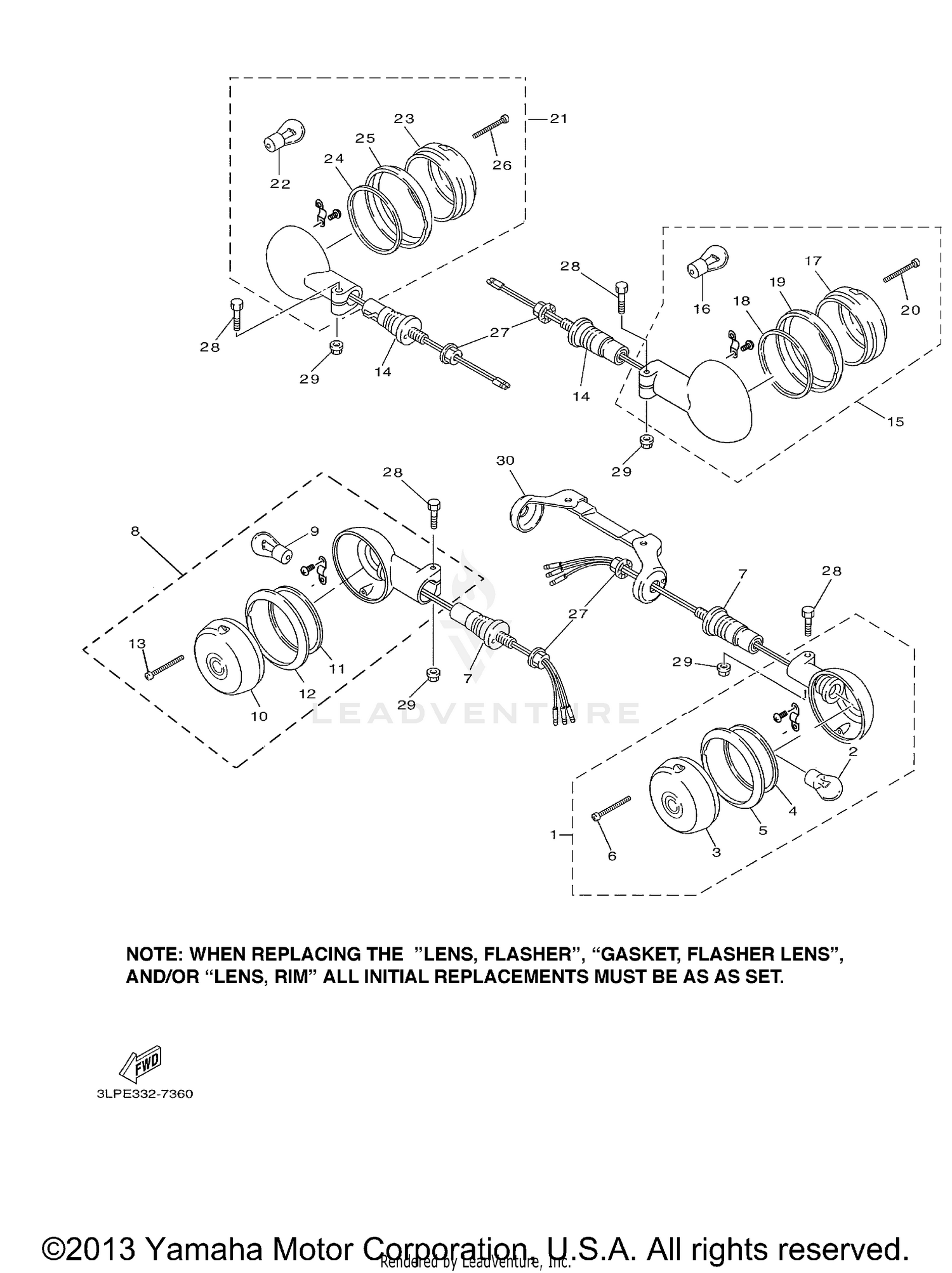

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
42X-83310-K1-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, FLASHER
42X-83312-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
LENS, RIM
1D6-83363-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY,FLASHER 1
1AA-83318-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT FLASHER LIGHT ASSY 2
42X-83320-K1-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Unavailable |
|||
|
#10
LENS, FLASHER
42X-83312-20-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
LENS, RIM
1D6-83363-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
STAY,FLASHER 1
1AA-83318-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#15
REAR FLASHER LIGHT ASSY 1
42X-83330-K1-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
LENS, FLASHER
42X-83312-20-00
|
$14.99 | ||
|
Unavailable |
|||
|
#18
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
LENS, RIM
1D6-83363-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#20
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
REAR FLASHER LIGHT ASSY 2
42X-83340-K1-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#23
LENS, FLASHER
42X-83312-10-00
|
$14.99 | ||
|
Unavailable |
|||
|
#24
GASKET, FLASHER LENS
1D6-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
LENS, RIM
1D6-83363-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#26
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
NUT, FLANGE
95707-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,HEXAGON
97024-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE
95704-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY, FLASHER 2
42X-83328-00-00
|
$84.99 | ||
|
Unavailable |
|||
