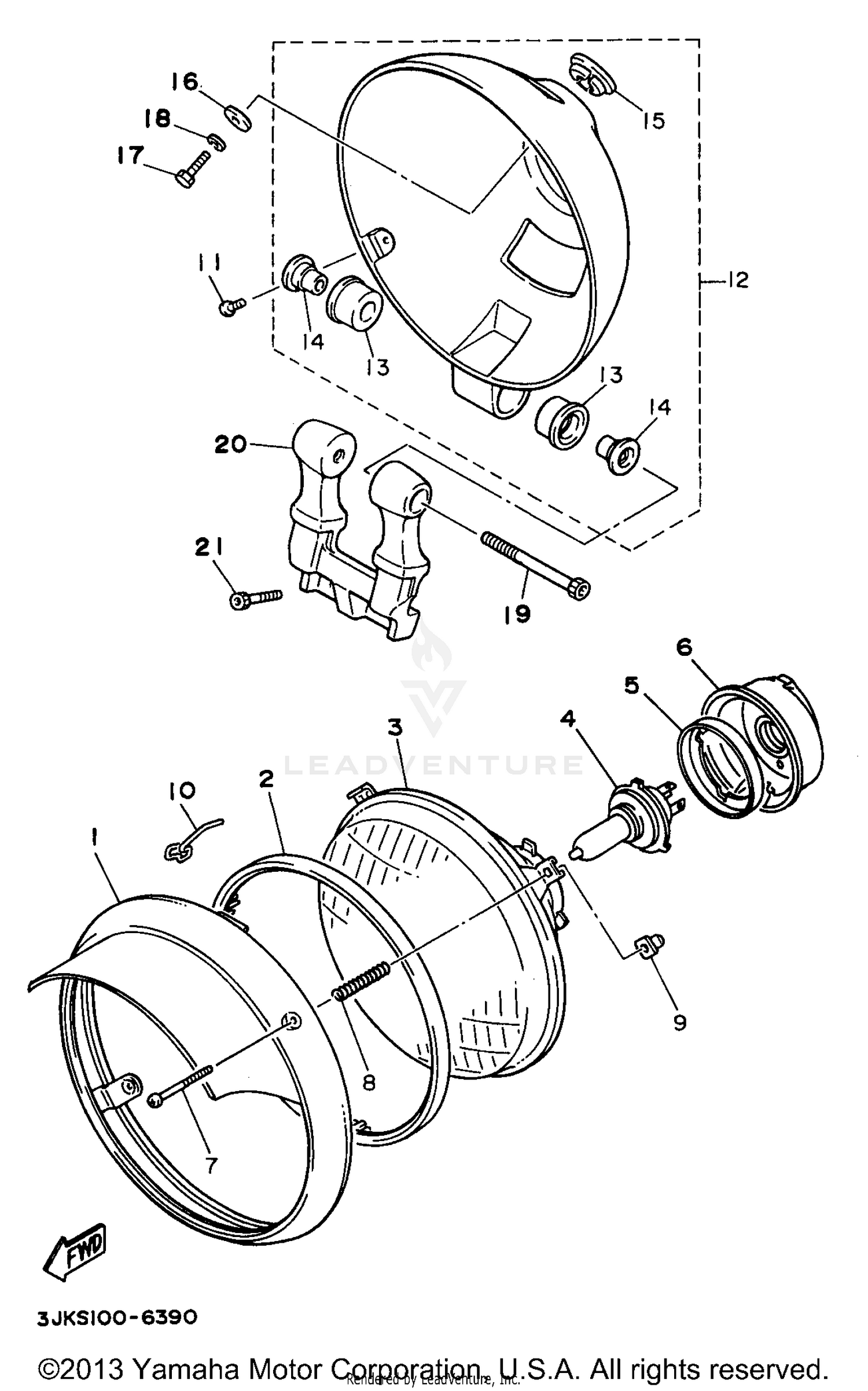

Headlight 2 Xv1100s Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIM, HEADLIGHT
3JK-84315-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#2
RING, RETAINING
5Y3-84395-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSY
42X-84321-A0-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
1A0-84332-60-00
Superseded by 447-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, SET
42X-84124-60-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
90157-05084-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY ASSY
42X-84330-01-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, HEADLIGHT
42X-84345-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR BODY FITTING
42X-84338-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#15
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91317-08055-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY,HEADLIGHT 1
42X-84318-00-00
Superseded by 99999-03057-00
|
$84.99 | ||
|
Unavailable |
|||
|
#21
BOLT
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
