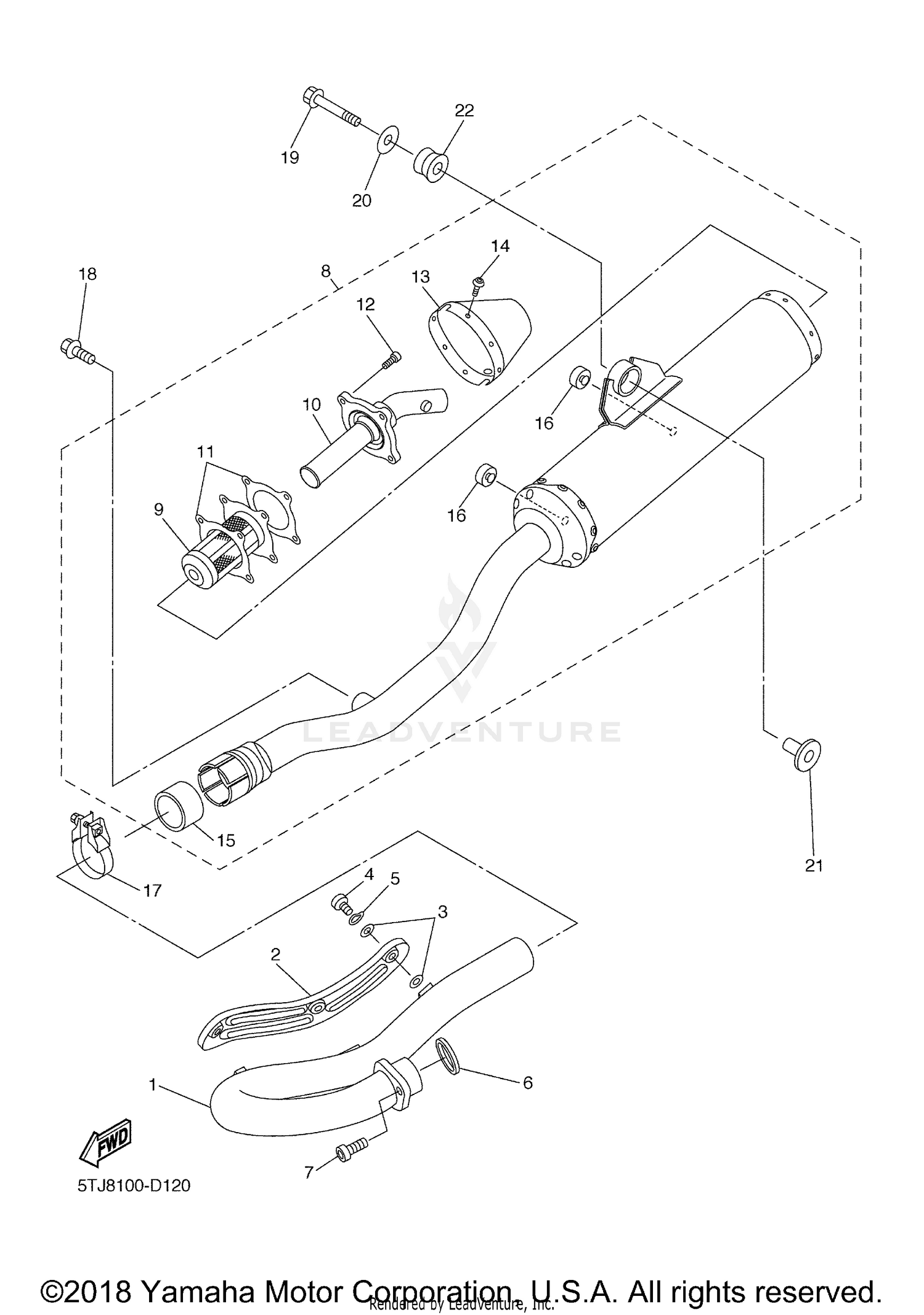

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5XC-14611-00-00
|
$390.03 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5XC-14628-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
5NL-14613-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET HEAD
91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSY 1
5UM-14710-80-00
|
$819.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK ARRESTER ASSY
5TJ-14780-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, TAIL
5TJ-14784-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, EXHAUST PIPE
5TJ-14623-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91314-05008-00
|
$1.05 | ||
|
Unavailable |
|||
|
#13
CAP
5TJ-14799-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92014-05008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, MUFFLER
5PH-14714-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, SILENCER
5BE-14788-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-08057-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-08659-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-0814J-00
Superseded by 90387-08081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, MUFFLER
5BE-14747-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
