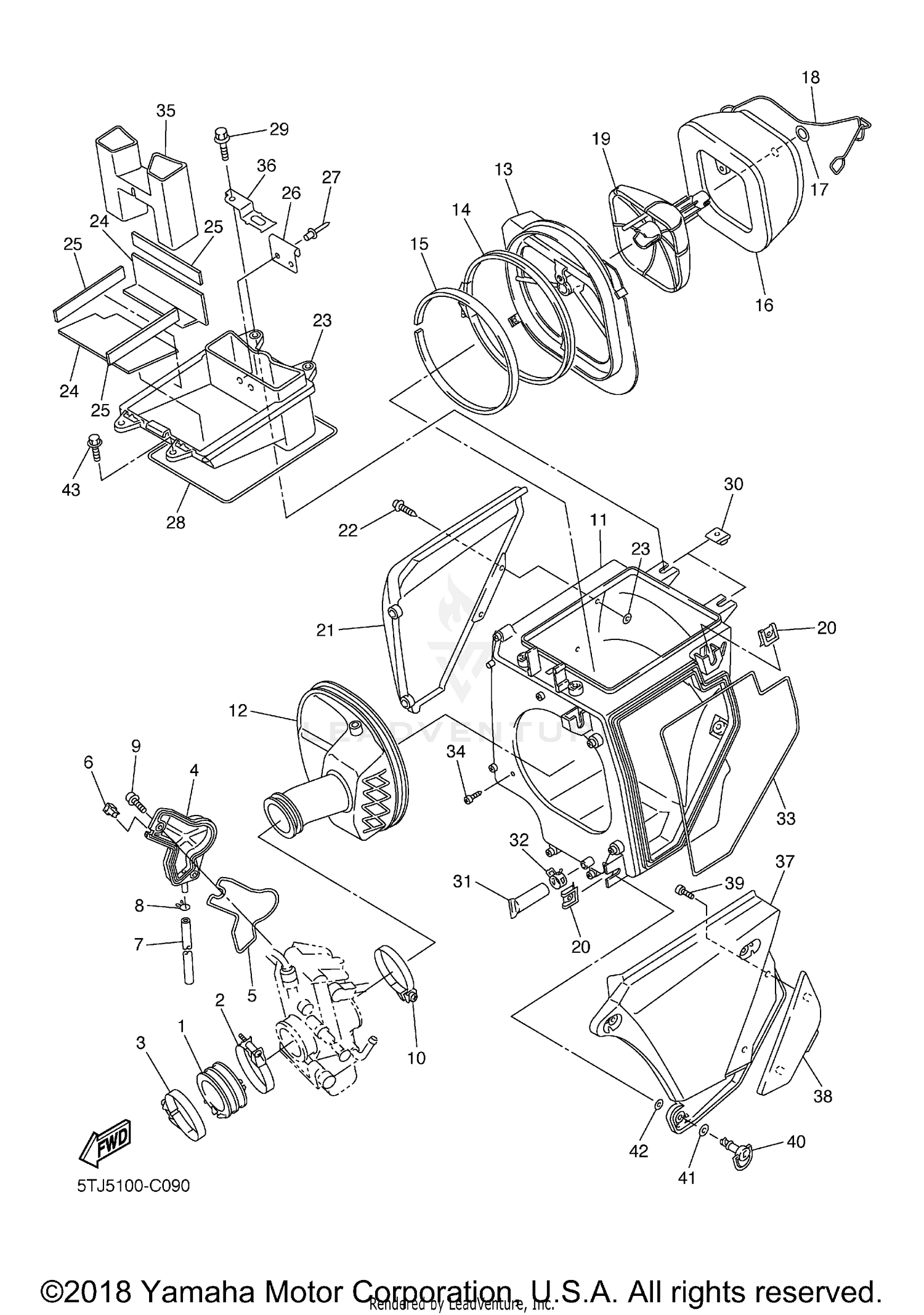

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 3
5XC-13597-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90450-57008-00
Superseded by 90450-57010-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-54002-00
Superseded by 90450-54009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER 1
5TA-14293-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
5TA-14227-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL
5TA-14239-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE
5TA-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
3TJ-14137-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
5TA-14428-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-61001-00
Superseded by 90450-61002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLEANER CASE ASSY
5TJ-14401-11-00
|
$74.99 | ||
|
Unavailable |
|||
|
#12
JOINT, AIR CLEANER 1
5TA-14453-01-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, GUIDE
5TJ-14459-00-00
Superseded by 5TJ-14459-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND
5NY-14455-10-00
Superseded by 5NY-14455-20-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
5NY-14442-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ELEMENT, AIR CLEANER
5TJ-14451-00-00
Superseded by 5TJ-14451-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
5TJ-14475-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BINDER 1
5TJ-1441G-00-00
Superseded by 5UM-1441G-E0-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE
5TJ-14458-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, SPRING
4XV-2177L-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CLEANER CASE 2
5TJ-1441E-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING
97707-40016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUCT
5TJ-14437-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER 1
5TJ-14425-10-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER 2
5TJ-14426-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOOK
5TJ-14436-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
RIVET, BLIND
90267-32146-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL
5TJ-14457-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SPRING
90183-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE, DRAIN
5BF-1443E-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL
5TJ-14462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, TAPPING
97707-50516-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
DUCT
5TJ-1443A-00-00
|
$9.69 | ||
|
Unavailable |
|||
|
#36
STAY, RELAY
5TJ-81953-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, CLEANER CASE 1
5TJ-1441A-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, CLEANER CASE 3
5TJ-1442A-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, TAPPING
97707-30512-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
HEAD
3FV-28386-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPECIAL 1
2TK-21757-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, SPECIAL 1
5TJ-21757-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
