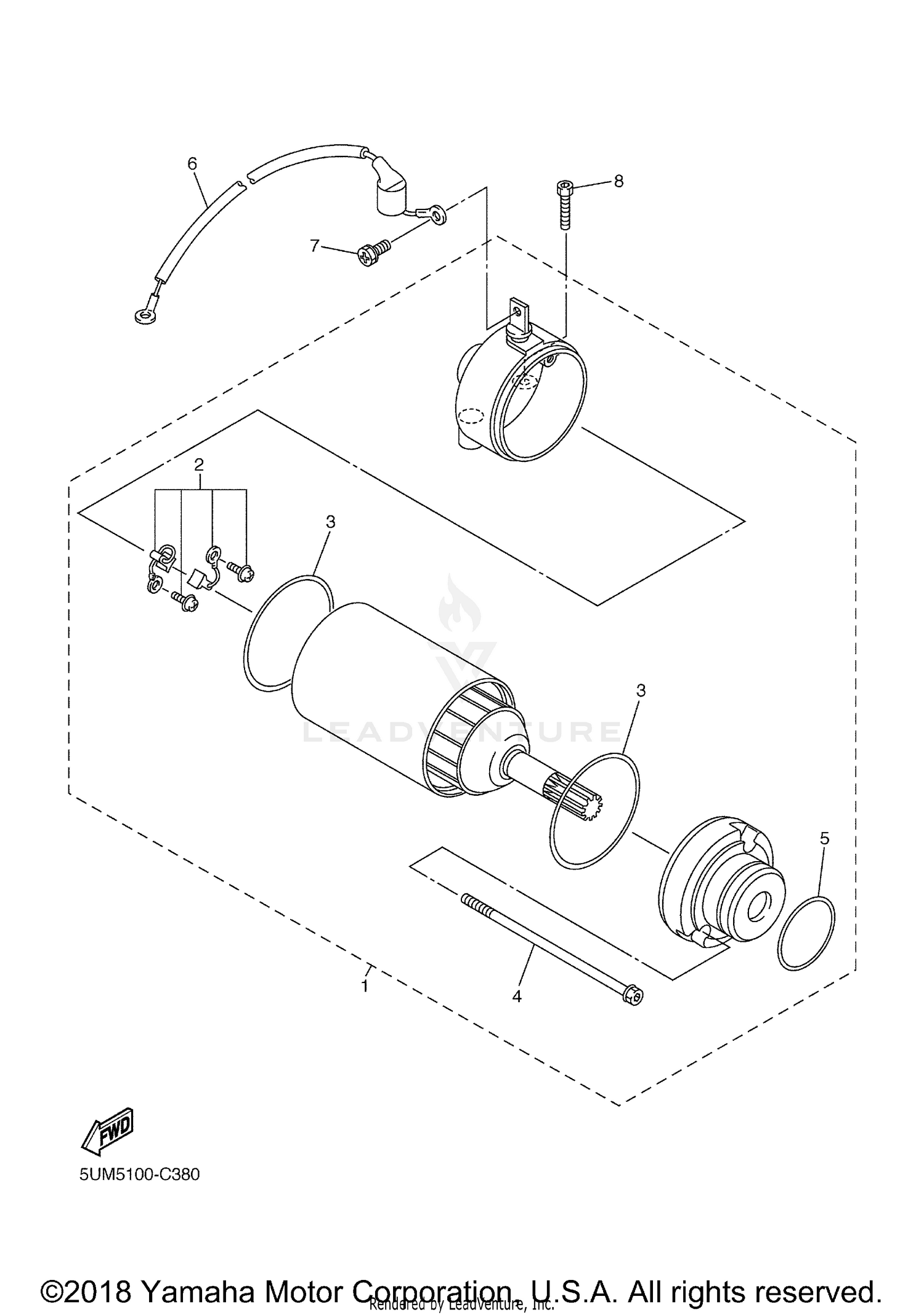

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
5UM-81890-00-00
Superseded by 5UM-81890-11-00
|
$348.99 | ||
|
Unavailable |
|||
|
#2
BRUSH SET
5UM-81801-00-00
Superseded by 5UM-81801-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
5UM-81861-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW 2
5UM-81828-00-00
Superseded by 5UM-81828-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-25711-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CORD COMP.
5UM-8183G-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT 2
5JJ-81828-00-00
Superseded by 5JJ-81828-01-00
|
$2.25 | ||
|
Unavailable |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
