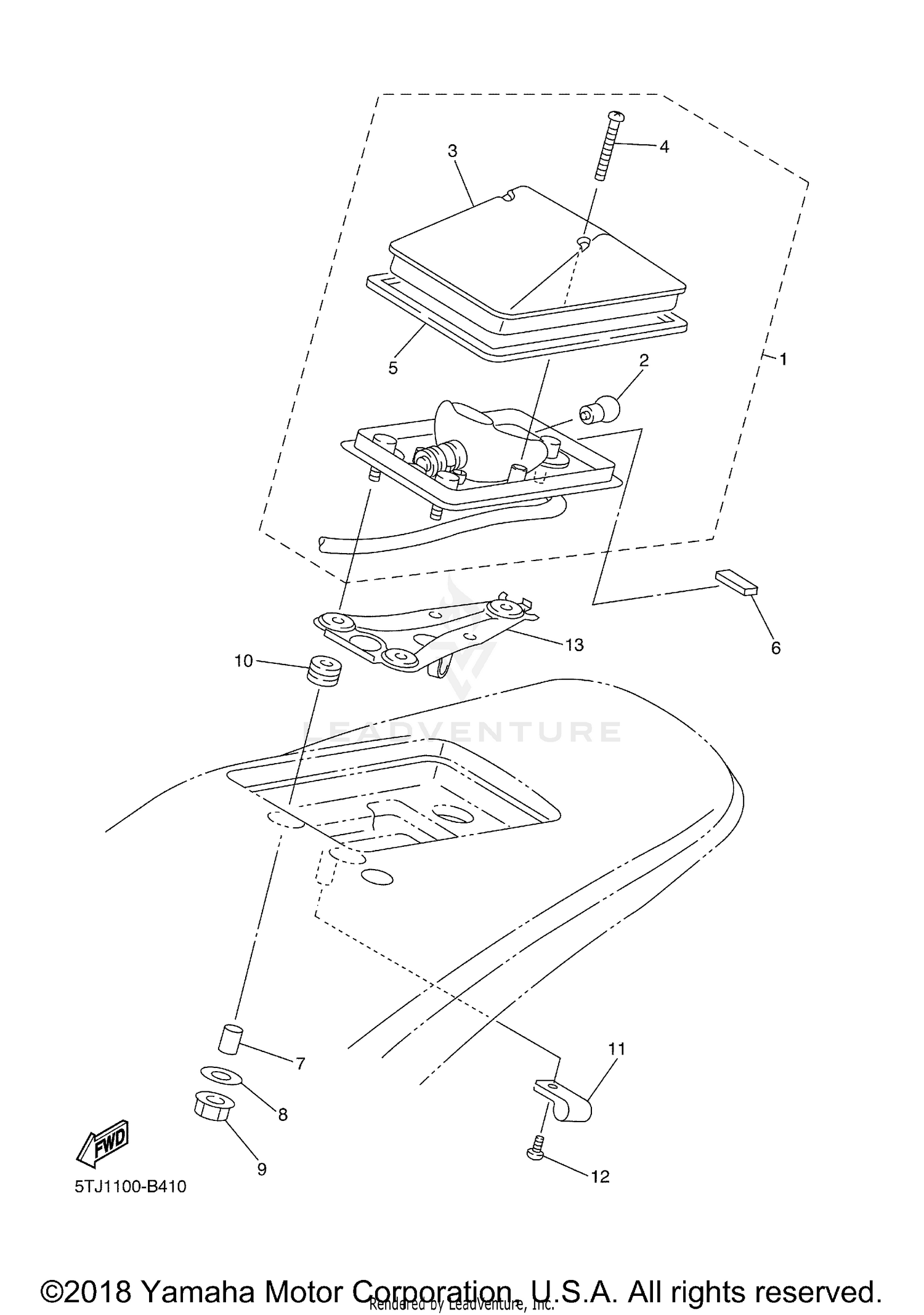

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
5TJ-84710-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-21/5W)
36Y-84714-40-00
Superseded by 1A2-84714-50-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TAILLIGHT
4GY-84733-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
97706-40530-00
Superseded by 97707-40630-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, TAIL LENS
4GY-84723-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-065L5-00
Superseded by 90387-06144-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-14102-00
Superseded by 90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90461-11099-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING
97780-40010-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, FITTING 3
5TJ-21677-00-00
|
$14.49 | ||
|
Unavailable |
|||
