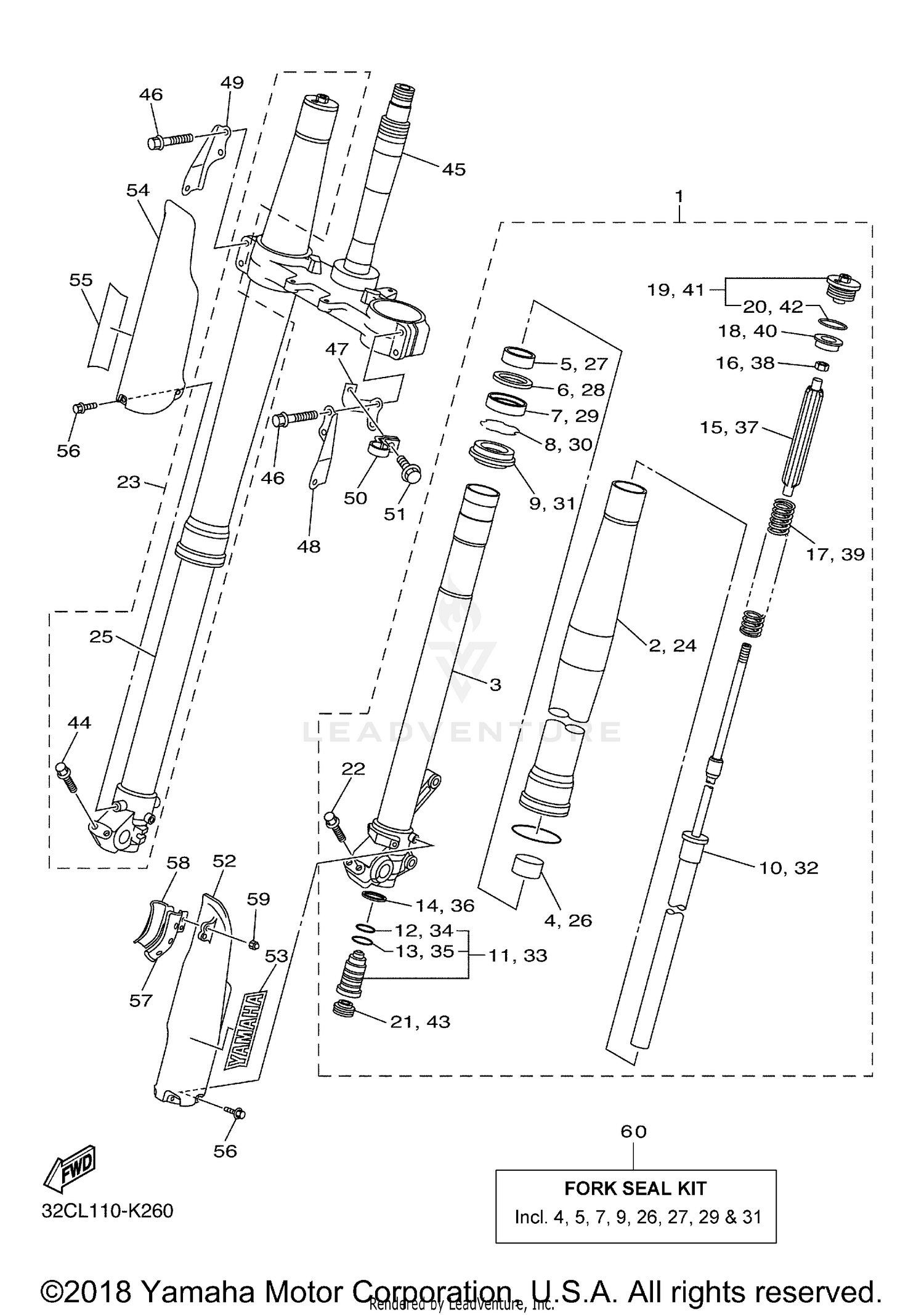

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
32D-23102-10-00
|
$1,142.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
OUTER TUBE COMP.
3D7-23106-30-00
|
$530.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 1
3D7-23110-00-00
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5ET-23171-L0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5ET-23125-L0-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5UN-23146-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
5UN-23145-L0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
4SS-23153-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5HD-23144-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
32D-23170-00-00
|
$357.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE COMP.
32D-2316A-00-00
|
$235.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (3XJ-23147-00)
4DA-23147-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
2HH-23158-L0-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, SPRING
3D7-23117-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
3XJ-23357-L0-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, FRONT FORK
32D-23141-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT, SPRING LOWER
4SS-23143-L0-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, CAP
3D7-23111-00-00
|
$293.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
3D7-23147-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, HOLE
3JD-2312G-L0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FRONT FORK ASSY (R.H)
32D-23103-10-00
|
$1,142.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OUTER TUBE COMP.
3D7-23106-30-00
|
$530.99 | ||
|
Unavailable |
|||
|
#25
INNER TUBE COMP. 2
3D7-23120-00-00
|
$527.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PISTON, FRONT FORK
5ET-23171-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#27
METAL, SLIDE 1
5ET-23125-L0-00
|
$35.99 | ||
|
Unavailable |
|||
|
#28
WASHER, OIL SEAL
5UN-23146-L0-00
|
$16.49 | ||
|
Unavailable |
|||
|
#29
OIL SEAL
5UN-23145-L0-00
|
$22.99 | ||
|
Unavailable |
|||
|
#30
RING, SNAP
4SS-23153-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#31
SEAL, DUST
5HD-23144-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#32
CYLINDER COMP., FRONT FORK
32D-23170-00-00
|
$357.99 | ||
|
Unavailable |
|||
|
#33
VALVE COMP.
32D-2316A-00-00
|
$235.99 | ||
|
Unavailable |
|||
|
#34
O-RING (3XJ-23147-00)
4DA-23147-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#35
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.26 | ||
|
Unavailable |
|||
|
#36
GASKET
2HH-23158-L0-00
|
$10.99 | ||
|
Unavailable |
|||
|
#37
GUIDE, SPRING
3D7-23117-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#38
NUT
3XJ-23357-L0-00
|
$1.04 | ||
|
Unavailable |
|||
|
#39
SPRING, FRONT FORK
32D-23141-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#40
SEAT, SPRING LOWER
4SS-23143-L0-00
|
$11.99 | ||
|
Unavailable |
|||
|
#41
BOLT, CAP
3D7-23111-00-00
|
$293.99 | ||
|
Unavailable |
|||
|
#42
O-RING
3D7-23147-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#43
PLUG, HOLE
3JD-2312G-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.99 | ||
|
Unavailable |
|||
|
#45
UNDER BRACKET COMP.
3D7-23340-00-00
|
$525.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.99 | ||
|
Unavailable |
|||
|
#47
GUIDE, CABLE
3D7-2331E-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BRACKET, REFLECTOR 1
32D-85112-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BRACKET, REFLECTOR 1
32D-85112-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
GUIDE, CABLE
5VK-23389-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
90105-05016-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#52
PROTECTOR 1
3D7-2315H-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
EMBLEM, MAIN SWITC
4XL-2153A-30-00
Superseded by 4XL-2153A-31-00
|
$10.99 | ||
|
Unavailable |
|||
|
#54
PROTECTOR 2
3D7-2315J-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
EMBLEM, MAIN SWITC
4XL-2153A-30-00
Superseded by 4XL-2153A-31-00
|
$10.99 | ||
|
Unavailable |
|||
|
#56
BOLT 2
3SP-23356-L0-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLAMP
3D7-23466-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLAMP
3D7-23467-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
NUT, CROWN
90176-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
FORK SEAL KIT
5ET-W0003-B0-00
|
|||
|
Unavailable |
|||
