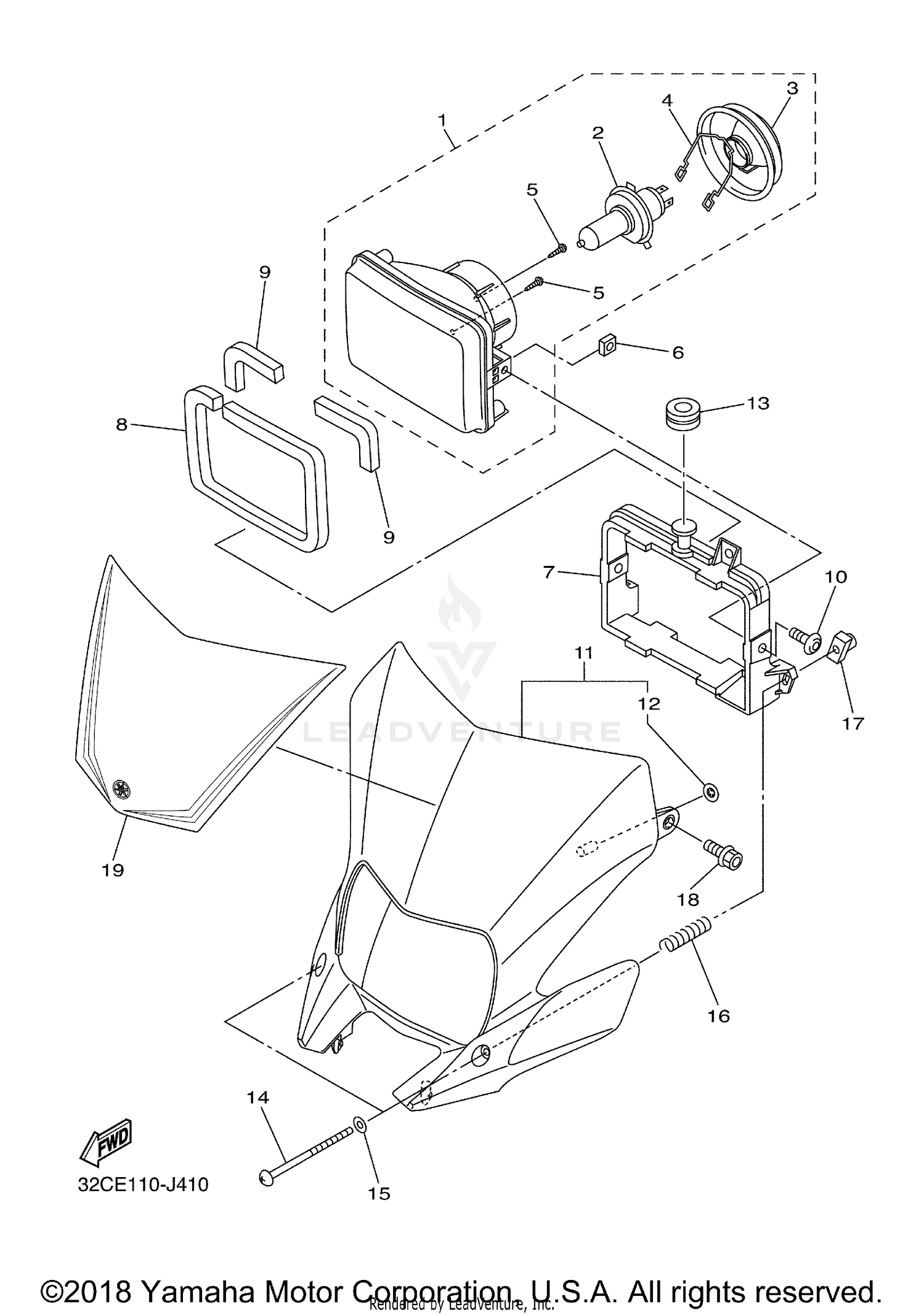

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
32C-84310-00-00
|
$371.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, HEADLIGHT (12V-60/55W)
32D-84314-00-00
Superseded by 8V0-84314-10-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP
32D-84378-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
32D-84335-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
32D-84726-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
32D-84117-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, HEADLIGHT 1
32D-84118-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
32D-84527-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
32D-84553-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY ASSY
32D-84330-10-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-05068-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-16008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, ADJUSTING
341-84331-60-00
Superseded by 90157-04001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, SCREW
341-84332-60-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, ADJUSTING
198-84334-60-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-06064-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#19
GRAPHIC
32D-8411B-40-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
