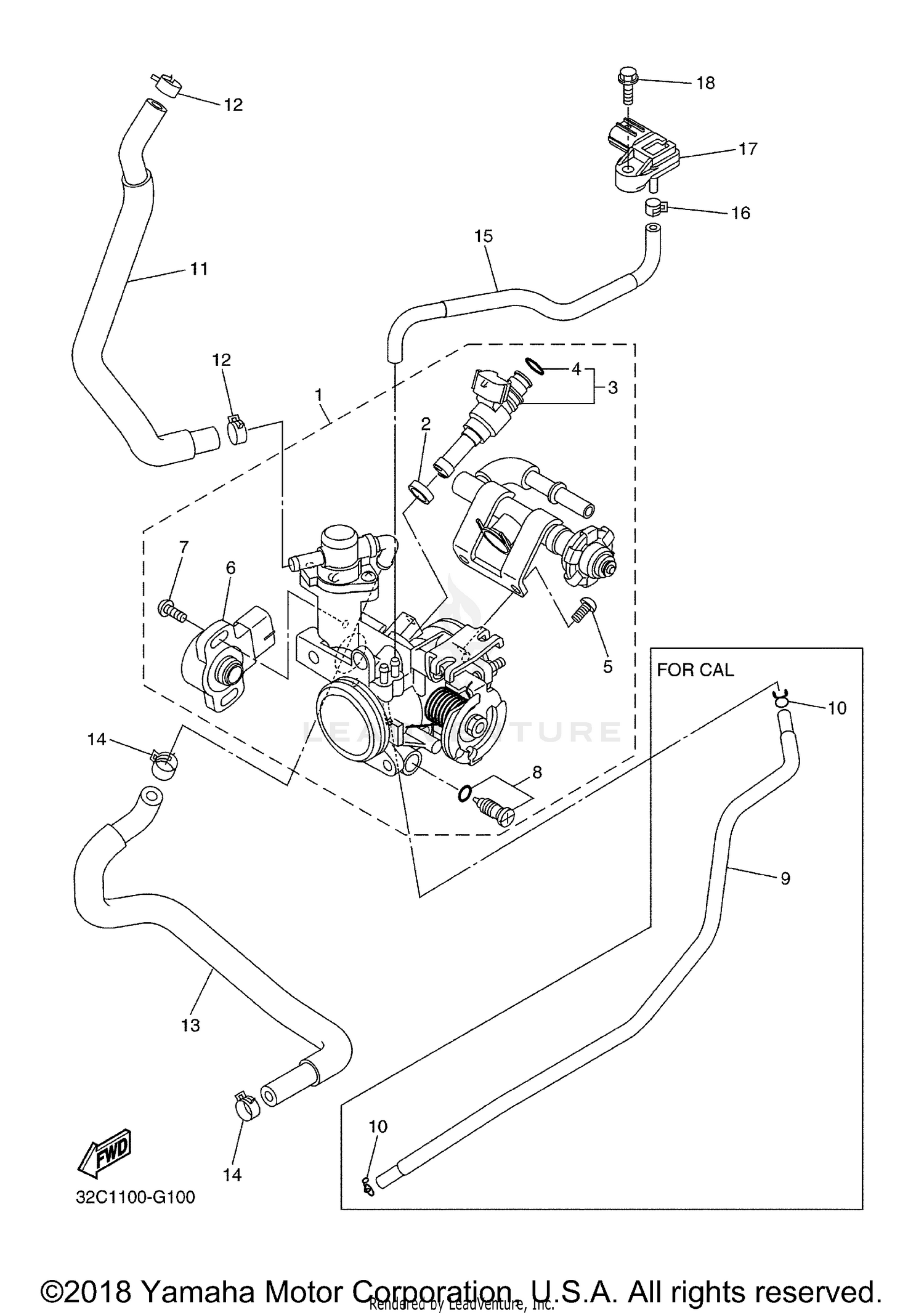

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
3D7-13750-10-00
|
$655.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
THROTTLE BODY ASSY
32C-13750-00-00
|
$654.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, INJECTOR
8FP-13556-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
INJECTOR
4C8-13761-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
5PS-14147-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
THROTTLE SENSOR ASSY
3P6-85885-00-00
Superseded by 3P6-85885-01-00
|
$297.99 | ||
|
Unavailable |
|||
|
#7
SCREW
8CC-14216-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
AIR SCREW SET
1S4-14104-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE 12
32C-24323-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE 1
3D7-1243A-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-110A2-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 2
3D7-1243E-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-110A2-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
HOSE, VACUUM SENSING 1
3D7-13542-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-070A0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR, PRESSURE
2C0-82380-00-00
Superseded by 1WS-82380-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95022-06020-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
