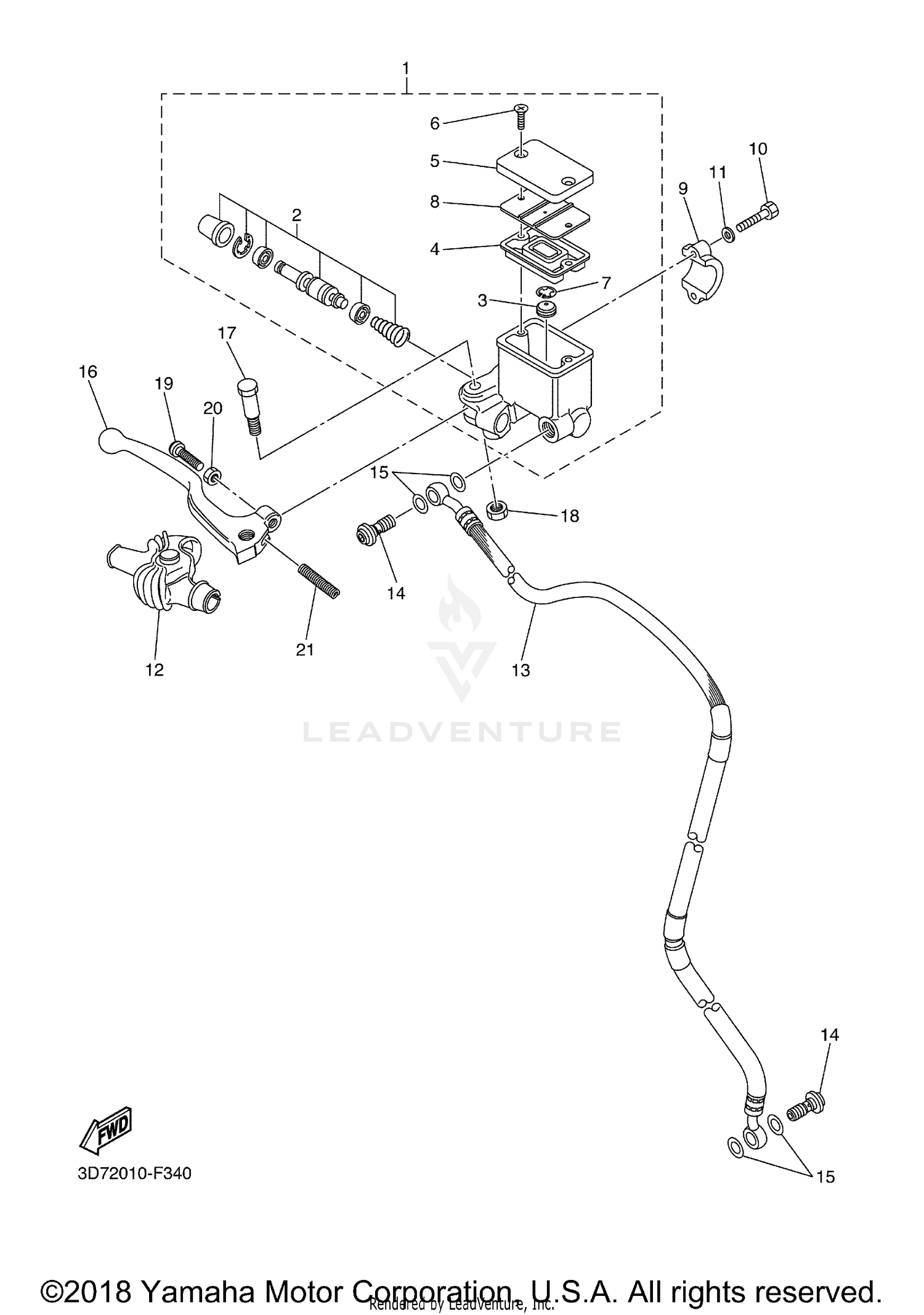

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
3D7-W2587-10-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYL KIT,MASTER
59X-W0041-00-00
Superseded by 5VK-25807-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEPARATOR ASSY
5CG-25715-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
55U-25854-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RESERVOIR
3GM-25852-22-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, FLAT HEAD
98707-04012-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
5CG-2585G-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, DIAPHRAGM
3GM-2585B-20-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, HANDLE LEVER 1
1T5-26372-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, BRAKE 1
3D7-25872-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-10005-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER 2
55Y-83922-01-00
Superseded by 55Y-83922-02-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06131-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90170-06021-00
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-10312-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
