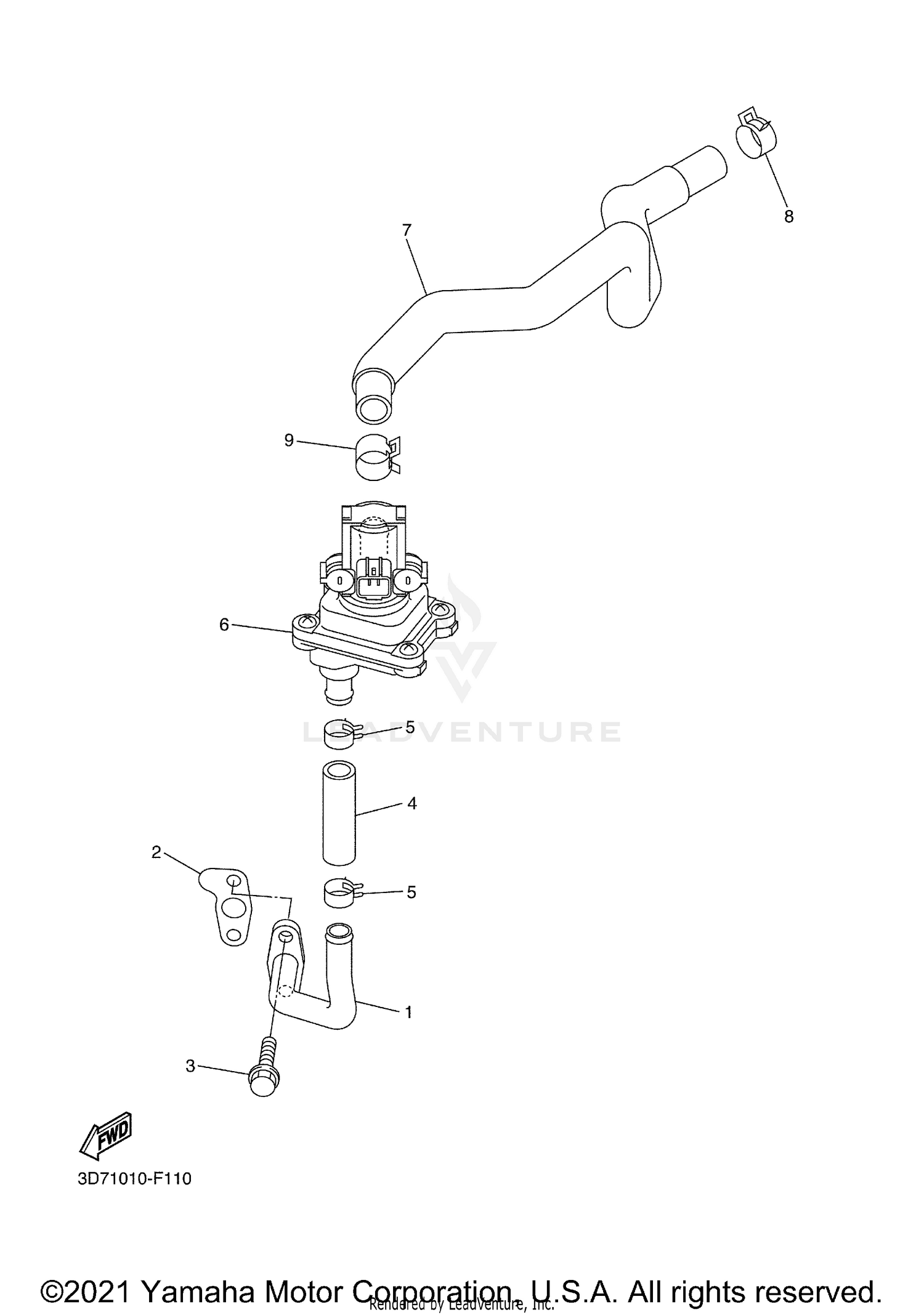

Air Induction System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 1
3D7-14871-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
5GM-14815-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95022-06016-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 3
3D7-14873-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-16098-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
AIR INDUCTION SYSTEM ASSY
3D7-14803-00-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, BEND 2
3D7-14882-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90467-170A3-00
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
