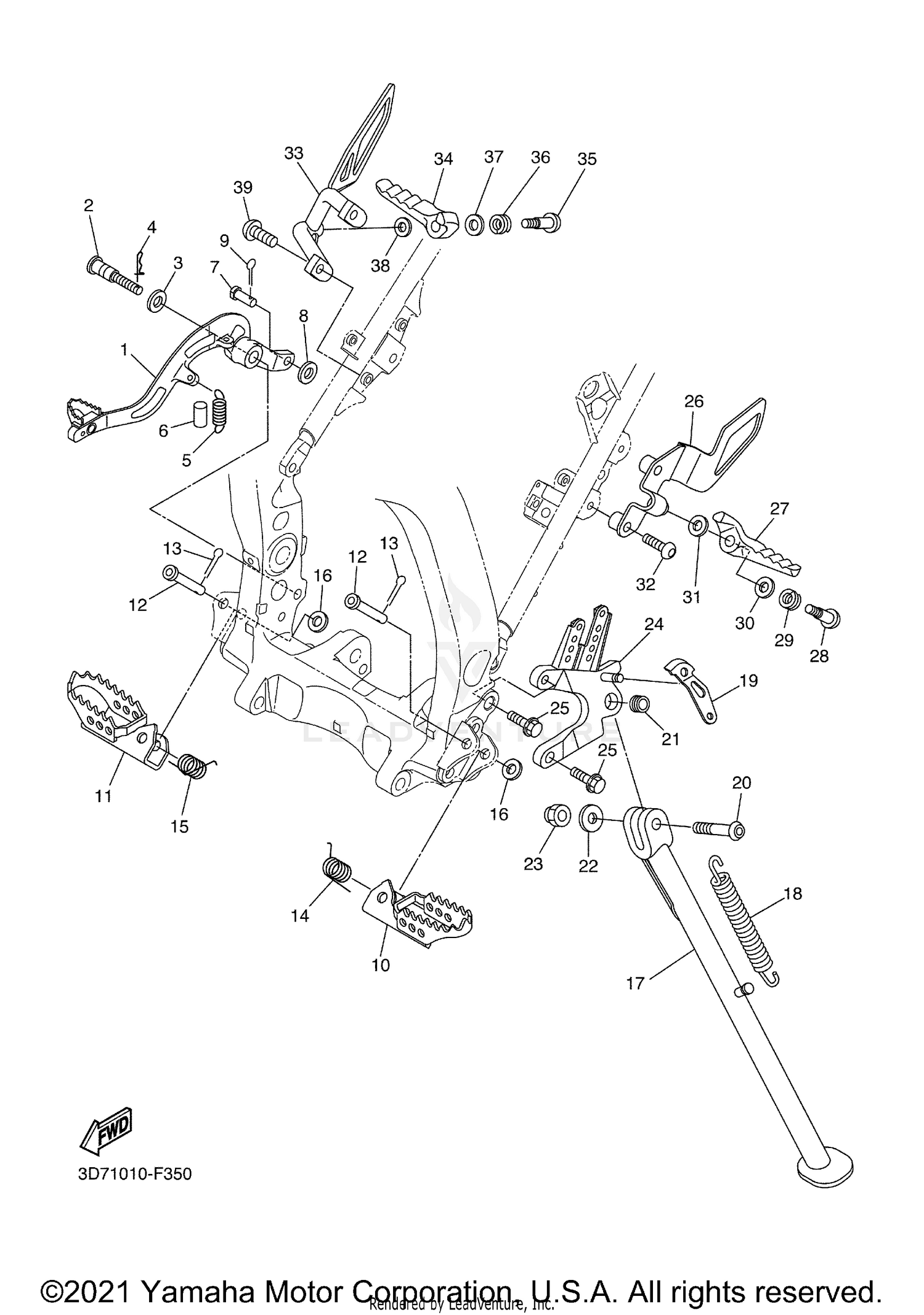

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
3D7-27200-00-00
Superseded by 3D7-27200-11-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
3D7-27217-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08060-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
90468-16191-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-16007-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE
90445-16012-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, CLEVIS
90240-08120-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08044-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST 1
3D7-27411-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FOOTREST 2
3D7-27421-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, CLEVIS
90240-10004-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TORSION
90508-28016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TORSION
90508-28020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10119-00
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAND, SIDE
3D7-27311-11-00
Superseded by 3D7-27311-12-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, TENSION
90506-35473-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LINK, SIDE STAND
3D7-27315-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-10007-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-1003G-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-10200-00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U
95612-10100-00
Superseded by 95617-10100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, SIDE STAND
3D7-27321-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-10244-00
Superseded by 90105-10245-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET 1
3D7-27432-11-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FOOTREST, REAR 1
3XP-27431-02-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-085F5-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, COMPRESSION
90504-18005-00
Superseded by 90504-18031-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92907-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-083P5-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, BUTTON HEAD
92012-08030-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRACKET 2
3D7-27442-01-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FOOTREST, REAR 2
3XP-27441-02-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
90109-085F5-00
|
$4.99 | ||
|
Unavailable |
|||
|
#36
SPRING, COMPRESSION
90504-18005-00
Superseded by 90504-18031-00
|
$8.99 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
92907-10600-00
|
$7.99 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE
90201-083P5-00
|
$5.49 | ||
|
Unavailable |
|||
|
#39
BOLT, BUTTON HEAD
90111-08047-00
Superseded by 92012-08020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
