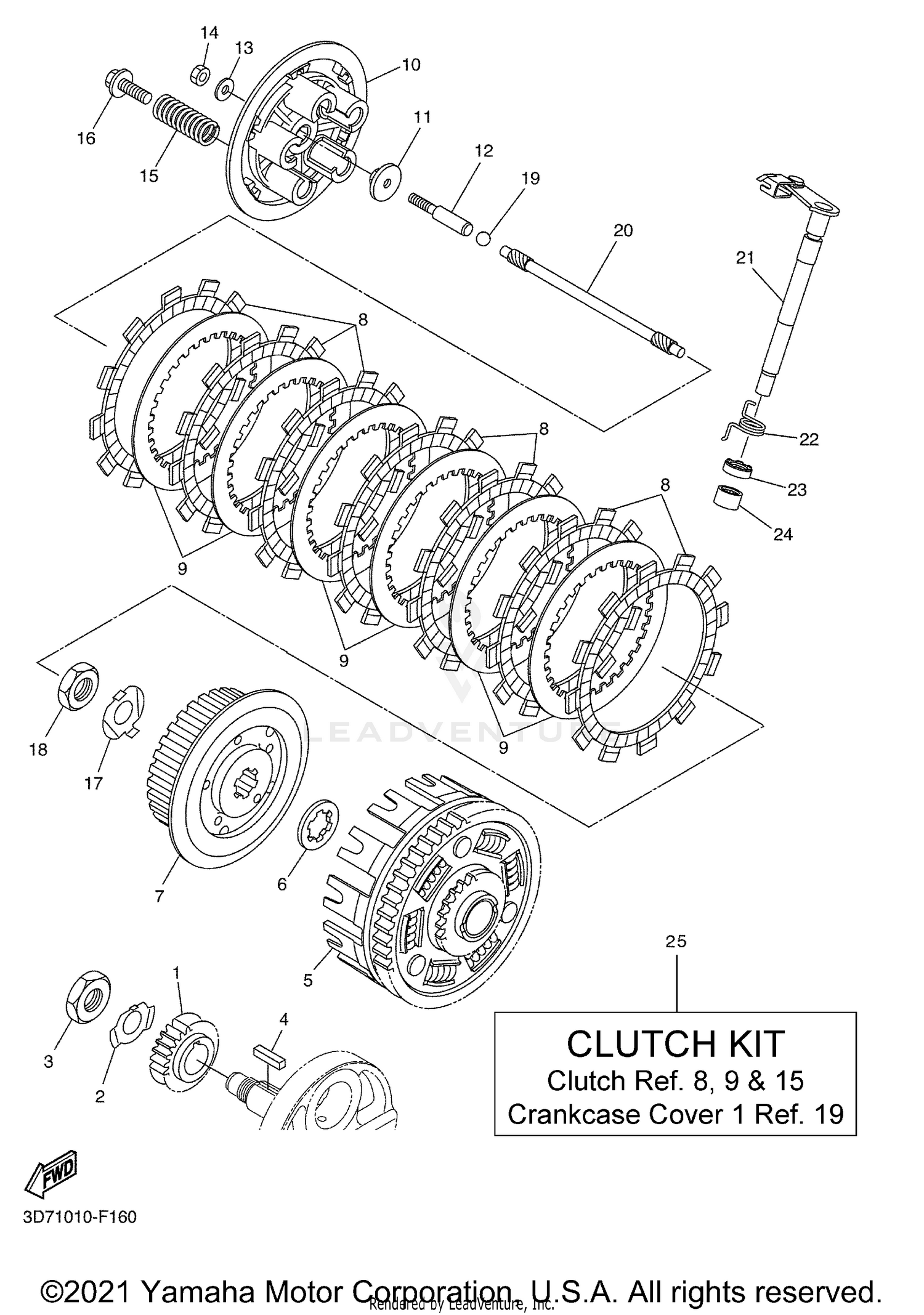

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
3D7-16111-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, LOCK
90215-16001-00
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90170-16343-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, STRAIGHT
90282-05009-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY DRIVEN GEAR COMP.
3D7-16150-00-00
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, THRUST 1
30X-16154-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
3D7-16371-00-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FRICTION
3XJ-16321-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH 1
3XJ-16324-01-00
Superseded by 3XJ-16324-10-00
|
$13.49 | ||
|
Unavailable |
|||
|
#10
PLATE, PRESSURE 1
3D7-16351-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, PUSH
1W1-16358-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, PUSH 1
3D7-16356-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92902-06200-00
Superseded by 92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95302-06600-00
Superseded by 95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, COMPRESSION
90501-23391-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, WITH WASHER
90159-06010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, LOCK
90215-16289-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90170-16326-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BALL
93511-32027-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, PUSH 2
3D7-16357-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PUSH LEVER ASSY
3D7-16380-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TORSION
90508-18052-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-12004-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93317-11295-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH PLATE KIT
2CF-W001G-00-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
