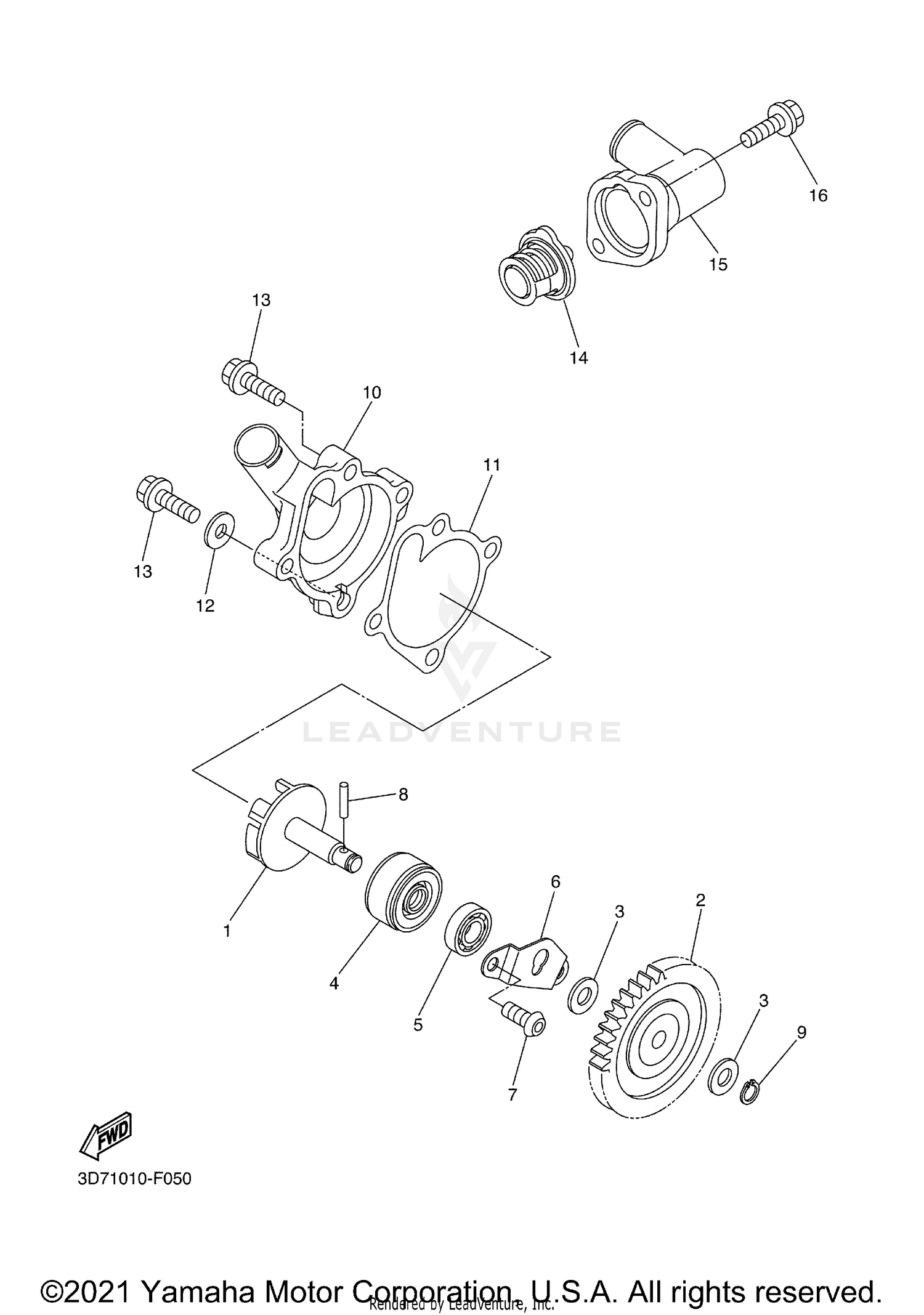

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER SHAFT ASSY
3D7-12450-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR
3D7-12453-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08073-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93103-10011-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-90001-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE
3D7-12681-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
90149-06083-00
Superseded by 90149-06084-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93603-17070-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99009-08400-00
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, HOUSING
3D7-12422-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, HOUSING COVER 2
3D7-12428-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06025-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, ANSI SVIA
4D9-12411-00-00
Superseded by 4D9-12411-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#15
COVER, THERMOSTAT
3D7-12413-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95022-06020-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
