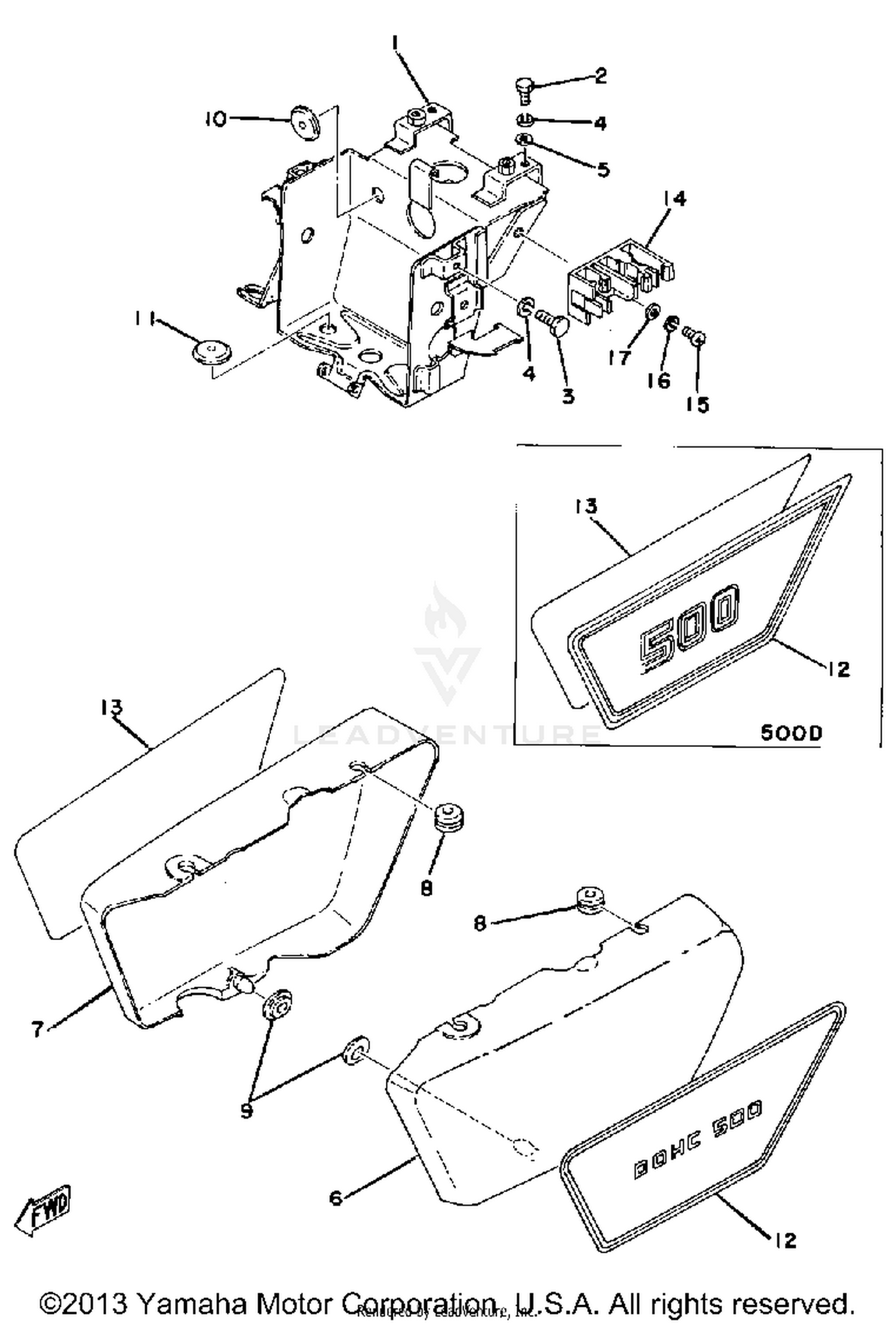

Battery Box - Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX, BATT.
1J3-21170-02-33
|
$35.38 | ||
|
Unavailable |
|||
|
#2
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SIDE 1
1A8-21711-00-R7
|
$44.75 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
1A8-21711-00-U1
|
$40.68 | ||
|
Unavailable |
|||
|
#7
COVER, SIDE 2
1A8-21721-00-R7
|
$44.75 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
1A8-21721-00-U1
|
$40.60 | ||
|
Unavailable |
|||
|
#8
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAD, BATTERY
371-82121-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAD, BATTERY
371-82126-00-00
|
$0.70 | ||
|
Unavailable |
|||
|
#12
EMBLEM 4
1A8-21784-03-00
|
$8.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 4
1J3-21784-10-00
|
$8.06 | ||
|
Unavailable |
|||
|
#13
EMBLEM 6
1J3-21786-10-00
|
$6.26 | ||
|
Unavailable |
|||
|
#
EMBLEM 6
1A8-21786-03-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
HOLDER, KNOB
1J3-21794-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
