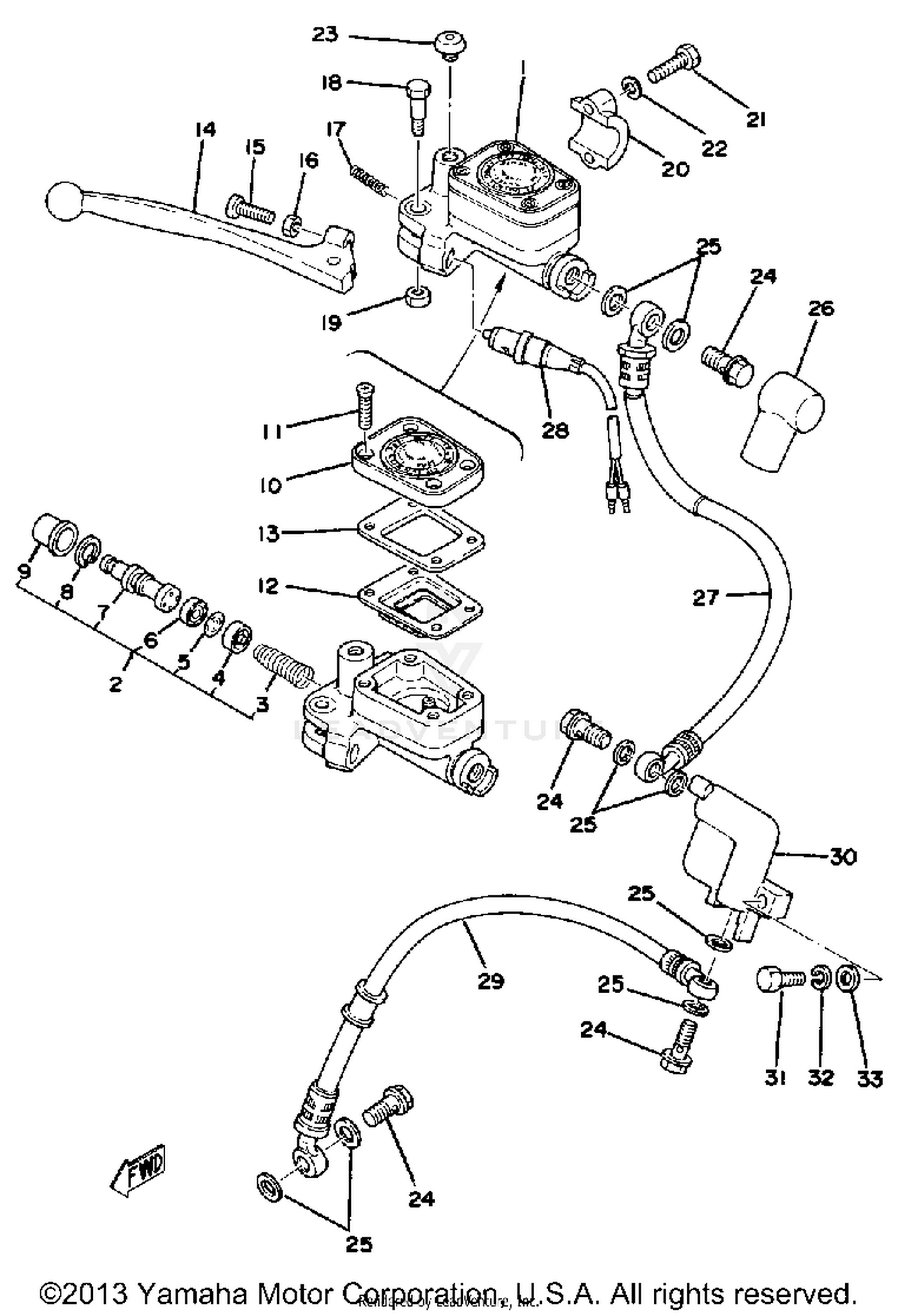

Master Cylinder - Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
1J3-25850-02-00
|
$212.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
535-W0041-60-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RESERVOIR CAP ASSY
1J3-25852-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#11
SCREW, FLAT HEAD
90151-05008-00
Superseded by 98707-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAM, RESERVOIR
1J3-25854-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
1J3-25855-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#14
LEVER R
341-83922-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#15
SCREW
90146-06005-00
|
$3.00 | ||
|
Unavailable |
|||
|
#16
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-06465-00
Superseded by 90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, MASTER
1J3-25867-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#21
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOOT, MASTER CYLINDER
306-25862-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE, BRAKE 2
1J3-25873-02-00
|
$19.49 | ||
|
Unavailable |
|||
|
#28
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, BRAKE
1J3-25874-01-00
|
$29.94 | ||
|
Unavailable |
|||
|
#30
JOINT
1J3-25885-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#31
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
