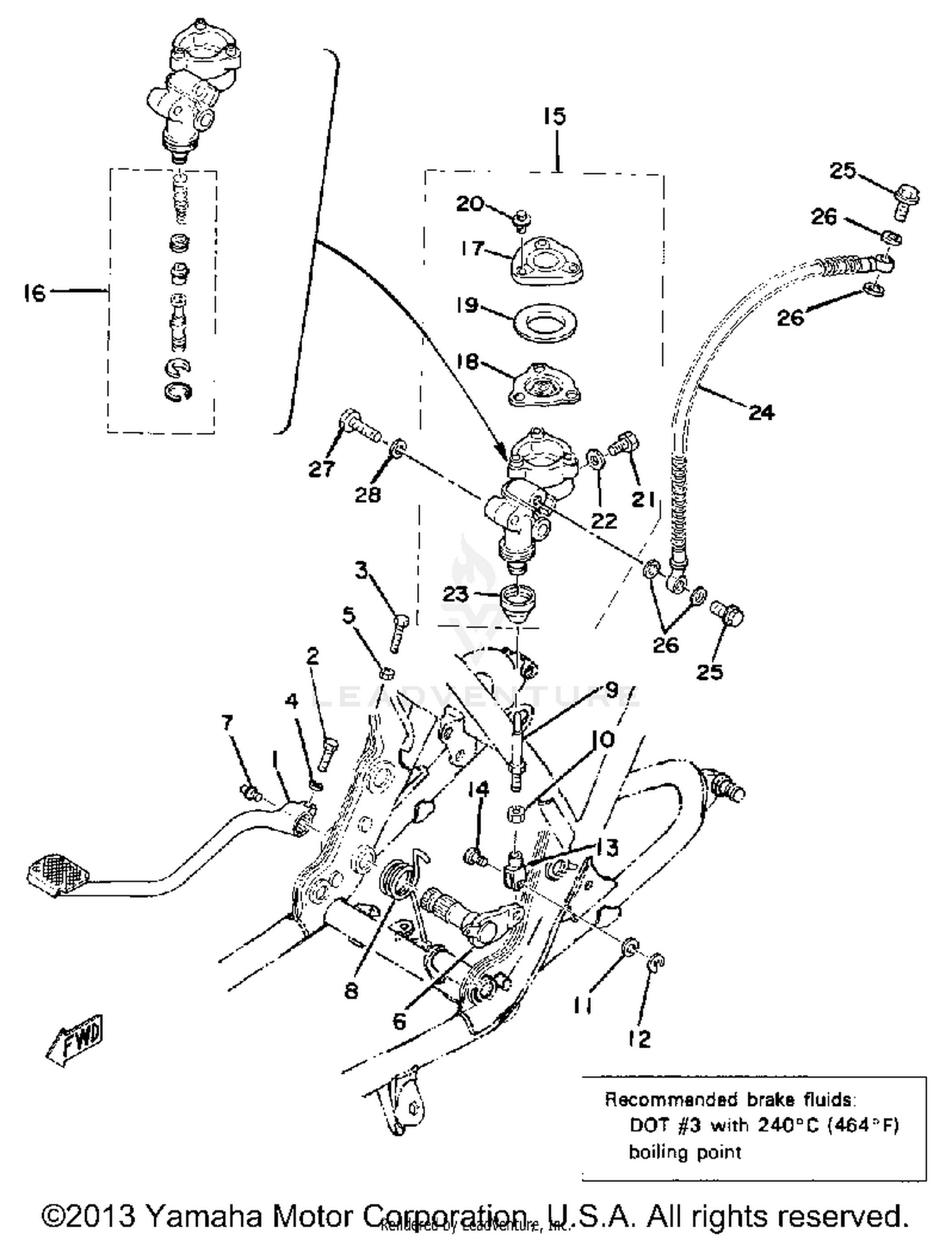

Brake Pedal - Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
1J3-27211-00-93
|
$31.04 | ||
|
Unavailable |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, BRAKE PEDAL
1J3-27212-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#7
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TORSION
90508-35306-00
|
$1.59 | ||
|
Unavailable |
|||
|
#9
ROD, BRAKE
1A1-27231-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
1A1-27222-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#14
PIN, SPEC''L SHAPE
90249-08124-00
|
$3.07 | ||
|
Unavailable |
|||
|
#15
MSTR CYLINDER ASSEMBLY
1J3-25850-52-00
|
$186.99 | ||
|
Unavailable |
|||
|
#16
CYLINDER KIT, MASTER (1J3-200
1J3-W0042-50-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, RESERVOIR
1J3-25852-52-00
|
$20.99 | ||
|
Unavailable |
|||
|
#18
DIAPHRAGM RESERVOR
1J3-25854-51-00
|
$20.99 | ||
|
Unavailable |
|||
|
#19
BUSH, DIAPHRAGM
1J3-25855-51-00
|
$6.68 | ||
|
Unavailable |
|||
|
#20
SCREW, HEXAGON
90153-05014-00
|
$2.17 | ||
|
Unavailable |
|||
|
#21
SCREW, hexagon
90153-10015-00
|
$7.99 | ||
|
Unavailable |
|||
|
#22
WASHER, plate
90201-10610-00
|
$4.65 | ||
|
Unavailable |
|||
|
#23
BOOT, MASTER CYLINDER
1J3-25862-50-00
|
$7.94 | ||
|
Unavailable |
|||
|
#24
HOSE, BRAKE 1
1J3-25872-50-00
|
$28.86 | ||
|
Unavailable |
|||
|
#25
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
