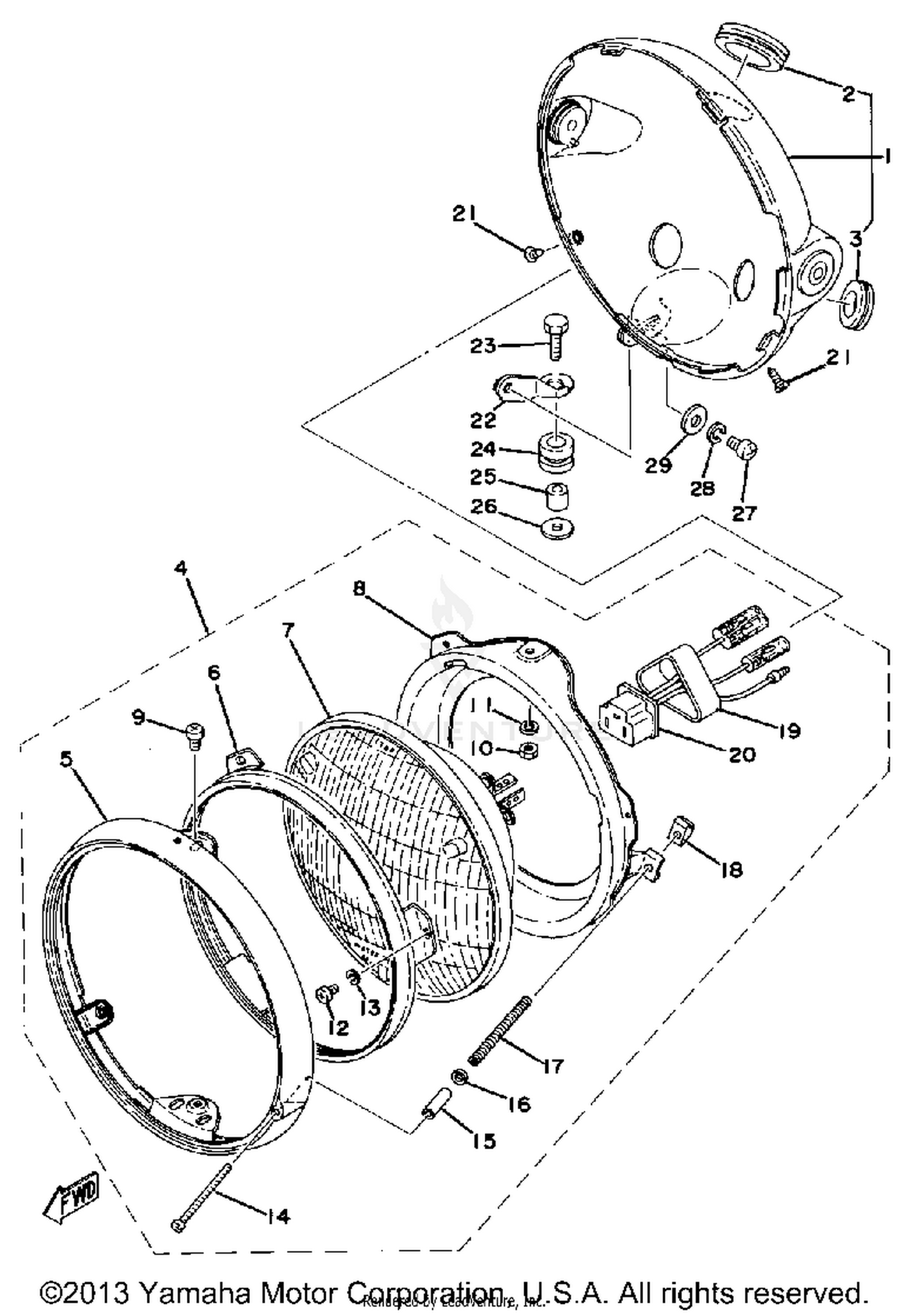

Head Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
371-84330-61-33
|
$56.99 | ||
|
Unavailable |
|||
|
#2
GROMMET, WIREHARNESS
214-84153-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, WIRE HARNESS
150-84153-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS ASSEMBLY
341-84320-60-00
|
$94.99 | ||
|
Unavailable |
|||
|
#5
RIM, HEADLIGHT
341-84315-40-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, RETAINING
2F9-84395-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LENS ASSEMBLY
341-84320-60-00
|
$94.99 | ||
|
Unavailable |
|||
|
#8
RING, MOUNTING
2F9-84394-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, SCREW
341-84333-60-00
|
$4.10 | ||
|
Unavailable |
|||
|
#16
WASHER
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Unavailable |
|||
|
#20
SOCKET
371-84312-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, HEADLIGHT 1
1A8-84318-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#23
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
