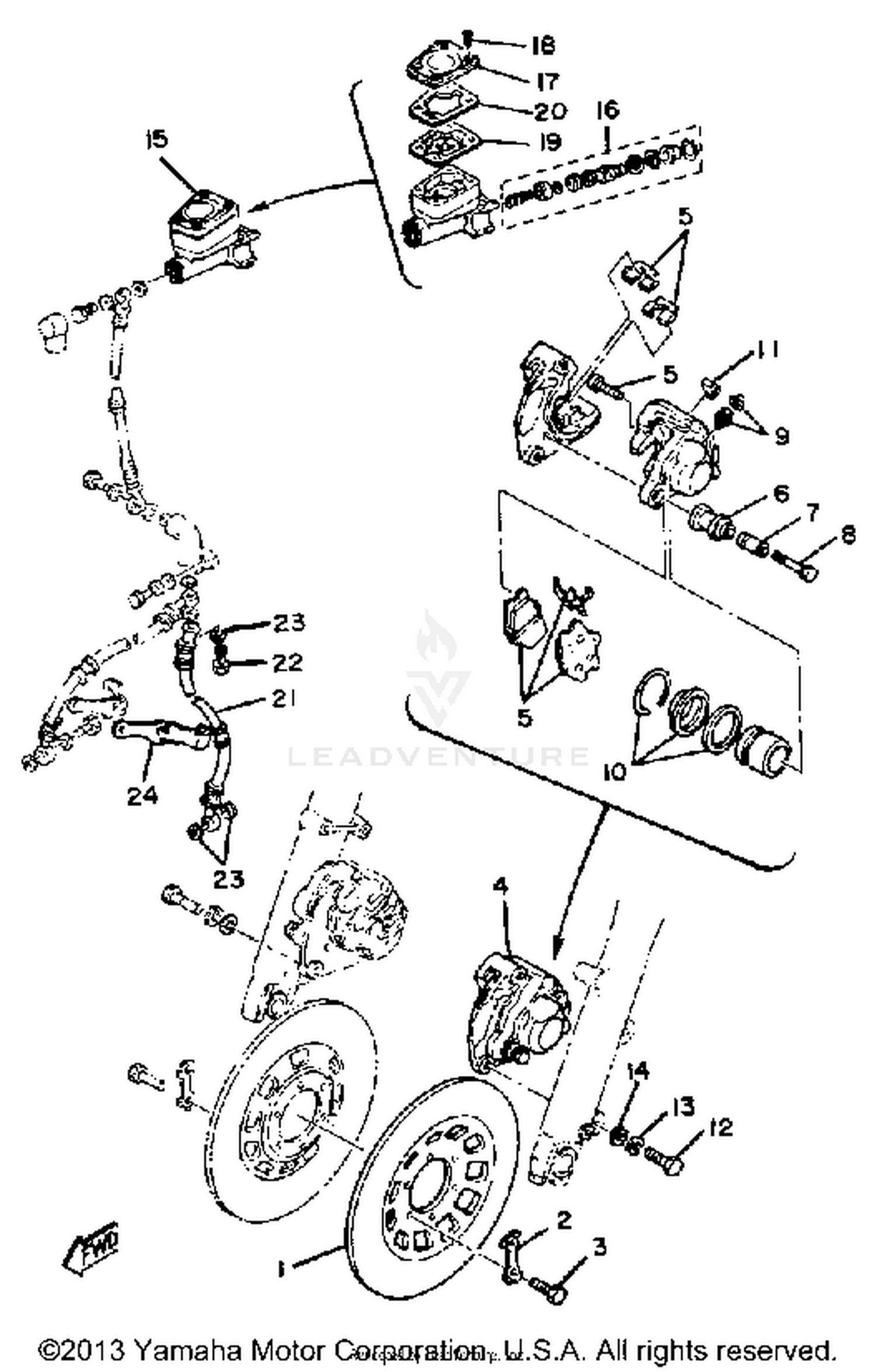

Double Disc Brakes Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
1J3-25831-00-00
|
$274.99 | ||
|
Unavailable |
|||
|
#2
WASHER, LOCK
1J3-25834-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-08312-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSEMBLY LH
3H5-25810-12-00
|
$336.99 | ||
|
Unavailable |
|||
|
#5
BRAKE PAD KIT,FRNT
4K0-W0045-01-00
Superseded by 4K0-W0045-02-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT, CALIPER
1J3-25917-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SLEEVE, CALIPER
1J3-25838-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#8
BOLT, WASHER BASED
90105-08145-00
|
$8.99 | ||
|
Unavailable |
|||
|
#9
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CALIPER SEAL KIT
1J3-W0047-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, INDICATOR
1J3-25845-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
MSTR CYLINDER ASSEMBLY
2G2-25850-01-00
|
$169.99 | ||
|
Unavailable |
|||
|
#16
CYLINDER KIT, MASTER
1J3-W0041-20-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RESERVOIR CAP ASSY
1J3-25852-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#18
SCREW
2G2-25857-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#19
DIAPHRAM, RESERVOIR
1J3-25854-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
1J3-25855-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#21
HOSE BRK ASY
1T3-25873-00-00
Superseded by 99999-02813-00
|
$92.99 | ||
|
Unavailable |
|||
|
#22
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRKE HOSE 2
1J3-25876-02-00
|
$42.99 | ||
|
Unavailable |
|||
