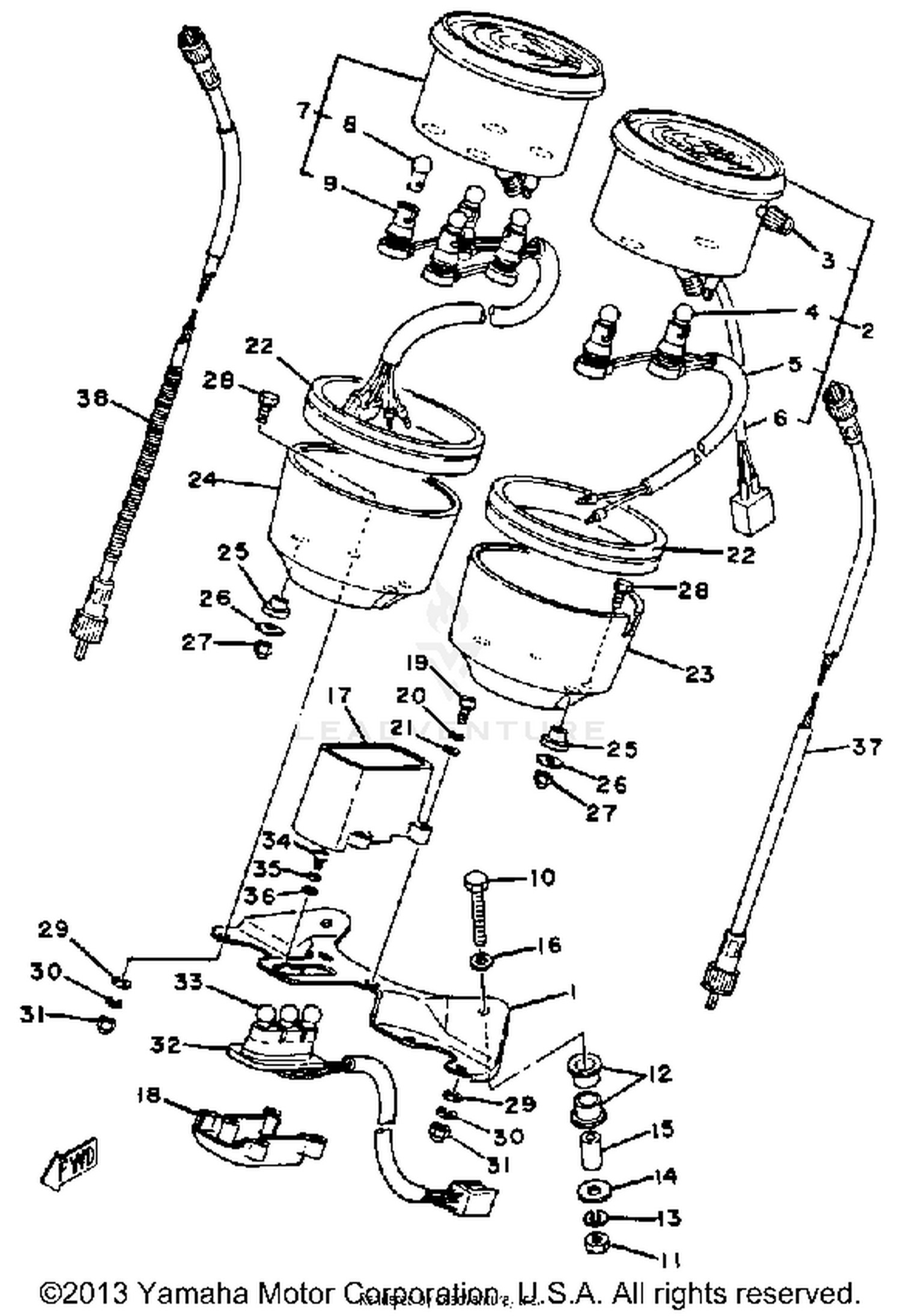

Speedometer - Tachometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, METER
2M0-83519-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#2
SPEEDOMETER ASSEMBLY
3G0-83570-A0-00
|
$168.99 | ||
|
Unavailable |
|||
|
#3
KNOB, TRIP METER
584-83578-71-00
Superseded by 4SV-83578-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET CORD ASSEMBLY (15A-835
5E2-83509-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#6
SENDER
2J2-83556-00-00
|
$15.04 | ||
|
Unavailable |
|||
|
#7
TACHOMETER ASSEMBLY
3G0-83540-A0-00
|
$195.99 | ||
|
Unavailable |
|||
|
#8
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#9
SOCKET CORD ASSEMBLY
3G0-83520-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#10
BOLT
97006-06040-00
Superseded by 97017-06040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
584-83541-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06249-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
PILOT BOX, UPPER
2M0-83568-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#18
PILOT BOX, LOWER
2G2-83569-A0-00
|
$11.99 | ||
|
Unavailable |
|||
|
#19
SCREW,PANHEAD
98506-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92906-04100-00
Superseded by 92907-04100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
3H3-83513-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, SPEEDOMETER
2J2-83507-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, TACHOMETER
2J2-83508-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER
584-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-05031-00
Superseded by 90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#28
BOLT
584-83546-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SOCKET CORD ASSEMBLY
3G1-83509-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#33
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
92503-04008-00
|
$1.00 | ||
|
Unavailable |
|||
|
#35
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
TACHOMETER CABLE
447-83560-01-00
|
$45.99 | ||
|
Unavailable |
|||
