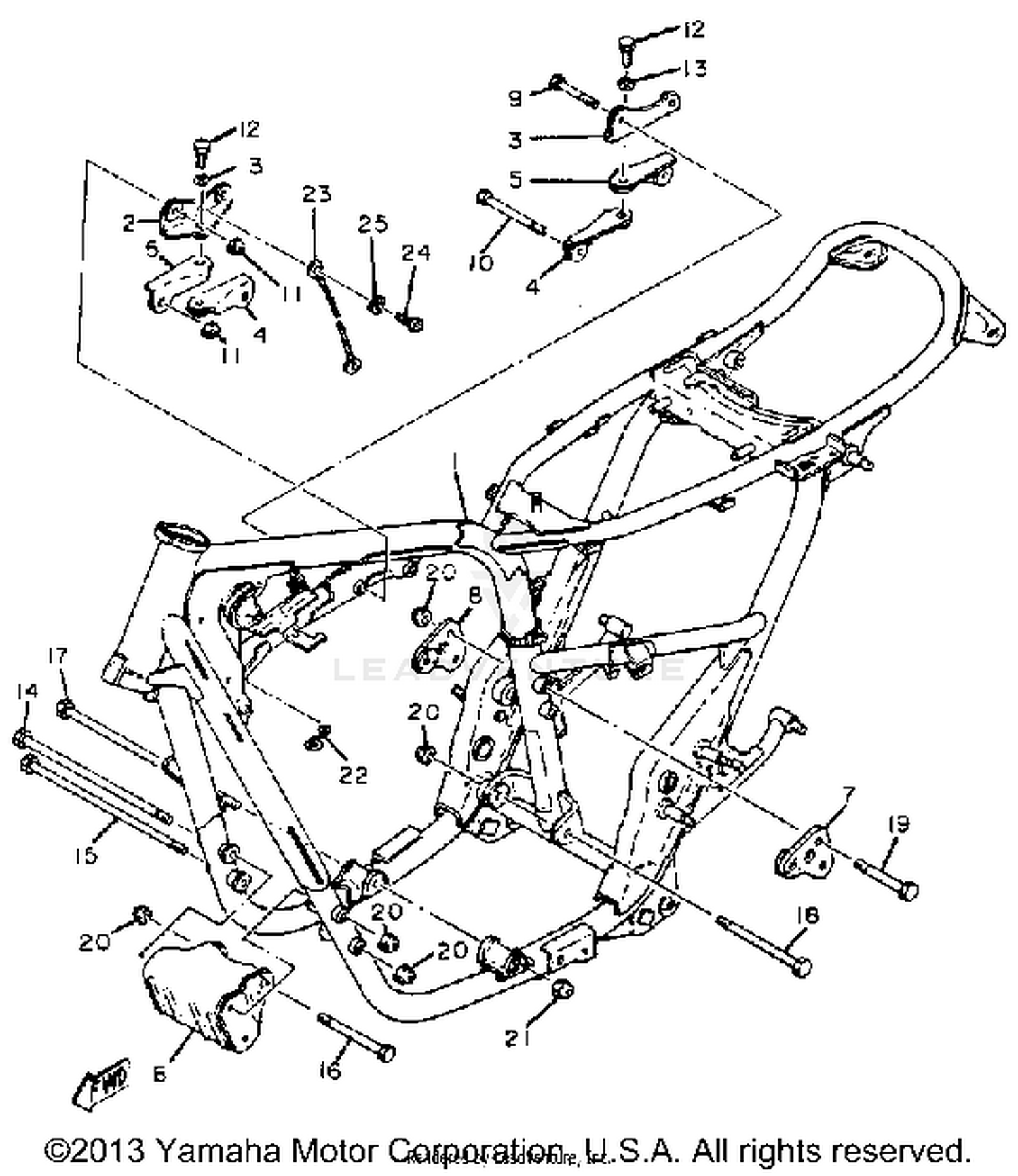

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
3G0-21110-00-33
|
$531.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 1
447-21314-00-00
|
$11.84 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 2
447-21315-00-00
|
$10.80 | ||
|
Unavailable |
|||
|
#4
STAY, ENGINE 3
256-21316-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
STAY, ENGINE 4
256-21317-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
STAY, ENGINE 5
447-21318-00-98
|
$69.99 | ||
|
Unavailable |
|||
|
#7
STAY, ENGINE 6
447-21319-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#8
STAY, ENGINE 7
447-21387-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95811-08090-00
Superseded by 95817-08090-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WASHER BASED
90105-10235-00
Superseded by 90105-10139-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-10044-00
Superseded by 90105-10N53-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10039-00
Superseded by 90105-10747-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, DOME HEAD
90106-10029-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
BOLT,WASHER BASED
90105-10119-00
Superseded by 90109-101A0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95811-10070-00
Superseded by 95817-10070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Unavailable |
|||
|
#22
CLAMP
90465-20138-00
|
$1.49 | ||
|
Unavailable |
|||
|
#23
WIRE, LEAD
256-81615-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
