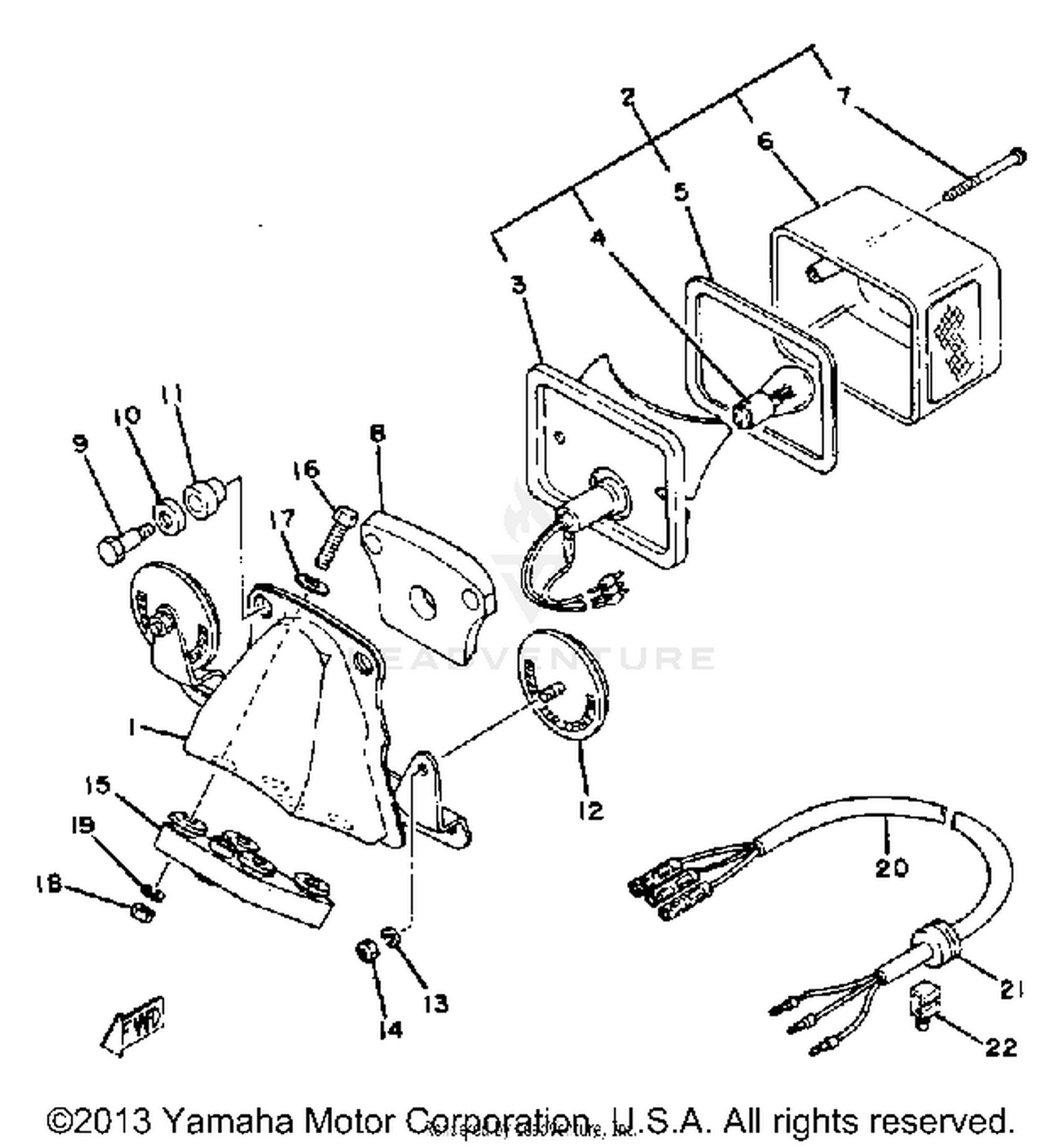

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, LICENSE
2J2-84751-00-93
|
$65.88 | ||
|
Unavailable |
|||
|
#2
TAILLIGHT UNIT ASSY
1W9-84710-60-00
Superseded by 1W9-84710-61-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAILLIGHT UNIT ASSY
2J2-84711-60-00
Superseded by 1W9-84710-61-00
|
$105.99 | ||
|
Unavailable |
|||
|
#4
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, LENS
1M1-84523-60-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS, TAILLIGHT
1M1-84521-60-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT, BASE
1M1-84512-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
1M1-84526-60-00
Superseded by 90109-06005-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL
2H7-84754-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
1M1-84527-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
REFLECTOR, REAR 1
449-85131-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER
2M0-84753-00-00
|
$10.60 | ||
|
Unavailable |
|||
|
#16
BOLT (338-84552-00-00)
90109-06022-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CORD, TAIL LIGHT
438-84517-00-00
|
$13.48 | ||
|
Unavailable |
|||
|
#21
GROMMET
90480-15061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-04014-00
|
$1.65 | ||
|
Unavailable |
|||
