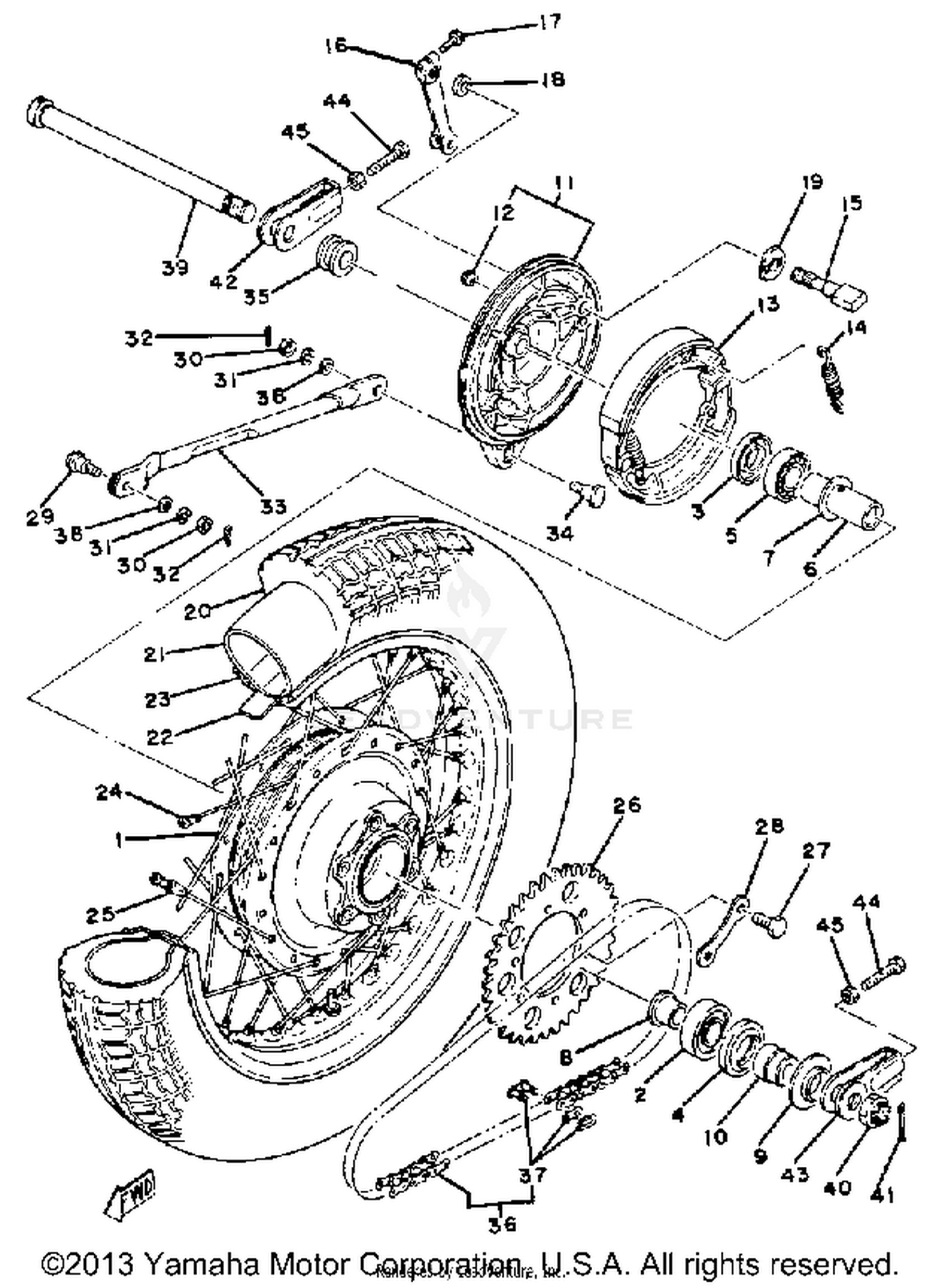

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
256-25311-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#2
BRG,R-B 6305ZZ 62MM
93306-30507-00
Superseded by 93306-305U0-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL, SO-TYPE
93104-27026-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL, SD-TYPE
93102-35065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
90560-20135-00
|
$11.99 | ||
|
Unavailable |
|||
|
#7
FLANGE, SPACER
4V4-25315-00-00
|
$3.10 | ||
|
Unavailable |
|||
|
#8
COLLAR
90387-20166-00
|
$19.99 | ||
|
Unavailable |
|||
|
#9
COVER, HUB DUST
256-25367-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-20176-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
BRAKE SHOE PLT ASSEMBLY
1T3-25026-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKE SHOE KIT
4L0-W2536-00-00
Superseded by 5R3-W253E-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAMSHAFT
1T3-25351-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#16
LEVER, CAMSHAFT
341-25355-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#17
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-14218-00
Superseded by 90201-15797-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
130/90S16 S21R
94113-16388-00
|
$63.82 | ||
|
Unavailable |
|||
|
#21
TUBE 130/90-16
94213-16135-00
|
$17.49 | ||
|
Unavailable |
|||
|
#22
BAND, RIM (1.60-16)
94330-16058-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIM 2.75X16
94427-16226-00
|
$166.99 | ||
|
Unavailable |
|||
|
#24
SPOKE SET, REAR
3G0-25304-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#25
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET,DRIVN 34T
256-25434-20-33
Superseded by 256-25434-20-00
|
$60.99 | ||
|
Unavailable |
|||
|
#27
BOLT
90105-10007-00
Superseded by 90101-10303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
256-25412-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90109-08374-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAR, TENSION
2M1-25371-00-00
|
$28.81 | ||
|
Unavailable |
|||
|
#34
BOLT
90109-08338-00
|
$4.20 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-20444-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
50HDS-104L
94580-05104-00
|
$110.99 | ||
|
Unavailable |
|||
|
#37
CHAIN JOINT
94680-05011-00
|
$3.60 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
AXLE, WHEEL
341-25381-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#40
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#41
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PULLER, CHAIN 1
341-25388-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#43
PULLER, CHAIN 2
341-25389-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#44
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, HEXAGON
90170-08158-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
