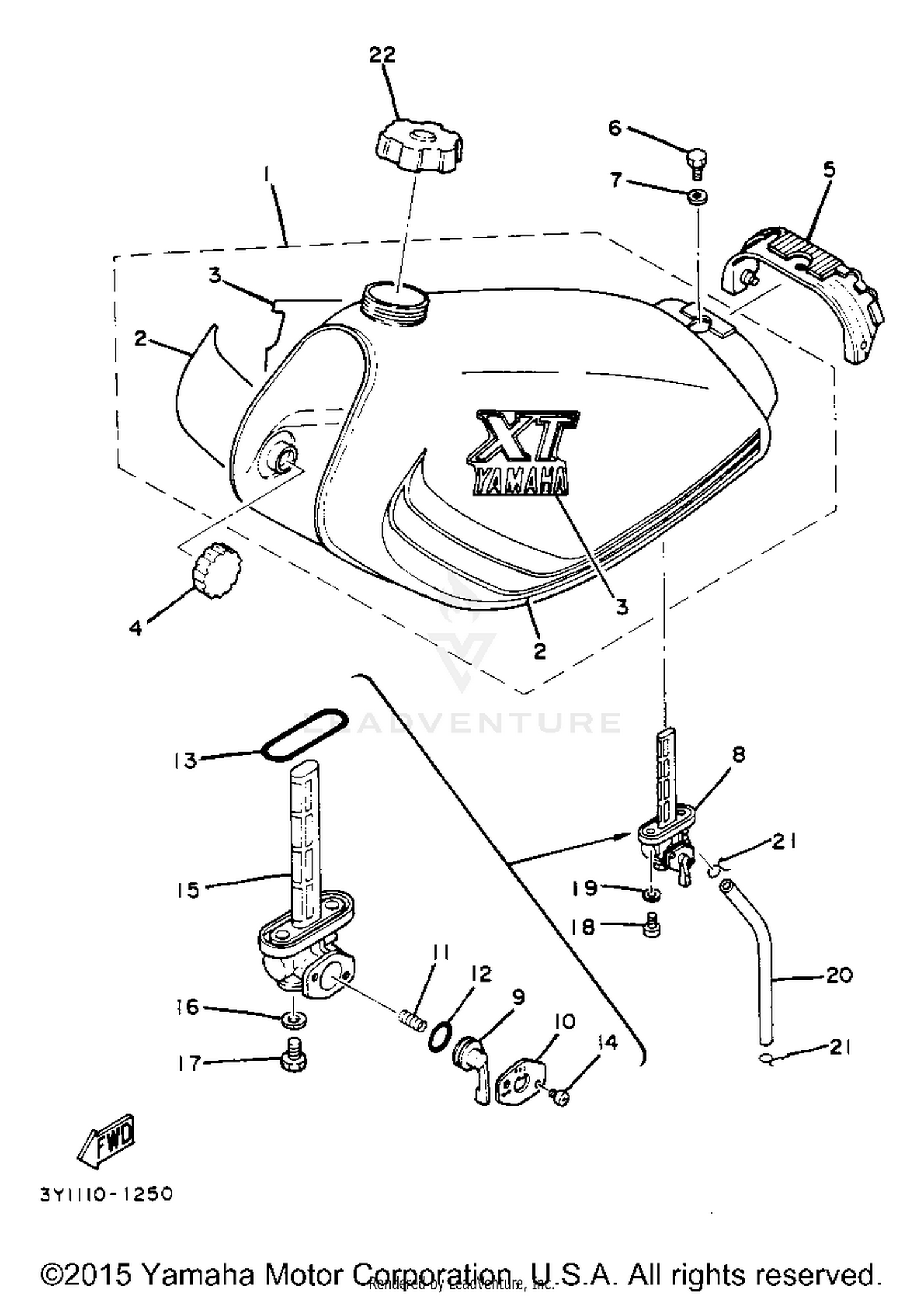

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3Y1-24110-00-X5
|
$375.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3Y1-24240-30-00
|
$57.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
3Y1-24161-20-00
|
$23.99 | ||
|
Unavailable |
|||
|
#4
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 2
3Y1-24182-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#6
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUEL COCK ASSY 1
15A-24500-03-00
Superseded by 23F-24500-20-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
UNAVAILABLE IN PRICE BOOK
3Y-12452-40-00
|
|||
|
Unavailable |
|||
|
#10
UNAVAILABLE IN PRICE BOOK
3Y-12452-50-00
|
|||
|
Unavailable |
|||
|
#11
SPRING
2W6-24529-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#12
GASKET
2N3-24528-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
2W6-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
NET, FILTER 1
3Y1-24514-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
2G2-24522-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, DRAIN
2G2-24543-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#18
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE (L110)
90445-10638-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP ASSEMBLY
3Y1-24610-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
