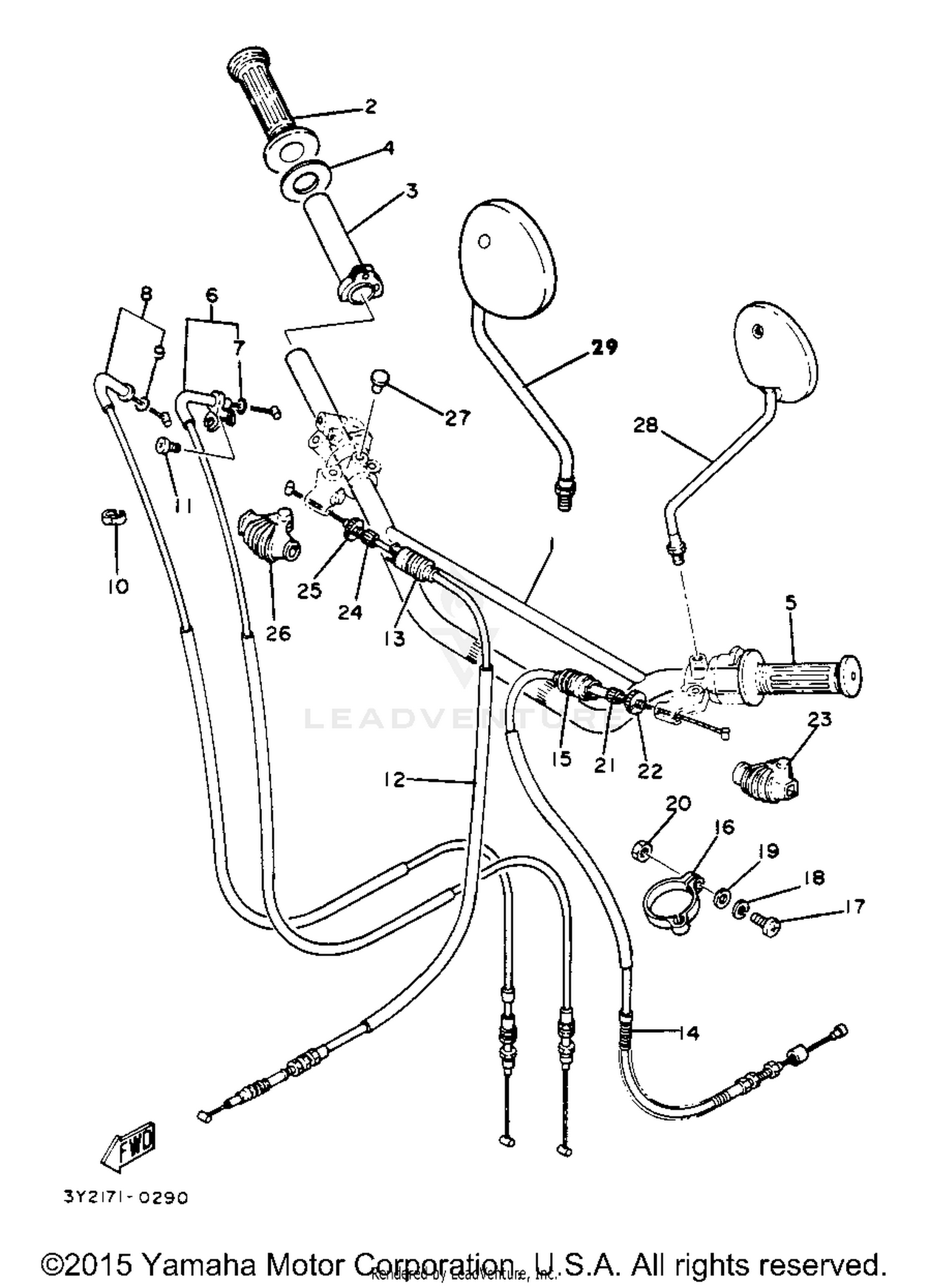

Handlebar Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3Y1-26111-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP RH (R.H.)
1A0-26242-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, THROTTLE GUIDE
3Y1-26243-01-00
Superseded by 1RF-26243-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
3Y1-26249-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP LH (L.H.)
1E6-26241-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE 1
3Y1-26311-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-08408-00
|
$2.45 | ||
|
Unavailable |
|||
|
#8
CABLE, THROTTLE 2 (3Y1-26312-00
53R-26312-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-08408-00
|
$2.45 | ||
|
Unavailable |
|||
|
#10
CLIP
90468-15009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98506-05008-00
Superseded by 98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE, BRAKE
3Y1-26341-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT, CABLE
1E6-26342-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE, CLUTCH
3Y0-26335-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT, CABLE
1E6-26342-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#16
BAND
3Y1-26397-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Unavailable |
|||
|
#26
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#27
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
MIRROR ASSY., 2
5Y1-26290-10-00
Superseded by 5Y1-26290-11-00
|
$72.99 | ||
|
Unavailable |
|||
|
#29
BACK MIRROR ASSY (R.H)
3Y1-26290-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
