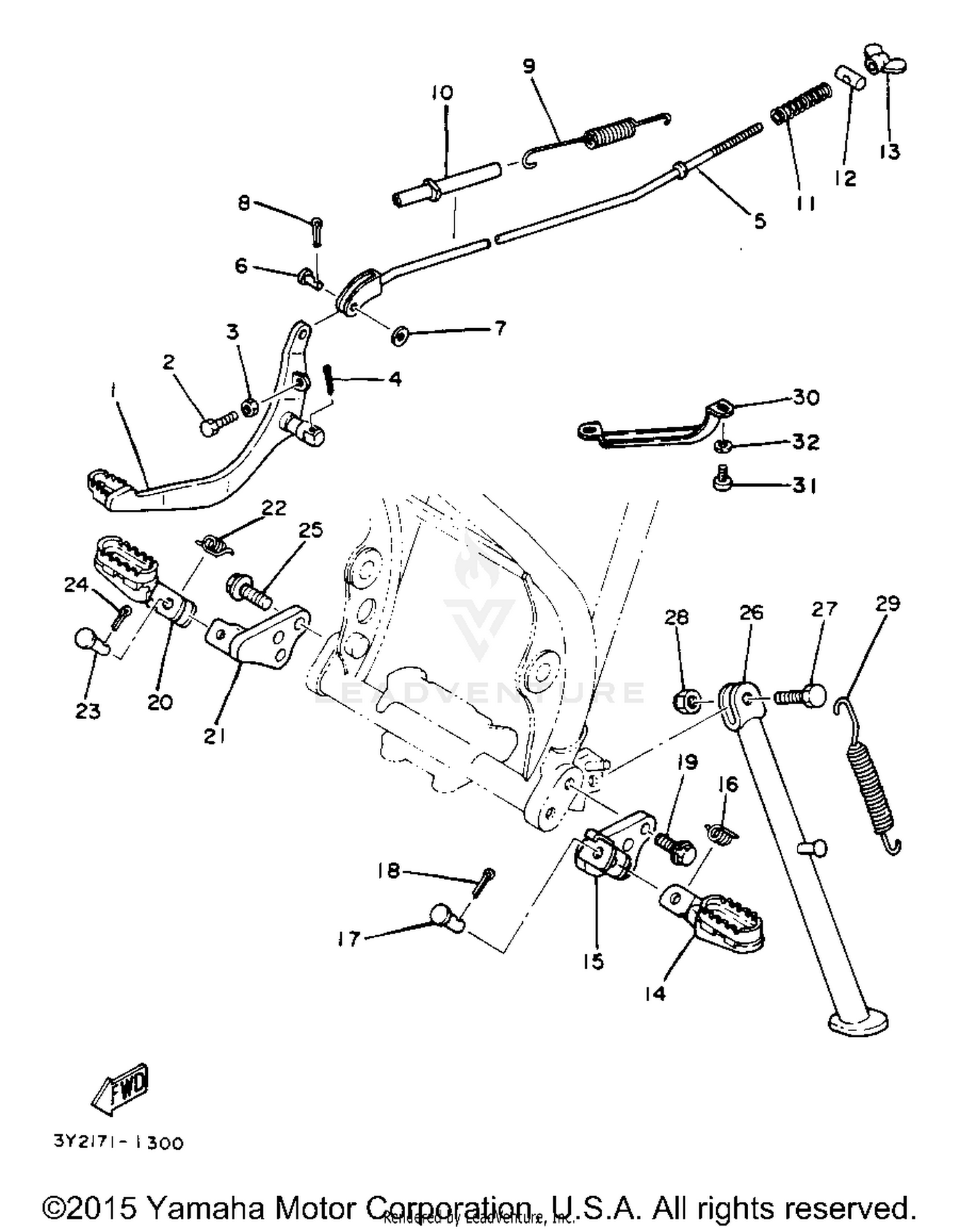

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE (3Y1-27211-00-90)
3Y3-27211-00-90
|
$38.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90101-06478-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, COTTER
91401-30020-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, BRAKE
3Y1-27231-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#6
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-18289-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER
1M1-27244-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST 1
3Y1-27411-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#15
BRACKET, FOOTREST 1
3Y1-27412-00-R4
|
$36.99 | ||
|
Unavailable |
|||
|
#16
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
91701-08038-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOTREST 2
3Y1-27421-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#21
BRACKET, FOOTREST 2
3Y1-27422-00-R4
|
$38.99 | ||
|
Unavailable |
|||
|
#22
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
PIN
91701-08038-00
|
$3.90 | ||
|
Unavailable |
|||
|
#24
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
STAND, SIDE
3Y1-27311-10-33
|
$37.99 | ||
|
Unavailable |
|||
|
#27
BOLT
90109-10635-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GUIDE LEAD WIRE
3Y1-27371-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
