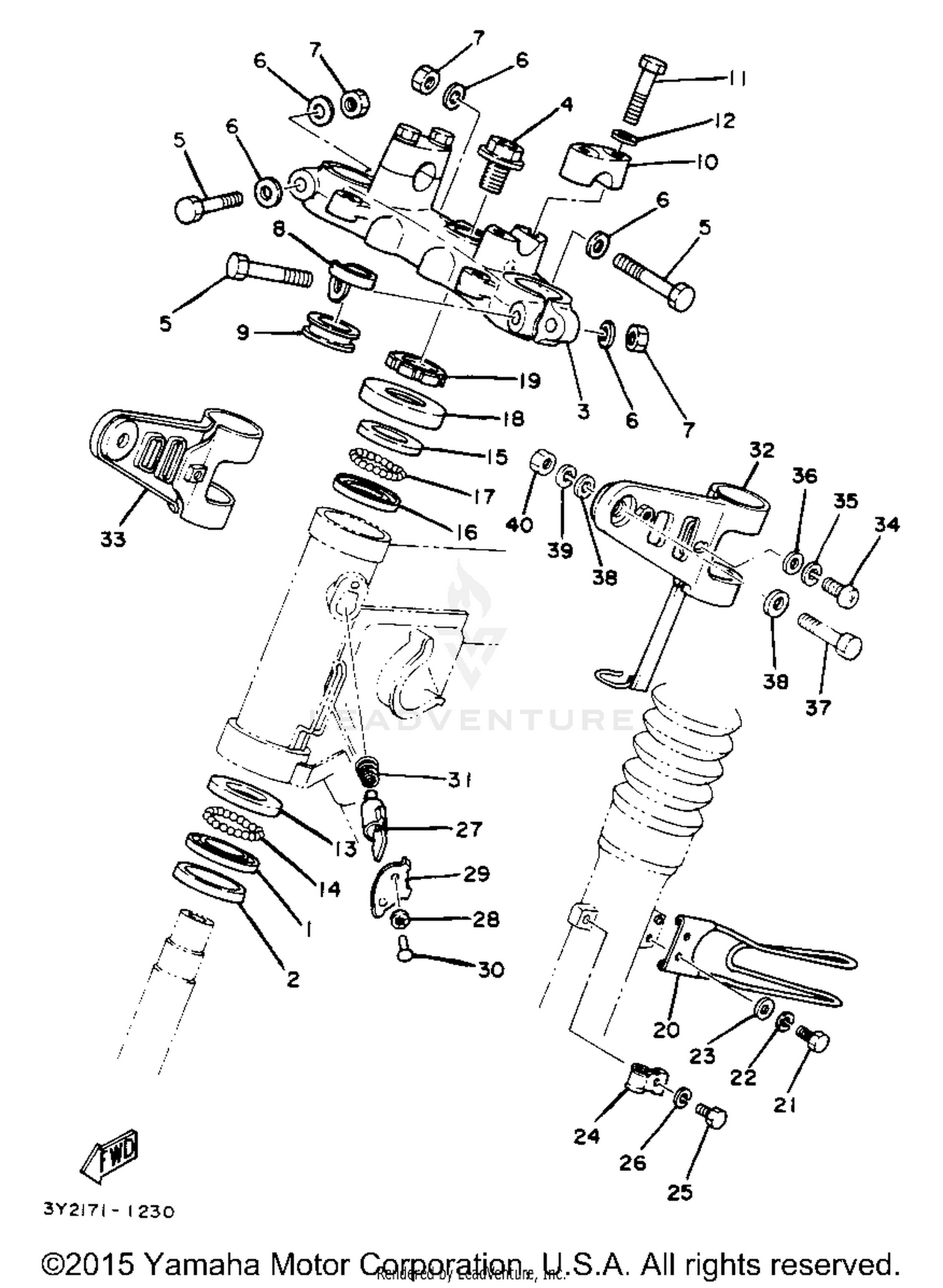

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CROWN, HANDLE
3Y1-23435-00-98
|
$116.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
90105-14102-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (661)
97313-08055-00
Superseded by 97013-08055-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, CABLE
3Y1-23317-A0-00
|
$3.57 | ||
|
Unavailable |
|||
|
#9
GUIDE, CABLE
1W1-23389-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, HANDLE UPPER
1E6-23441-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, DOME HEAD
90106-08032-00
|
$2.55 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#13
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, BALL RACE 2
10V-23416-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, CABLE 1
2N6-23318-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#21
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, CABLE 2
3Y1-23319-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
STEERING LOCK ASSY
2A6-23408-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, CONICAL SPRING
90208-04029-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP, HANDLE LOCK
3DM-23484-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
RIVET
90269-04003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, CONICAL
90502-09024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
STAY, HEADLIGHT 1
3Y1-84118-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#33
STAY, HEADLIGHT 2
3Y1-84119-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#34
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, HEXAGON
97313-08040-00
Superseded by 97014-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
