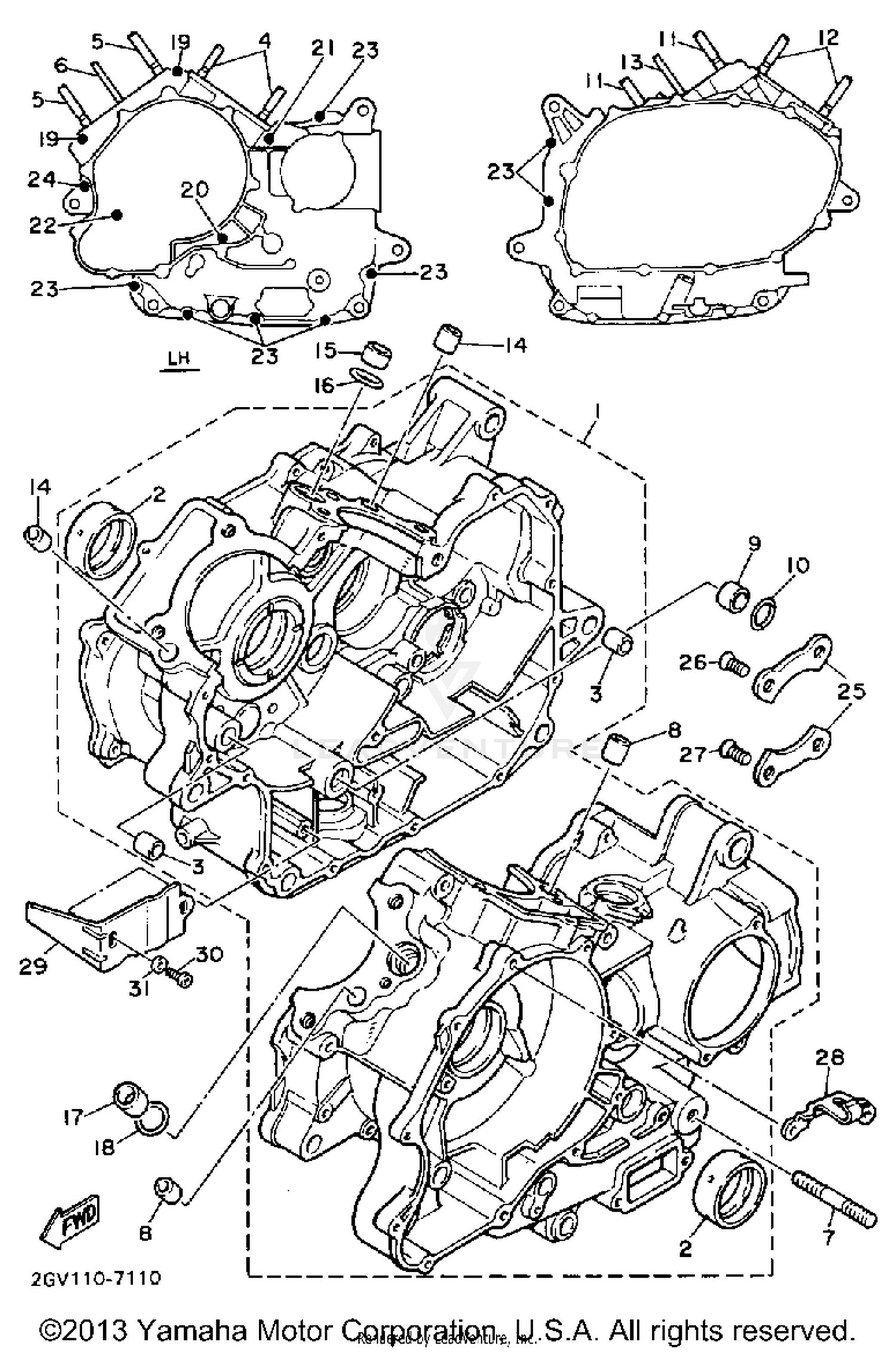

1990 Yamaha XV535A CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
2GV-15100-00-00
Superseded by 2GV-15100-04-00
|
$883.99 | ||
|
Unavailable |
|||
|
#2
PLANE BEARING, CRANKSHAFT 1
22U-11416-90-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
22U-11416-80-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
91810-17016-00
Superseded by 91815-16017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
90116-10406-00
|
$17.99 | ||
|
Unavailable |
|||
|
#5
BOLT, STUD
90116-10405-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD
90116-08404-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
95611-10680-00
Superseded by 95617-10680-00
|
$10.49 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
99530-14016-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-16547-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-18322-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-10406-00
|
$17.99 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD
90116-10405-00
|
$15.99 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD
90116-08404-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
PIN, DOWEL
99530-14016-00
|
$3.60 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-16547-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
O-RING
93210-18322-00
|
$4.95 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-16547-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-18322-00
|
$4.95 | ||
|
Unavailable |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91311-08060-00
Superseded by 91314-08060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
91311-08080-00
Superseded by 90110-08003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
91311-08100-00
|
$4.36 | ||
|
Unavailable |
|||
|
#22
BOLT
91311-06095-00
Superseded by 91314-06095-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91311-06045-00
Superseded by 91314-06045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
91311-06055-00
Superseded by 91314-06055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, BEARING COVER
11H-15383-01-00
Superseded by 11H-15383-02-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, COUNTERSUNK
90151-08022-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
90149-08152-00
Superseded by 90149-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, CLUTCH CABLE
22U-15441-01-00
Superseded by 22U-15441-02-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, BUFFLE 1
22U-15123-00-00
|
$4.30 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
